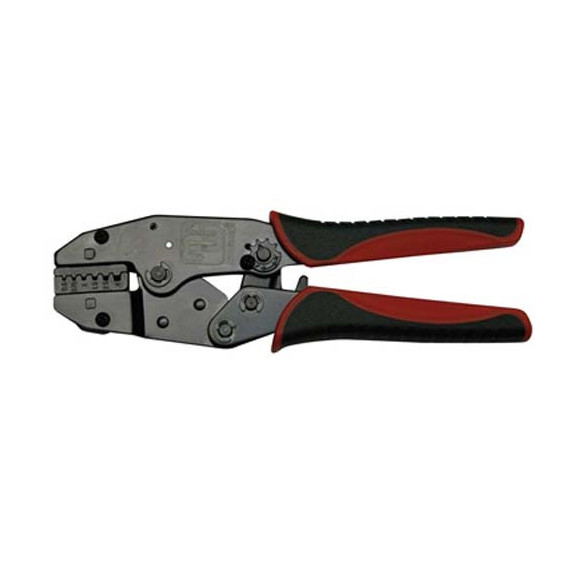

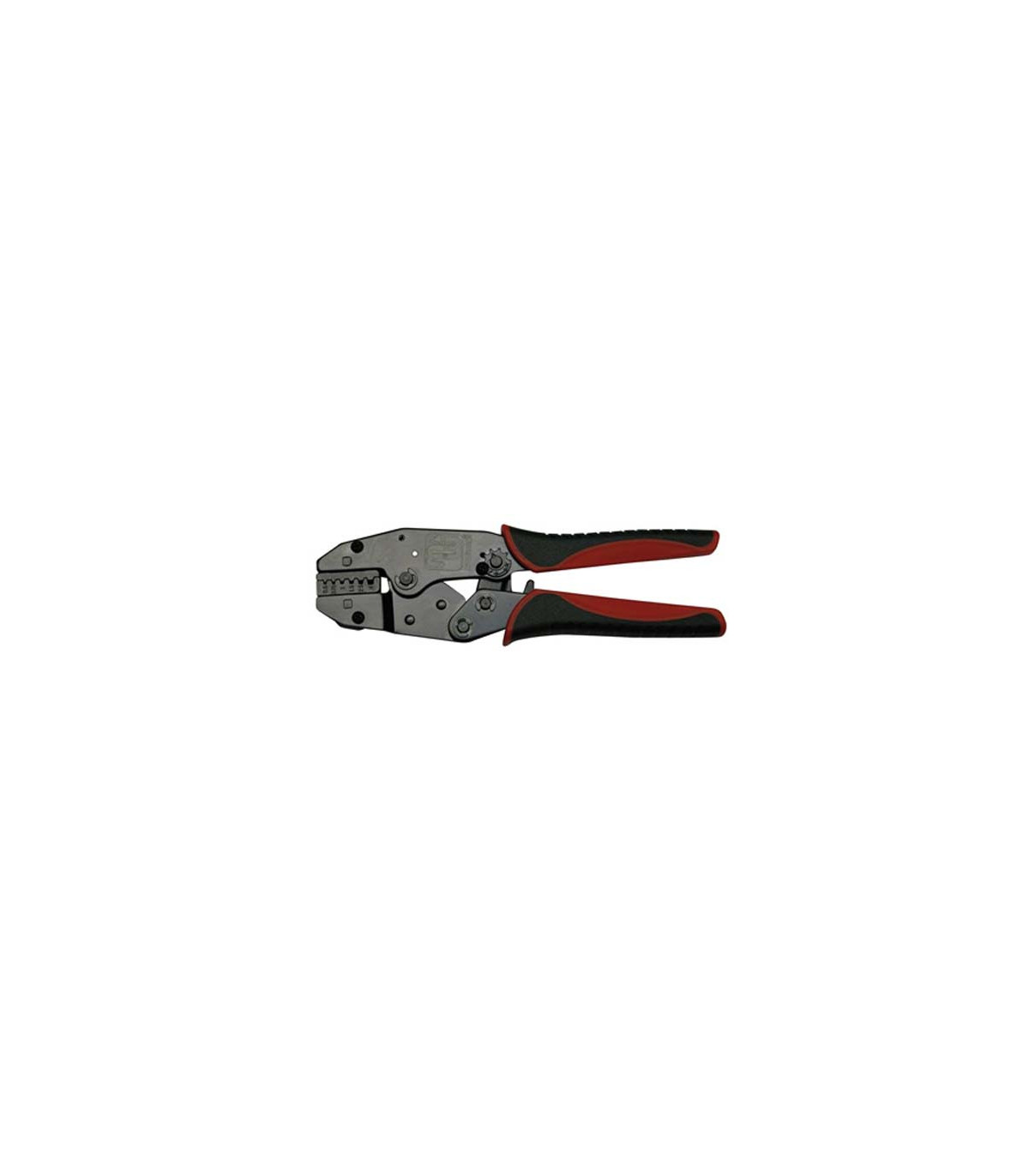

Automatic terminal crimping pliers VES1200 METALWORKS

Crimping Pliers for Automatic Terminals | METALWORKS. Make robust connections in terminals without insulation. These professional crimping pliers feature a ratchet mechanism and specific jaws for "indentation" type crimping on uninsulated copper terminals.

For crimping automatic terminals for insulated and non-insulated ADENER sleeves 12 - 22 mm. With PVC coated handle.

Length 200 mm
ADENER Capacity 22 - 20 - 18 - 16 - 14 - 12 AWG
DIN Capacity 0.5 - 0.75 - 1 - 1.5 - 2.5 - 4 mm2

FEATURES

The precise tool for high conductivity crimping.

• Indentation Crimping (Punching): The jaws are designed to perform punching crimping, which concentrates the force on a specific point of the terminal. This method is ideal for uninsulated terminals, as it ensures excellent electrical contact and high mechanical strength.

• Ratchet System: The ratchet mechanism ensures that the optimal crimping force is applied in each operation, producing consistent and reliable connections.

• Special Steel Jaws: Made from high-strength steel to withstand the high pressures of indentation crimping without deforming.

• High Leverage Handles: The ergonomic handles are designed to multiply the operator's force, making it easier to crimp large section terminals.

SPECIFICATIONS

Length 200 mm
ADENER Capacity 22 - 20 - 18 - 16 - 14 - 12 AWG
DIN Capacity 0.5 - 0.75 - 1 - 1.5 - 2.5 - 4 mm2

APPLICATIONS

• Power connections in automotive installations (battery cables, alternators).

• Mounting terminals on ground and power cables in industrial machinery.

• Solar energy installations and battery systems.

• General electricity for joints that require maximum reliability and conductivity.
