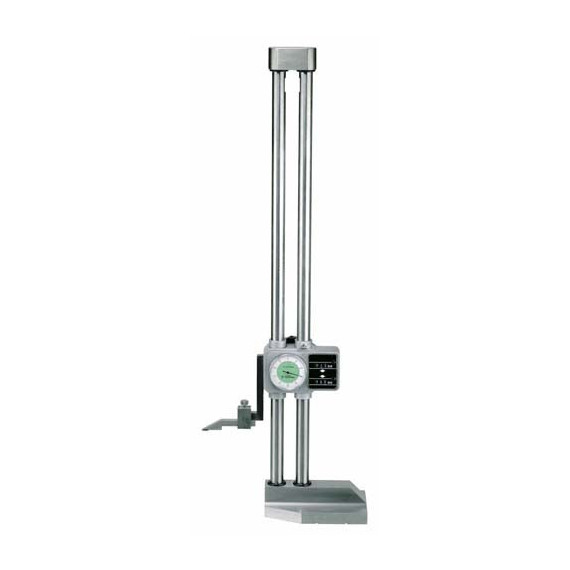

Height gauge with indicator clock LIMIT.

Height gauge with LIMIT dial indicator. The height gauge with LIMIT dial indicator allows readings in whole millimeters and in 0.01 mm on the comparator. It features a dual counter, one for addition and one for subtraction, with individual reset capability. Its height adjustment is flexible via a knob on the back and has a hard metal measuring tip.

It complies with DIN 862 and has an analog design. With a marking height of 500 mm and base dimensions of 150×100 mm, it is ideal for precise and reliable measurements.

FEATURES

• The measurement value is read in whole millimeters on the counter and in 0.01 mm on the comparator.
• 1 turn of the needle = 1 mm.
• Dual counter, one for addition and one for subtraction, with the possibility of individual reset in an optional position.
• Flexible height adjustment via knob on the back.
• Hard metal measuring tip.
• DIN 862.

TECHNICAL DATA

ETIM class code: EC004392

Units of measurement: mm

Design: Analog

Marking height: 500 mm

Base dimensions: 150×100 mm

STANDARDS

- DIN 862: This standard ensures that measuring tools are accurate and reliable, which is essential in various industrial and construction applications. Rules and tapes that comply with this standard must have clear and legible graduations, as well as a durable material to ensure longevity.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The height gauge with LIMIT dial indicator is suitable for:

• Mechanical engineering
• Metallurgy
• Carpentry
• Parts manufacturing
• Quality control
• Prototype design
• Electronics
