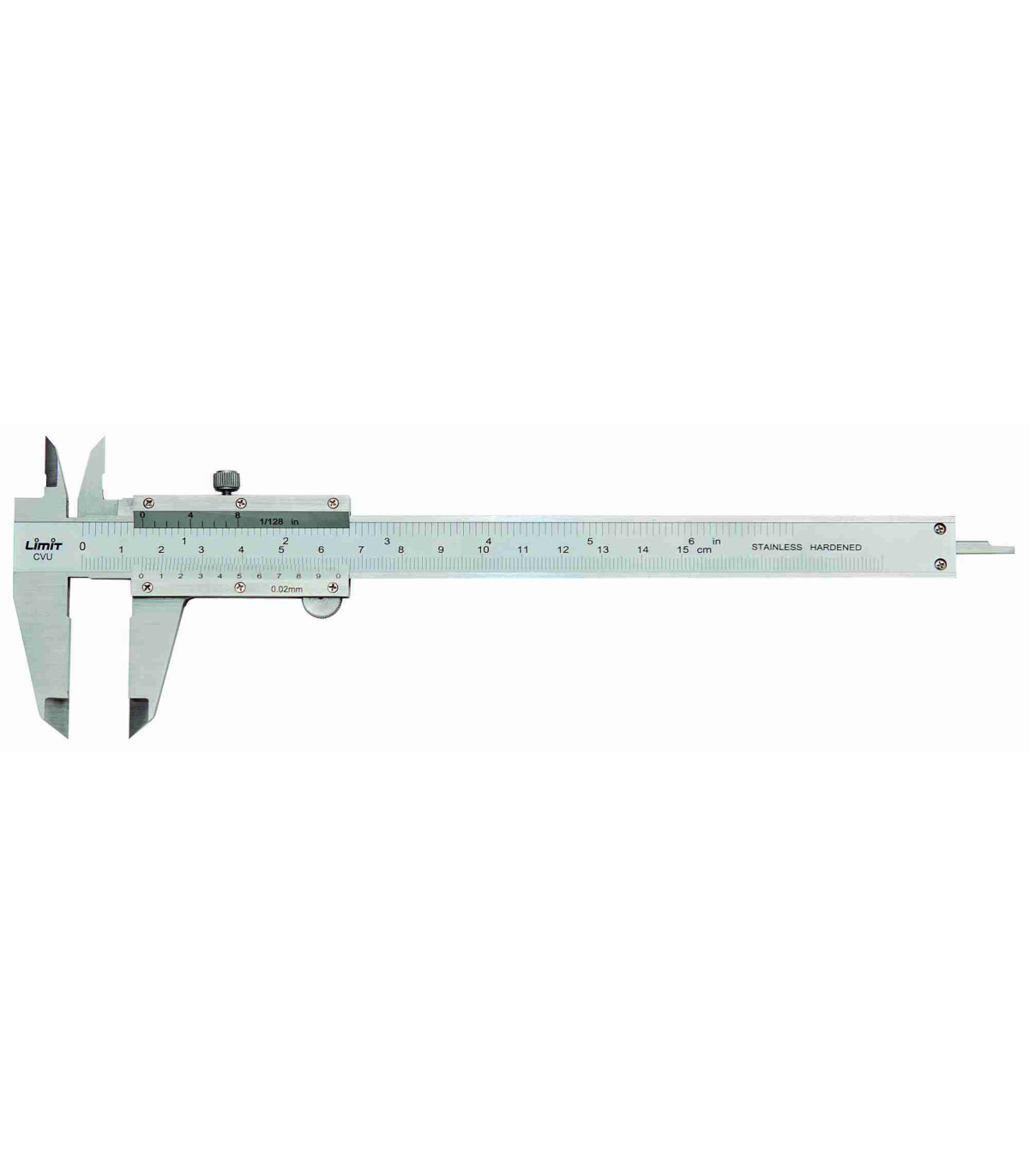

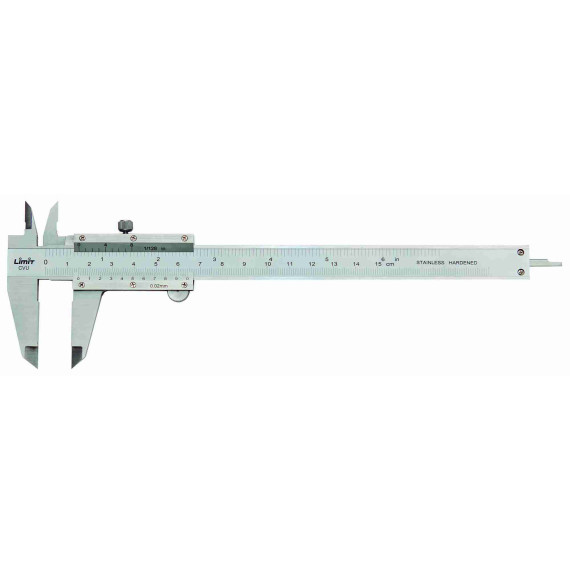

High precision analog caliper CVU LIMIT

High precision analog caliper CVU LIMIT. The CVU LIMIT analog caliper offers high precision with smooth jaw movements, stainless steel jaws, and metric and imperial graduations. It includes versatile functions and a depth gauge, all manufactured according to DIN 862. It comes in a case with an inspection certificate, ensuring quality and accuracy in every measurement.

FEATURES

• Very smooth and uniform jaw movements thanks to the multi-stage grinding of its components.
• Stainless steel measuring jaws, tempered and precisely ground, with a matte chrome scale.
• Jaw thickness of 3.5 to 4 mm providing great stability.
• Metric and imperial graduations.
• Vernier scale of 1/50 mm (0.02 mm) to 1/128 inch (0.0078'') with a scale length of 48 mm.
• 4 functions.
• Equipped with a rectangular depth gauge and tips for internal measurements.
• Manufactured according to DIN 862.
• Supplied in a case with an inspection certificate.

TECHNICAL DATA

Measurement units: mm, inches

Inaccuracy: ±0.02 mm / ±0.03 mm / ±0.04 mm

Measuring length: 150 mm / 200 mm / 300 mm

Internal leg length: 21 mm / 24 mm / 28 mm

External leg length: 40 mm / 50 mm / 60 mm

Depth gauge: Rectangular

Graduation measure: 0.02 mm

Leg thickness: 3.5 mm

Lock type: Locking screw

Design: Analog

STANDARDS

- DIN 862: This standard ensures that measuring tools are accurate and reliable, which is essential in various industrial and construction applications. Rules and tapes that comply with this standard must have a clear and legible graduation, as well as a durable material to ensure longevity.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The high precision analog caliper CVU LIMIT is suitable for:

• Mechanical engineering
• Metallurgy
• Carpentry
• Parts manufacturing
• Quality control
• Prototype design
• Electronics
