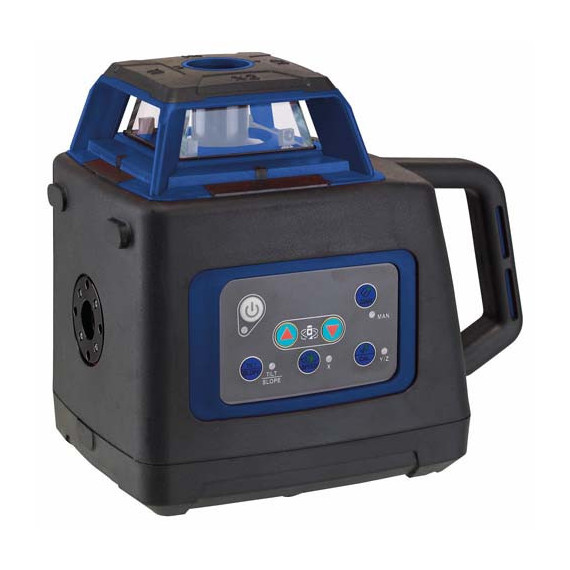

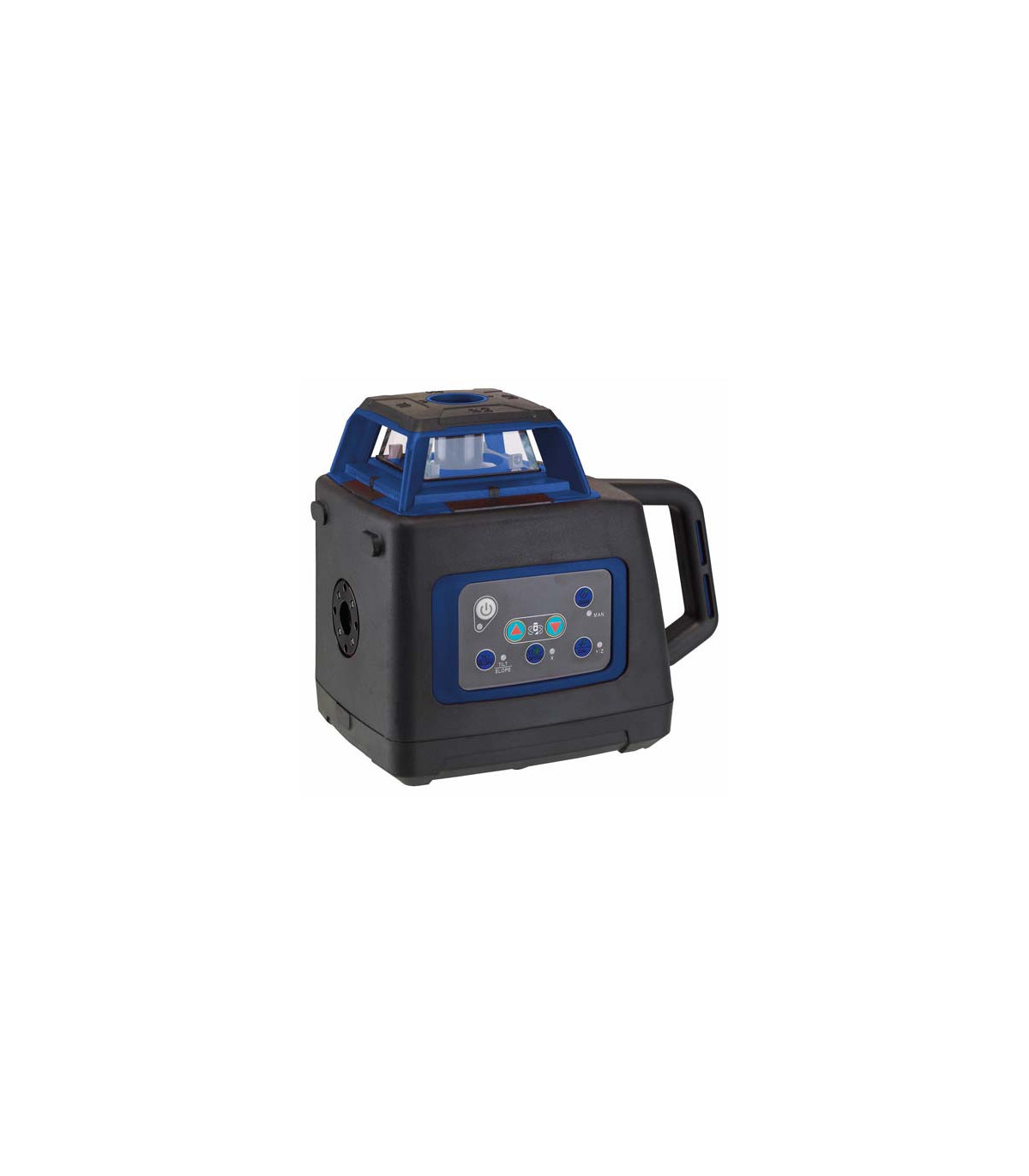

Rotary laser level for indoor use 1210 HV LIMIT

Rotary laser level for interiors 1210 HV LIMIT. The 1210 HV LIMIT rotary laser level is ideal for indoor use, featuring a red rotating laser that self-levels automatically in both horizontal and vertical positions. It offers manual tilt adjustment and adjustable scanning mode. Its remote control allows you to modify tilt, rotation speed, and scanning area up to 30 meters. It includes a laser detector with a dual window, screen illumination, and calibration according to the manual. With an IP54 protection rating, it comes in a hard case with a rechargeable battery, charger, and manual, ensuring precision and convenience in every project.

FEATURES

• Red rotating laser ideal for indoor use.
• Automatic self-leveling in horizontal and vertical planes with manual tilt adjustment.
• Scanning mode with adjustable scanning angle.
• Tilt function that allows the instrument to be manually reset after being moved from its initial level.
• The remote control allows you to adjust tilt, rotation speed, scanning angle, and the scanning area in both directions.
• Laser detector with dual indication window, screen illumination, adjustable tone, and fine or coarse precision.
• The instrument can be calibrated according to the user manual.
• Class 2M laser diode, 1 mW 635 nm.
• IP54 protection rating.
• The remote control has a range of 30 meters.
• Supplied in a hard plastic case with remote control, laser receiver with mount, reflective target plate, rechargeable battery with charger, and user manual.

TECHNICAL DATA

IP protection class: IP54

Remote control: Yes

Vertical inaccuracy: ±1.5 mm/10 m

Horizontal inaccuracy: ±1.0 mm/10 m

Battery size: Battery pack

Leveling: horizontal, vertical

Minimum operating temperature: -10°C

Maximum operating temperature: 40°C

Working range diameter: 200m

Leveling range: ±5°

Operating time: 24h

ETIM class code: EC000641

Rotation speed: 0R_MIN, 300R_MIN, 600R_MIN

Manufacturer description: 1210HV

Width: 210 mm

Height: 130 mm

Depth: 175 mm

Weight: 2 kg

STANDARDS

- IP54: IP54 is a classification code that indicates the protection of a device. "IP" stands for "Ingress Protection." The "5" indicates protection against dust and the "4" against splashes of water.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 1210 HV LIMIT rotary laser level is suitable for:

• Ceiling and wall installation
• Electrical work
• Plumbing
• Metal structures
• Interior design
