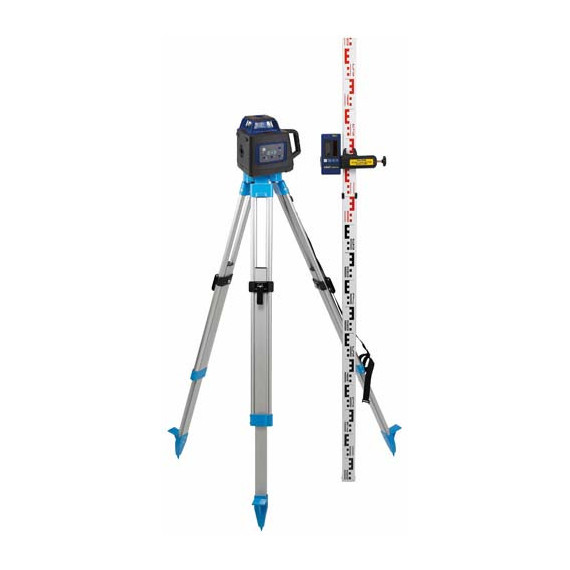

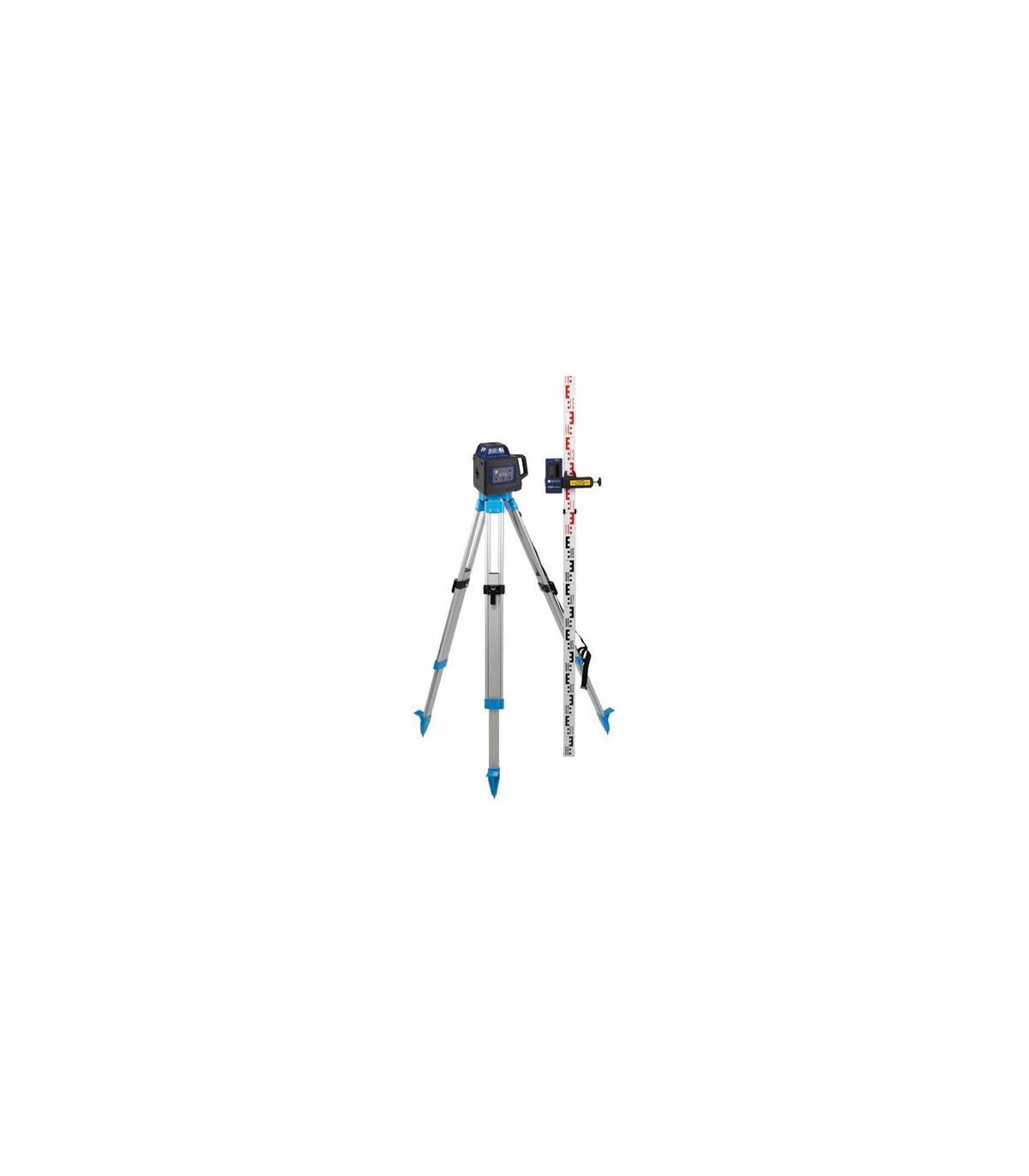

Rotary Laser Set 1210 HV 200 m LIMIT

1210 HV LIMIT Rotary Laser Set. The 1210 HV LIMIT Rotary Laser Set is ideal for construction, electrical installations, and carpentry. With a range of 200 m and an accuracy of ±1.0 mm/10m, it includes a tripod, red glasses, and a remote control. Its rechargeable battery ensures 24 hours of operation, while its IP54 design protects it from dust and splashes. Perfect for ensuring precise alignments in any project!

FEATURES

• 1210 rotary laser (198640104)
• Laser receiver with mount
• Remote control
• Rechargeable battery with charger
• Wall mount/floor plate
• Reflector target
• Red glasses
• Tripod (178680104)
• Level rod (178670105)

TECHNICAL DATA

Working diameter 200 m

Horizontal accuracy ± 1.0 mm/10m

Vertical accuracy ± 1.5 mm/10m

Self-leveling range ±5°

Rotation speed 0 - 300 - 600 rpm

Remote control range 30 m

Protection class IP54

Operating time 24 hours

Operating temperature -10 - +40°C

Dimensions 130 x 210 x 175 mm

Net weight 2 kg

STANDARDS

- IP54: IP54 is a classification code that indicates the protection of a device. "IP" stands for "Ingress Protection." The "5" indicates protection against dust and the "4" against splashes of water.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The 1210 HV LIMIT Rotary Laser Set is suitable for:

• Construction: To establish levels for foundations, walls, ceilings, and other structural elements.
• Electrical installations and plumbing: Facilitates the alignment of pipes and cables throughout a space.
• Carpentry: Useful for ensuring that wooden structures are properly aligned.
