Column drill and envelope OPTIdrill DQ 22 of 400V 3Ph OPTIMUM

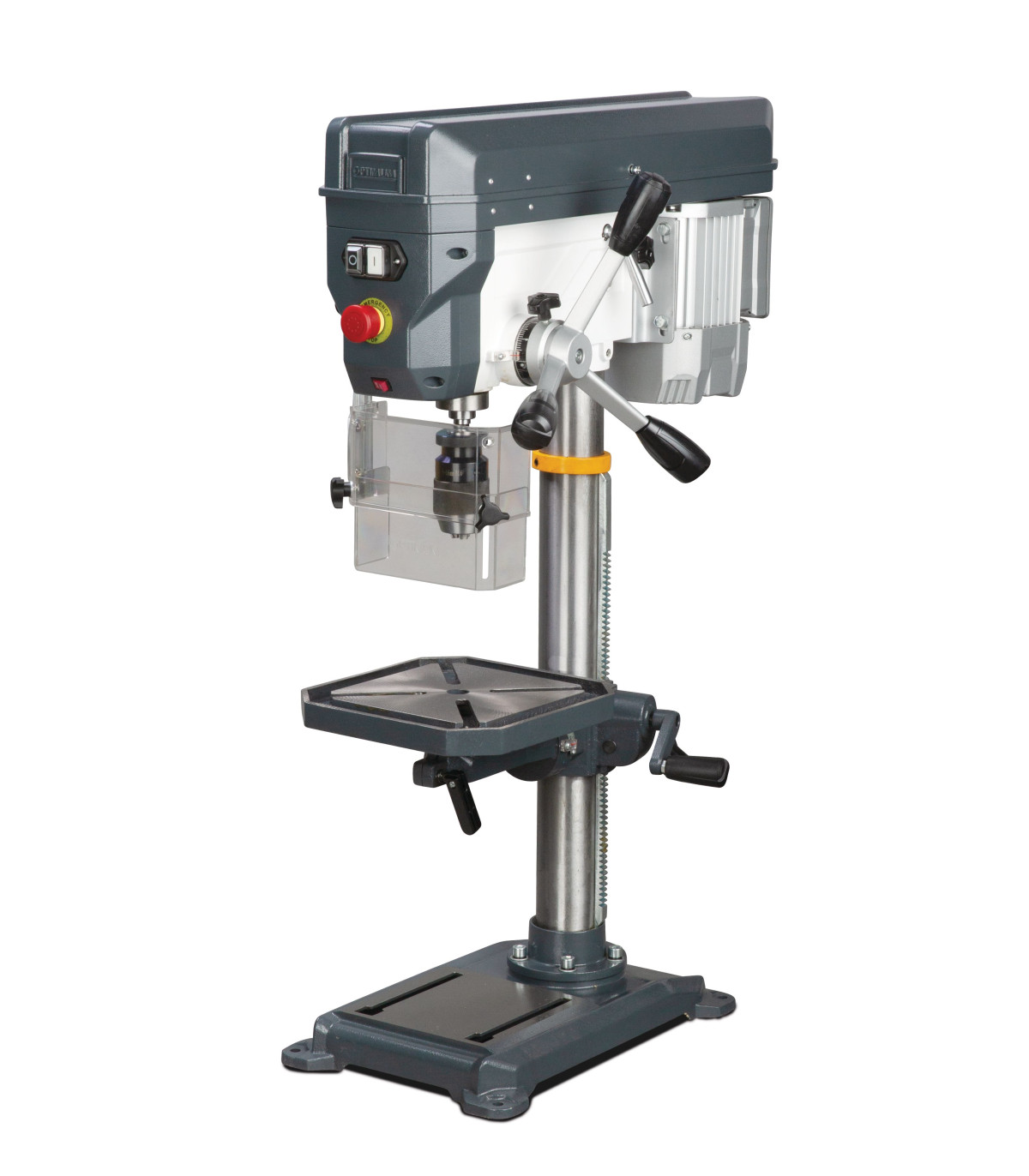

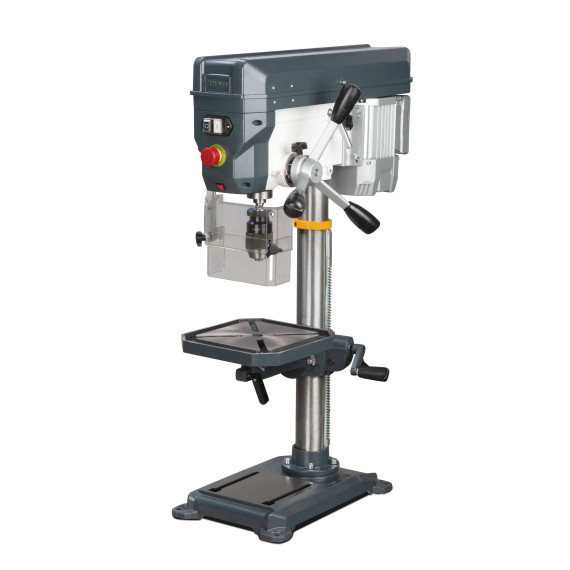

Column drill and envelope OPTIdrill DQ 22 of 400V 3Ph OPTIMUM. The OPTIdrill DQ 22 column drill of 400V 3Ph offers outstanding features such as a safety system, tilt and swivel table, and concentricity precision less than 0.03 mm, ideal for demanding jobs.

CHARACTERISTICS

• Independent emergency stop switch
• Drill depth measurement scale
• Precisely stable and machined drilling table, with T-slots running on diagonal and circumferential cooling water channel
• Inclinable drilling table ± 45° and 360° rotating
• Single-part pressure cast aluminum pen lever with soft grip handles
• Drilled with precision spindle
• 24 V DC voltage electric system
• Guaranteed concentricity accuracy of less than 0.03 mm measured in drilling sleeve
• Drilling screw with preprecision ball bearings
• High quality quick action portfolios
• Quality belt GATES
• Large base plate with T grooves, very cornered in the back
• Large size protective mat with adjustable height
• Right/left rotation

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 70 mm
• Length approx. 700 mm
• Width/depth approx. 351 mm
• Height approx. 1006 mm
• Approximate weight. 41.7 kilograms

Drilling performance

• High-performance drilling steel (S235JR) 20 mm
• High performance steel for continuous drilling (S235JR) 16 millimeters

Drilling table

• Length of workspace 270 mm
• Workspace width 270 mm
• Type of slot in T diagonal
• Slot size in T 14 millimeters
• Number of slot in T 2
• Rotation 360°
• Anglo 45°
• Load capacity 15 kilos
• Maximum distance between the spindle and the drilling table 460 millimeters

Electrical data

• Departure from drive motor 0.55 kW
• Feed voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum range from spindle to machine base 639 millimeters
• Working area length 191 mm
• Work area width 187 millimetres

Speed range

• Speed range 300 - 2300 min ̄1
• Number of marches 12 steps

Husso

• Feature stroke 85 mm
• Spindle rail MK 2
• Alcanzar 169 millimetres
• VPE 1

COMPONENTS/EMBALAJE

Unit: you.

Packaging unit: 1

• Quick-acting drill rail 1 - 16 mm
• Cono Morse MK 2/B16
• T nuts

FOR WHAT WORKING TIME IS ADOPTED

The OPTIMUM column and envelope drill OPTIdrill DQ 22 of 400V 3Ph OPTIMUM is suitable for:

• Metallurgical Industry
• Carpentry Workshops
• Manufacture of Prototypes
• Industrial maintenance
• Automotive Industry
• Electrical industry
• Repair workshops
• Crafts

VIDEO

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized quality management standard. It helps organizations of all sizes and sectors to improve their performance, meet customer expectations and demonstrate their commitment to quality.

Its evaluation base includes:

Guidance towards customer requirements

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development and innovation

Risk management

ON OPTIMUM

The OPTIMUM metalworking machines are characterized by high quality standards. In addition to our own manufacturing operations, OPTIMUM trusts manufacturers that meet our requirements.
