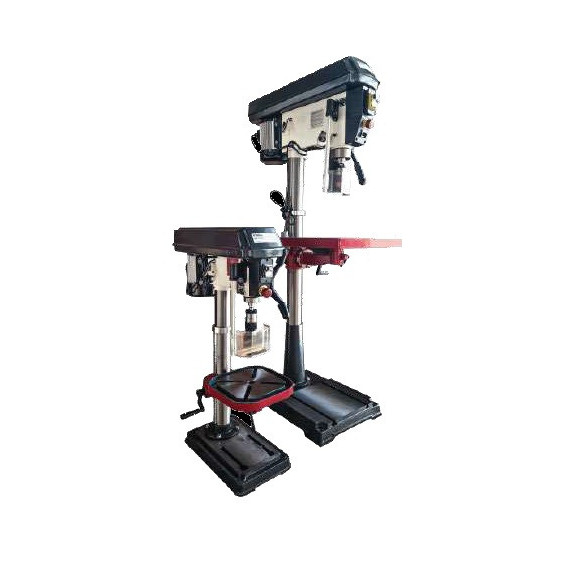

Column drill MW TP32400 - 400V

Bench drill with column and trapezoidal belt transmission.

FEATURES

• Model: MW TP32400
• Code: 33032400
• Speed: 150/2750 rpm
• Working surface: 520 - 1010 mm

BENEFITS

• Work table with T-slots.
• Table tilt ±45° and 360° adjustable.
• Aluminum pulley for smooth operation.

TECHNICAL DATA

• Dimensions (l x w x h): 860 x 610 x 1710 mm
• Distance from spindle to base: 1200 mm
• Distance from chuck to column: 254 mm
• Max. distance from spindle to base: 1200 mm
• Max. distance from spindle to table: 680 mm
• Spindle / cone: mt 4
• Table dimensions (l x w): 475 x 425
• Base T-slot dimensions: 16mm
• Table T-slot dimensions: 16 mm
• Rotating work table: 360º
• Tiltable work table: +45-45
• Net weight: 128 Kg
• Power: 1500 w
• Quill travel: 120 mm
• Morse cone type: mt4
• Voltage: 400 v
• Column diameter: 92 mm
