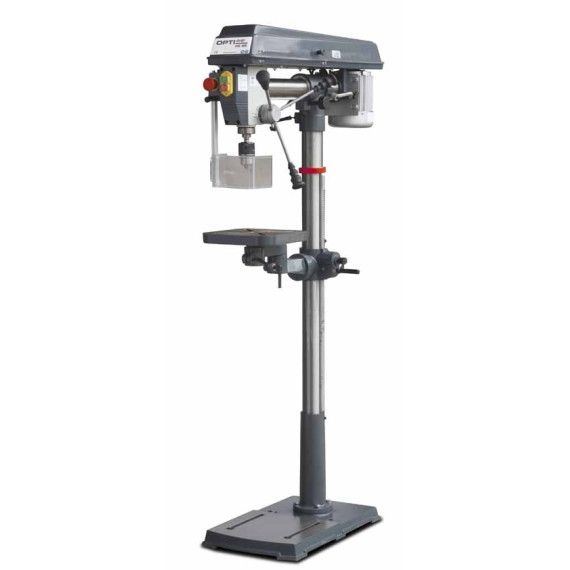

Bench and column radial drill with pulleys RB8S OPTIMUM

Radial drill press and column with pulleys RB8S OPTIMUM. Radial drill press and column with aluminum pulleys for lower noise levels.

INCLUDED ACCESSORIES Quick clamping chuck (1 - 16 mm), Morse cone MK 2.

• High-quality standard chuck
• Precision machining work table
• Quality toothed belt for better power transmission and lower power loss
• Drilling depth stop

TECHNICAL DATA

Dimensions and weights

Column diameter 70 millimeters

Approx. length 820 millimeters

Approx. width/depth 395 millimeters

Approx. height 1640 millimeters

Approx. weight 60 kg

Drilling performance

Steel drilling performance (S235JR) 16 millimeters

Continuous steel drilling performance (S235JR) 12 millimeters

Drilling table

Working space length 262 mm

Working space width 262 mm

T-slot size 14 millimeters

Angle 45 °

Maximum distance from spindle - drilling table 740 millimeters

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Machine base

Maximum distance from spindle - machine base 1250 mm

Working area length 600 millimeters

Working area width 350 millimeters

T-slot size of the machine base 14 millimeters

Motor(s)

Spindle motor drive output 0.75 kW

Number of gears of the spindle motor 1 Step

Speed range

Speed range 390 – 3000 min¯¹

Number of gears 5 Steps

Spindle

Stroke of the spindle 80 millimeters

Spindle chuck MK2

Reach from to 115 - 430 mm

VPE 1

FEATURES

• Sixfold spindle head
• User-friendly safety switch according to IP 54 with minimum voltage trigger, lockable emergency switch, right-left operation
• Easy operation from the front position
• Guaranteed concentricity <0.03 mm of the spindle unit, measured at the drilling spindle
• Spindle with precision ball bearing
• High-quality standard chuck
• Precision machining work table
• Quality toothed belt for better power transmission and lower power loss
• Drilling depth stop
• Long ergonomic lever handles with non-slip Softgrip
• Table height adjustment via a rack
• The reinforced steel column provides high stability during operation
• Rotating head of +/-45º
• The distance from the spindle to the column is adjustable thanks to the telescopic head
• Tiltable work table +/-45º

PACKAGING

Unit: pc(s).

Packaging unit: 1

Gear drill chuck (1-16 mm) B 16 Morse cone MK 2 - B 16

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
