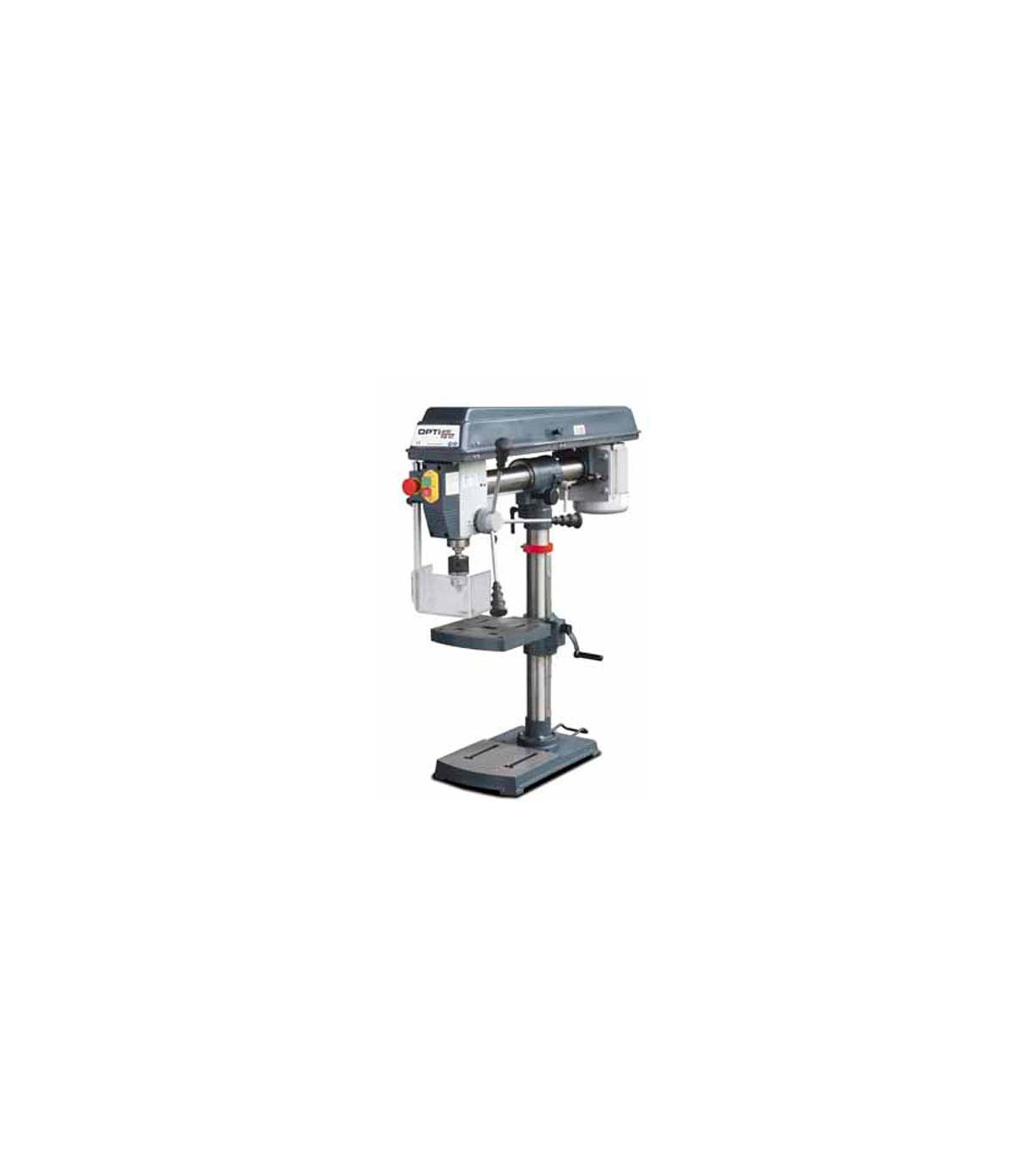

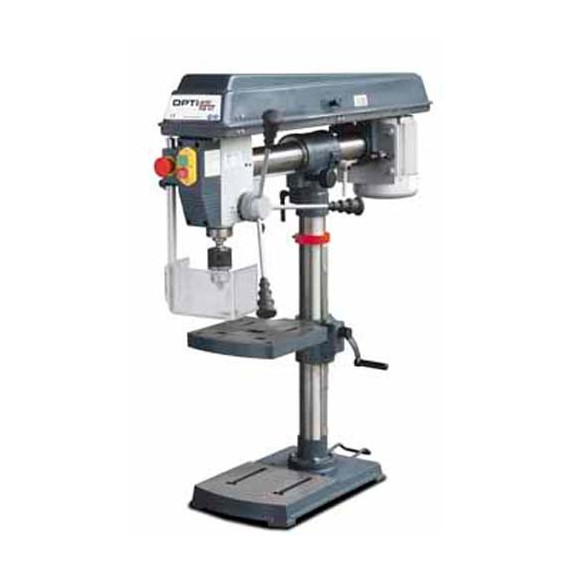

Table and column radial drill with pulleys RB6T OPTIMUM

Bench and column radial drill with RB6T OPTIMUM pulleys. The best power transmission through aluminum pulleys along with the high-quality GATES toothed V-belt.

The drill has guaranteed concentricity of the drilling spindle measured better than 0.03 mm in the drilling spindle sleeve.

Adjustable height drill chuck protection with micro switch for maximum user protection.

Spindle drill with precision ball bearings.

V-belt cover with safety switch.

Precision machined drilling table with mounting holes for expanded drilling table support.

Steel column for smooth operation and stability.

Solid and large base plate with T-slot nuts, heavily ribbed on the back.

Easy-to-use safety switch with IP 54 protection.

Separate emergency stop impact switch.

Depth stop.

OPTIMUM pinion drilling chucks in the standard delivery range.

Optimal price-performance ratio.

Stable value.

TECHNICAL DATA

Dimensions and weights

Column diameter 60 mm

Approx. length 820 millimeters

Approx. width/depth 335 mm

Approx. height 930 mm

Approx. weight 47 kg

Drilling performance

Steel drilling performance (S235JR) 16 millimeters

Continuous steel drilling performance (S235JR) 12 millimeters

Drilling table

Working space length 225 millimeters

Working space width 230 millimeters

T-slot size 14 millimeters

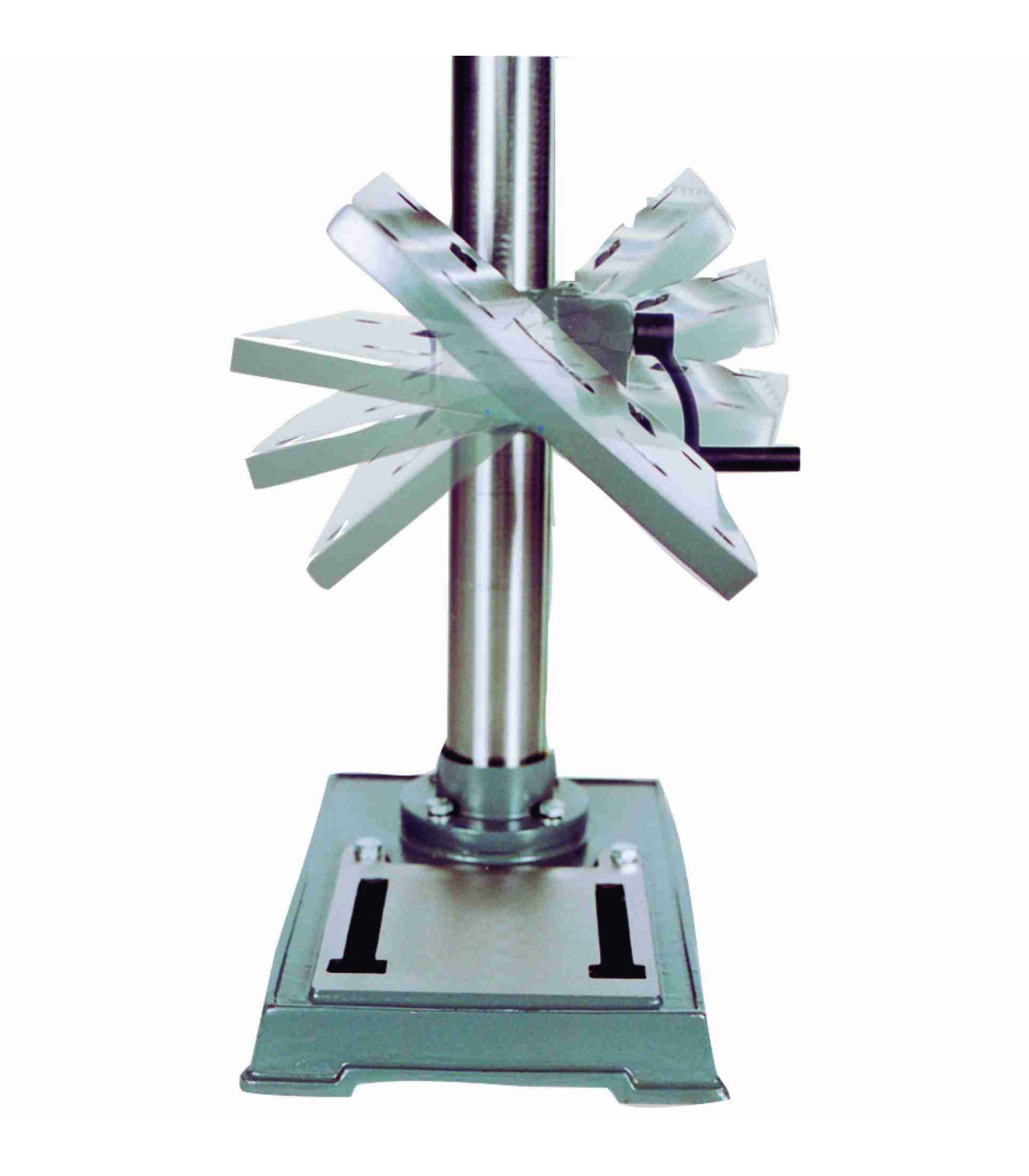

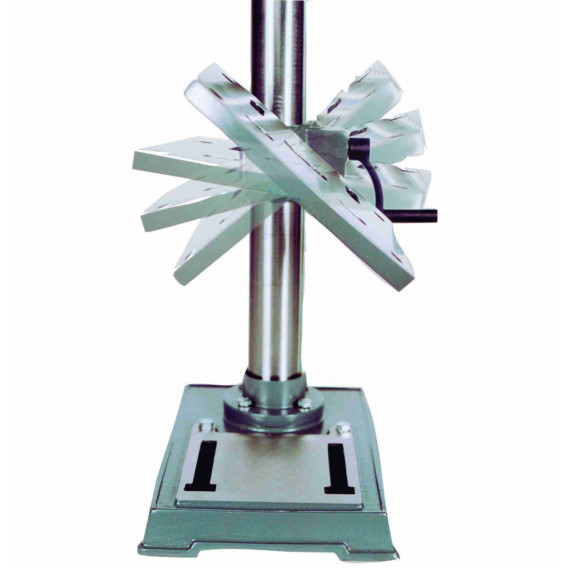

Angle 45 °

Maximum spindle - drilling table distance 380 millimeters

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Machine base

Maximum spindle - machine base distance 550 millimeters

Working area length 430 mm

Working area width 260 millimeters

T-slot size of the machine base 14 millimeters

Motor(s)

Spindle motor drive output 0.75 kW

Number of gears of the spindle motor 1 Step

Speed range

Speed range 390 – 3000 min¯¹

Number of gears 5 Steps

Spindle

Stroke 80 millimeters

Spindle chuck MK2

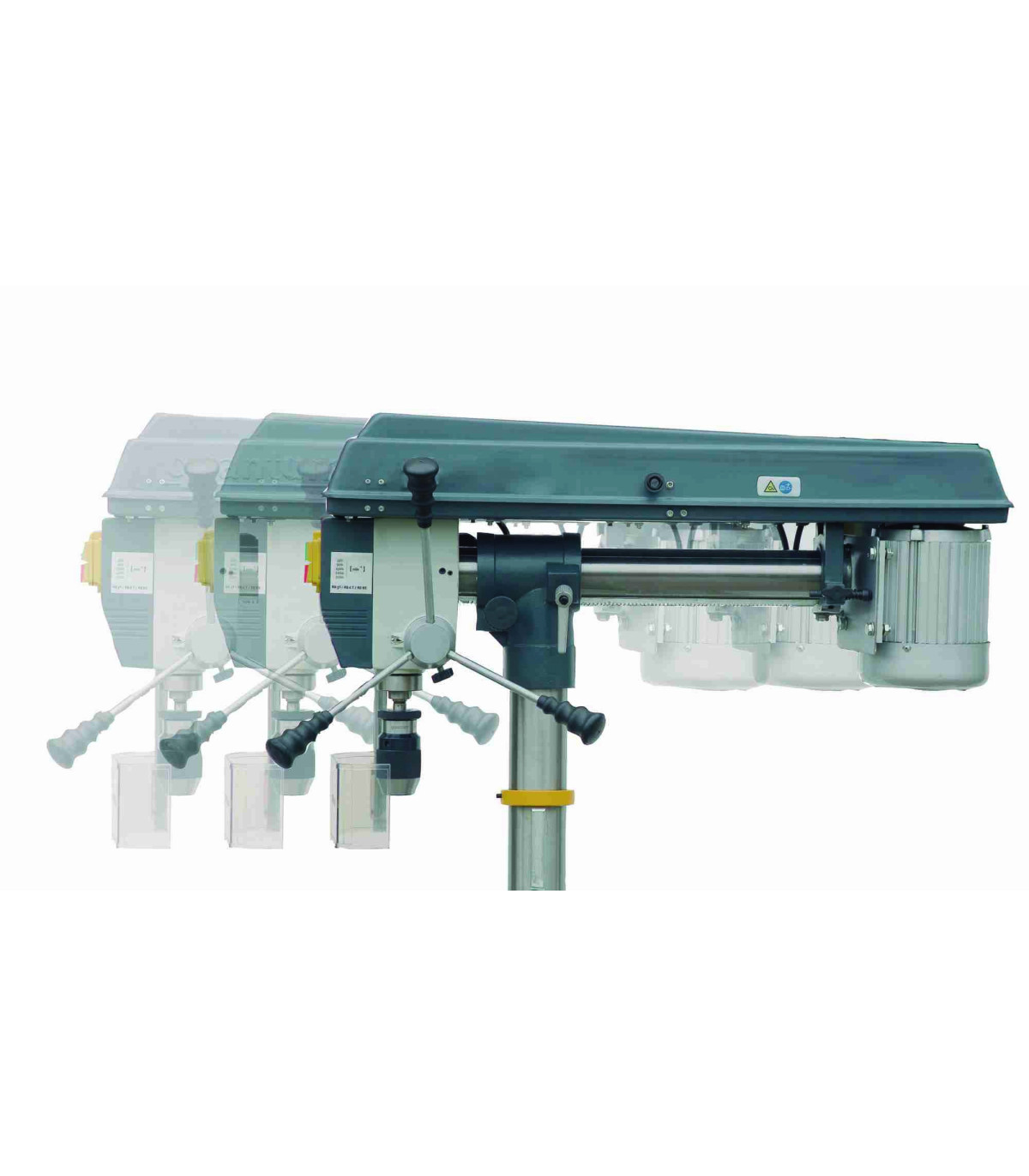

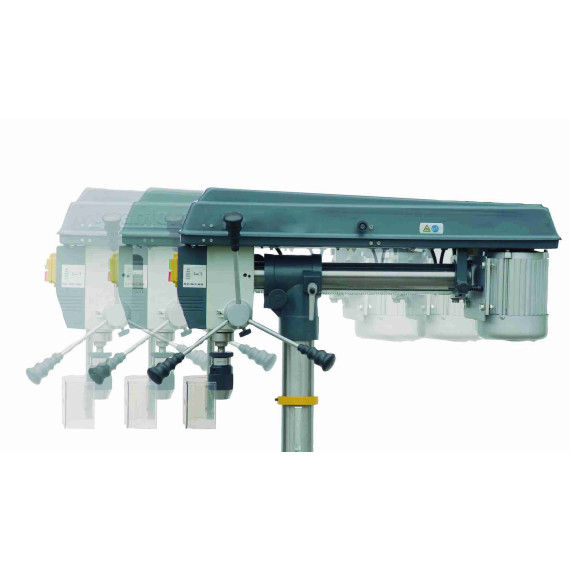

Range from to 115 - 430 mm

VPE 1
