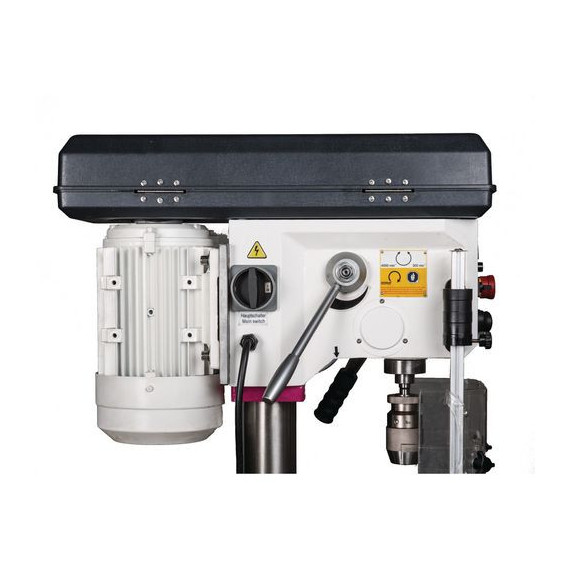

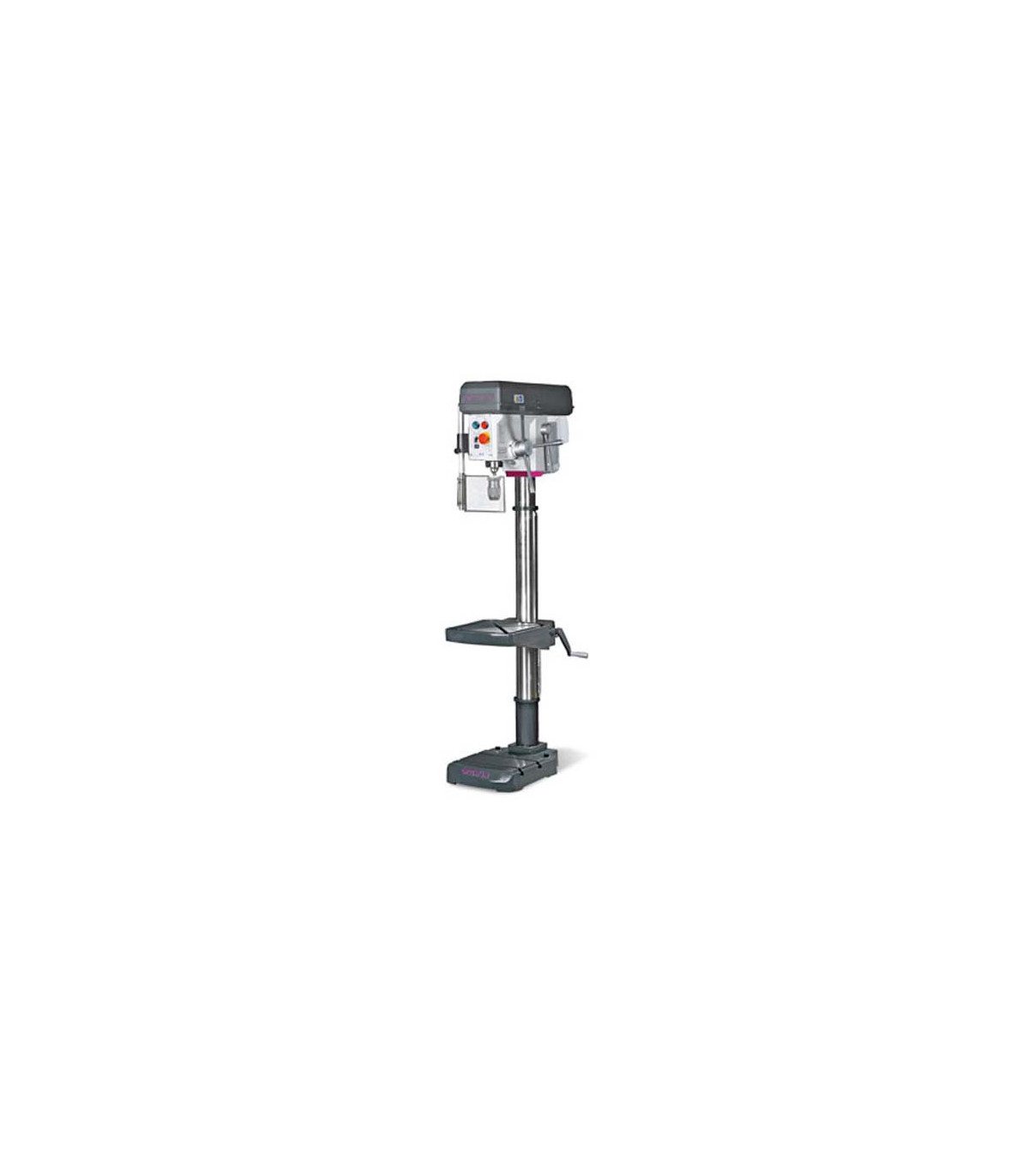

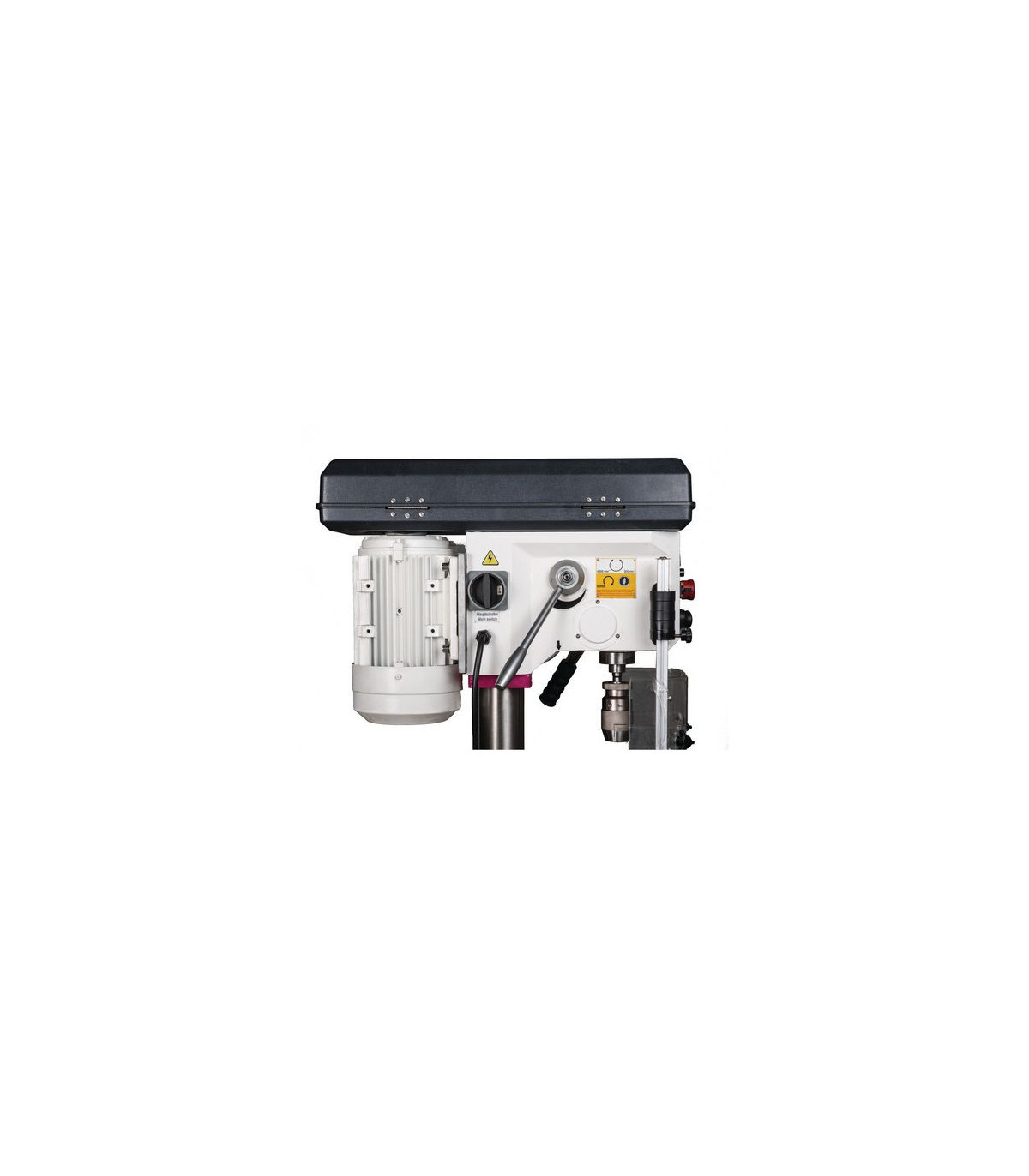

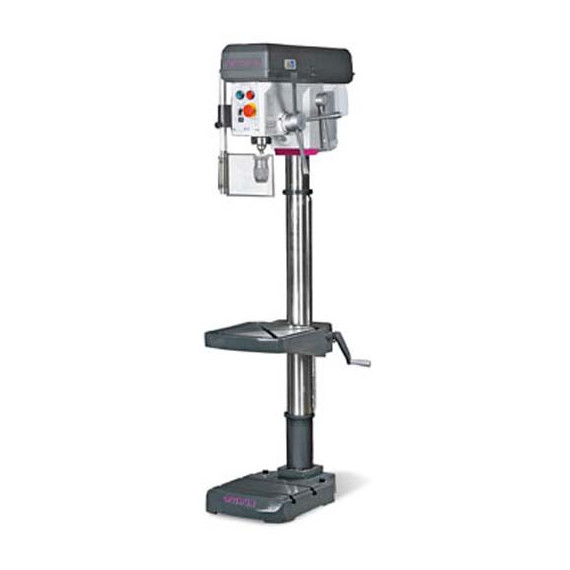

Vertical drill with OPTIdrill DH 28BV OPTIMUM mechanical system.

Vertical drill with mechanical system OPTIdrill DH 28BV OPTIMUM. Continuous mechanical belt variation system, adjusting the energy potential exactly to the necessary speed. With continuous mechanical transmission from Berges.

This OPTIdrill DH 28BV vertical drill is used by pivoting the drilling table as a working surface for particularly tall workpieces.

With emergency stop switch by impact, right-left rotation, and V-belt transmission, cover with safety switch.

FEATURES

Bench and column drill with variable speed through mechanical system.

• Used by pivoting the drilling table as a working surface for particularly tall workpieces.
• Emergency stop switch by impact.
• Right-left rotation.
• V-belt transmission, cover with safety switch.
• Head rotation 360º.

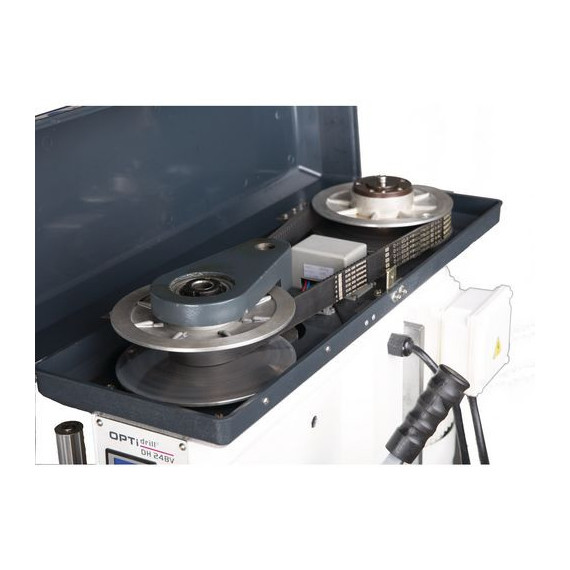

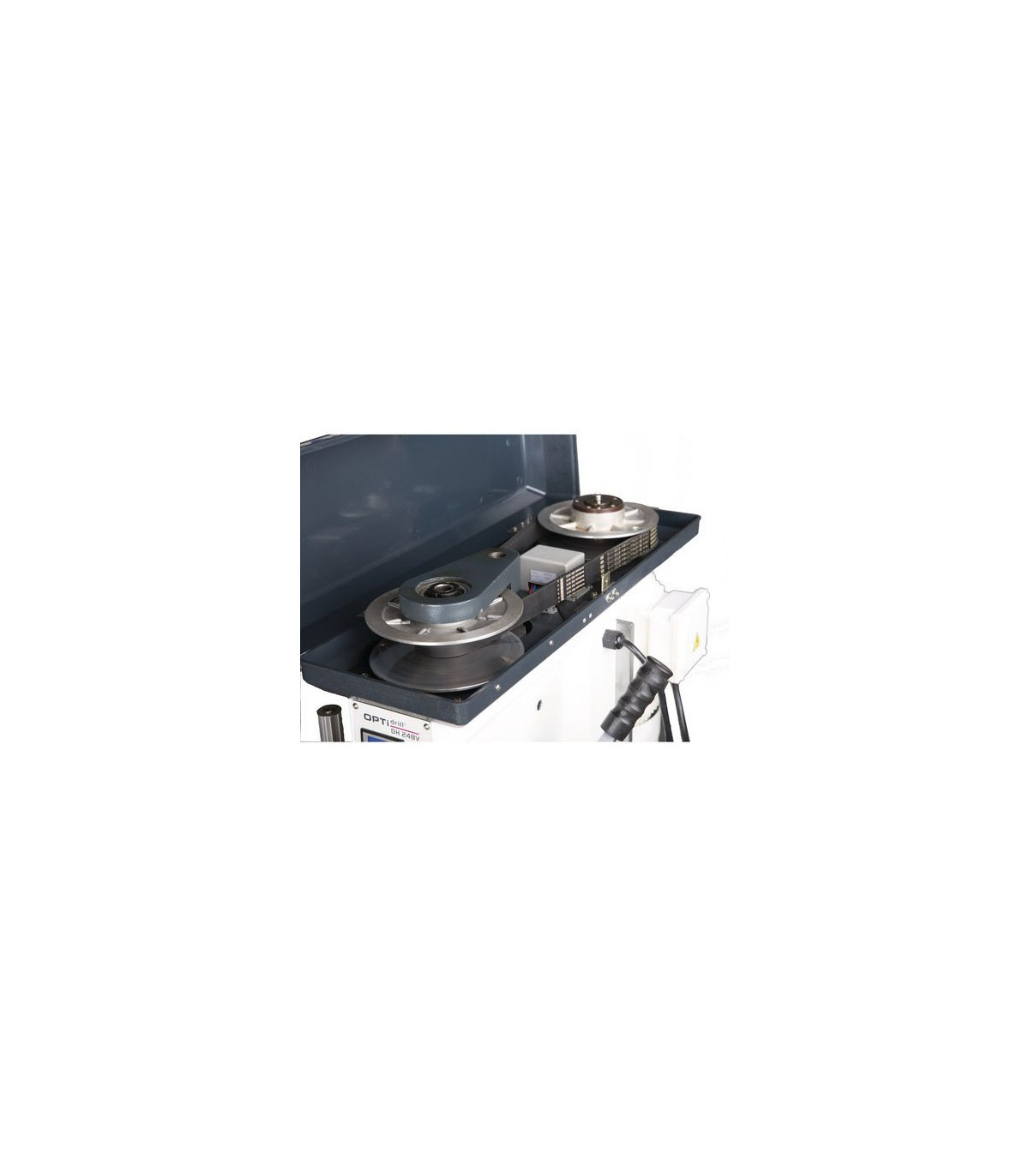

• Continuous mechanical belt variation system, adjusting the energy potential exactly to the necessary speed.
• Smooth operation and powerful electric motor.
• Smoother operation due to aluminum pulleys and toothed V-belts.
• Extremely reliable with manual speed control.
• Quiet operation with high power.
• Durable belt.
• Speed change during machine operation.
• Permanent optimal motor efficiency.
• Increases safety and efficiency of the machine.
• Reduces energy consumption, thus also benefiting the environment.

Includes high-quality chuck as standard.


INCLUDED ACCESSORIES Quick-clamping chuck (1 - 16 mm), Morse taper MK 3, table with 2 T-slot nuts.

TECHNICAL DATA

• Motor power (2 stages) 1.5/0.85 kW/400 V
• Max. drill diameter cast iron 28 mm
• Max. drill diameter in steel 24 mm
• Morse taper type MK 3
• Distance from chuck to column 200 mm
• Quill travel 105 mm
• Spindle revolutions 300 - 4,000 r.p.m.
• Number of speeds 2
• Table dimensions (l x w) 340 x 360 mm
• T-slot dimensions of the table 14 mm
• Rotating work table 360º
• Max. distance from spindle to table 860 mm
• Base dimensions (l x w) 320 x 320 mm
• Max. distance from spindle to base 1,275 mm
• Column diameter 92 mm
• Dimensions (l x w x h) 701x474x1,780 mm
• Net weight 160 kg

PACKAGING

Unit: pc(s).

Packaging unit: 1

High-quality keyless chuck (1 - 16 mm)

Morse taper MK 3 / B16

T-nuts

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
