Vertical drill mechanical system DH40BV OPTIMUM

Vertical drill mechanical system DH40BV OPTIMUM. It is a bench and column drill with variable speed through a mechanical system.

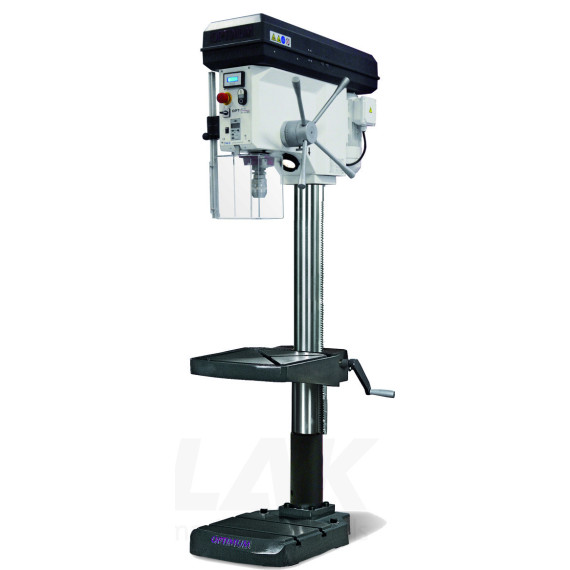

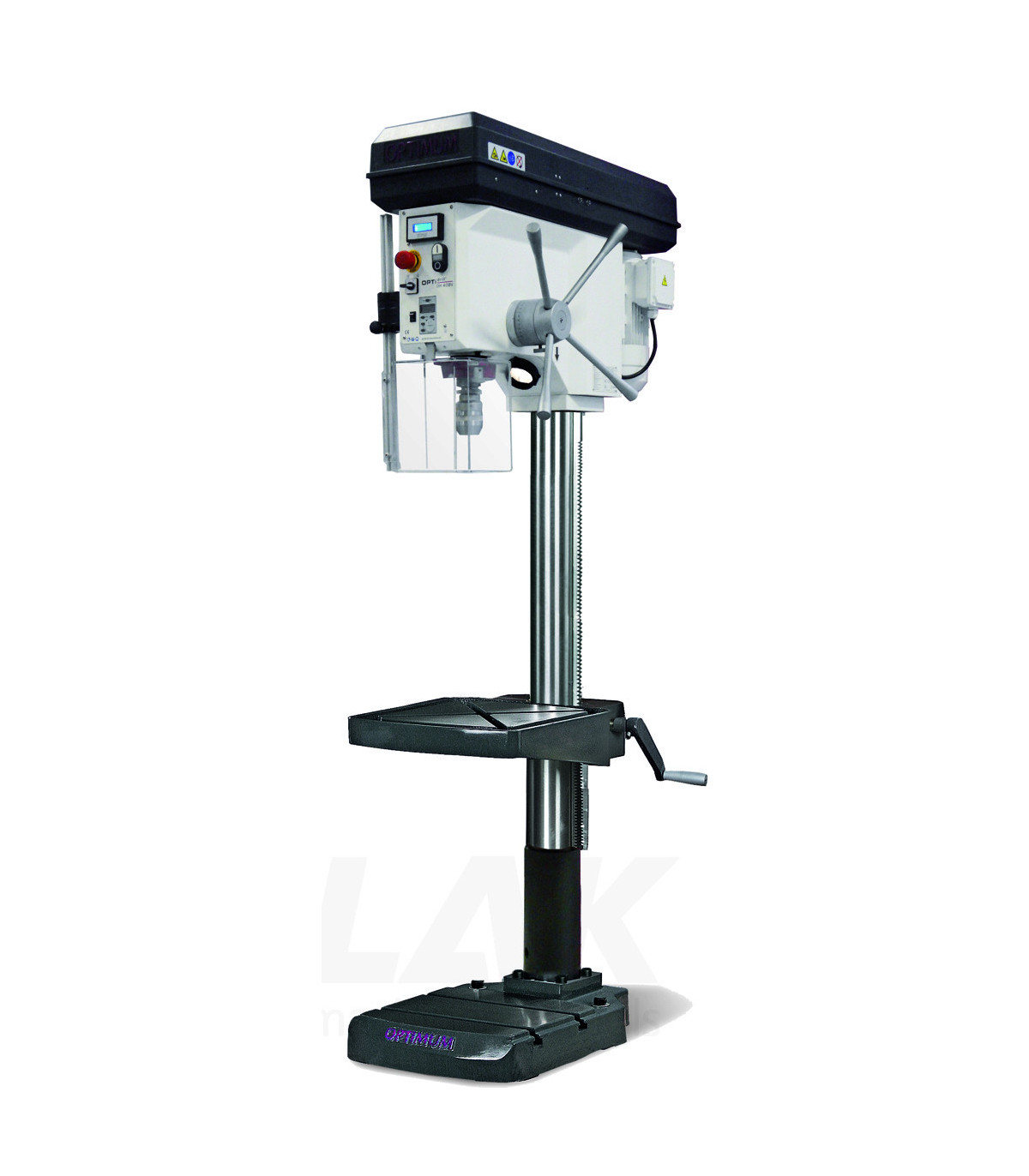

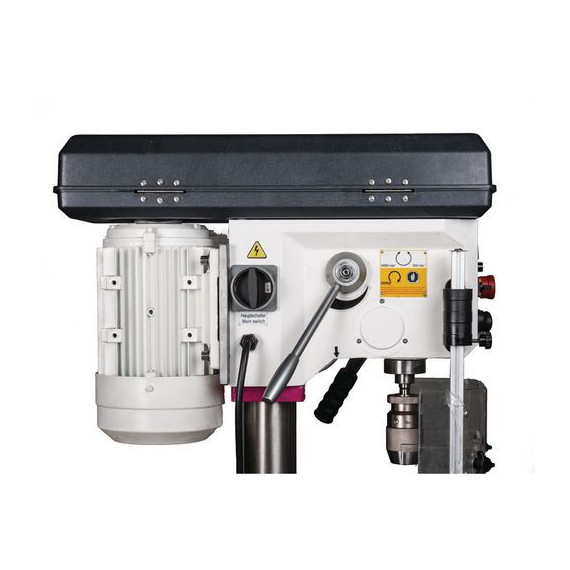

The OPTIMUM DH40BV vertical drill features a smooth and powerful electric motor with two speed levels that performs forward and backward operations. It has a V-belt cover with a safety switch and a digital speed indicator integrated into the housing. Thus, this drill offers guaranteed concentricity of less than 0.015 mm measured at the grid.

FEATURES

· Used by pivoting the drilling table as a working surface for particularly tall workpieces.
· Emergency stop switch by impact.
· Right-left rotation.
· Digital speed display (DH 34 BV).

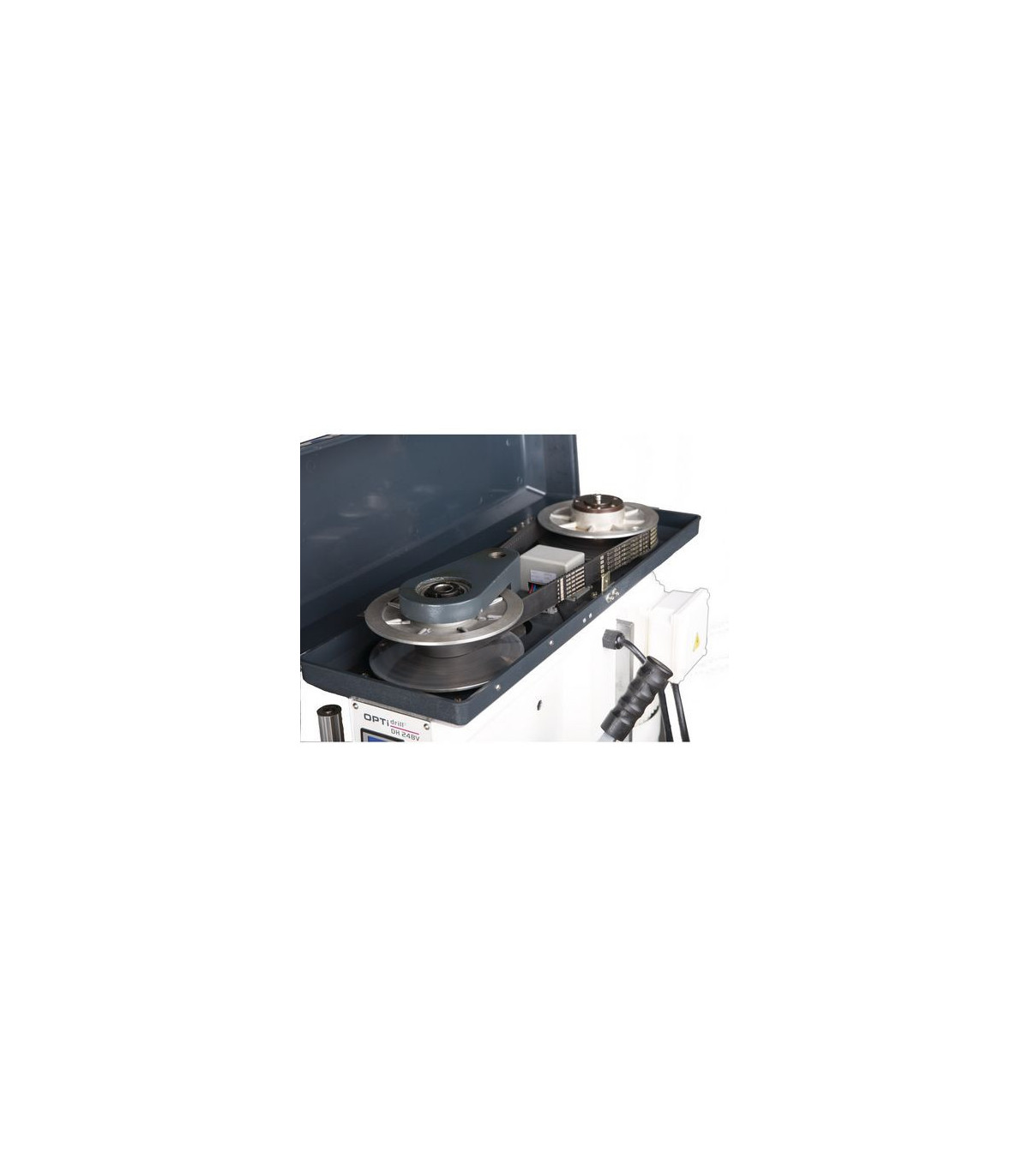

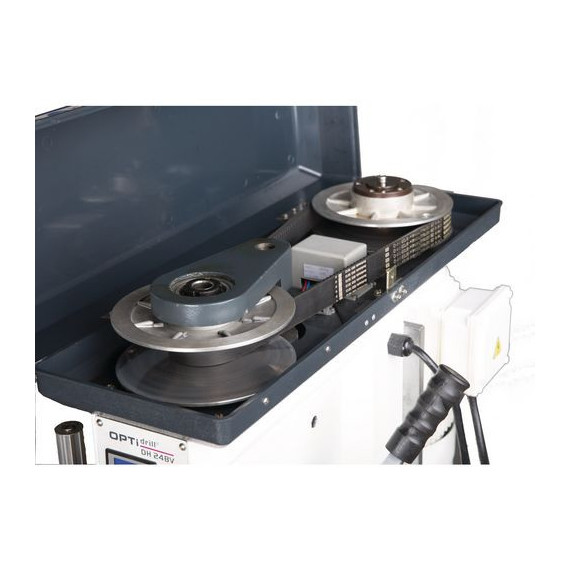

· V-belt drive, cover with safety switch.
· Head rotation 360º.
With a high-quality chuck included.

TECHNICAL DATA

Dimensions and weights

Column diameter 115 mm

Approximate length 920 millimeters

Approximate width/depth 680 mm

Approximate height 1895 millimeters

Approximate weight 275 kg

Drilling performance

Steel drilling performance (S235JR) 40 millimeters

Continuous steel drilling performance (S235JR) 32 millimeters

Drilling table

Length of the working area 420 millimeters

Width of the working area 400 millimeters

Type of T-slot Diagonal

Size of T-slot 14 millimeters

Rotation 360 °

Maximum distance from spindle - drilling table 790 millimeters

Electrical data

Supply voltage 400 V

Network frequency 50 Hz

Machine base

Maximum distance from spindle - machine base 1275 millimeters

Length of the working area 390 mm

Width of the working area 400 millimeters

Size of the T-slot of the machine base 14 millimeters

Number of T-slots of the machine base 2

T-slot spacing of the machine base 150 millimeters

Motor(s)

Spindle motor drive output 1.50 / 2.20 kW

Number of gears of the spindle motor 2 Steps

Speed range

Speed range 150 – 2000 min¯¹

Number of gears 2 Steps

Speed control Manual

Spindle

Stroke length 160 mm

Spindle chuck MT4

Reach 285 millimeters

VPE 1

PACKAGING

Unit: pc(s).

Packaging unit: 1

High-quality keyless chuck (1 - 16 mm)

Morse cone MK 4 / B16

T-nuts

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
