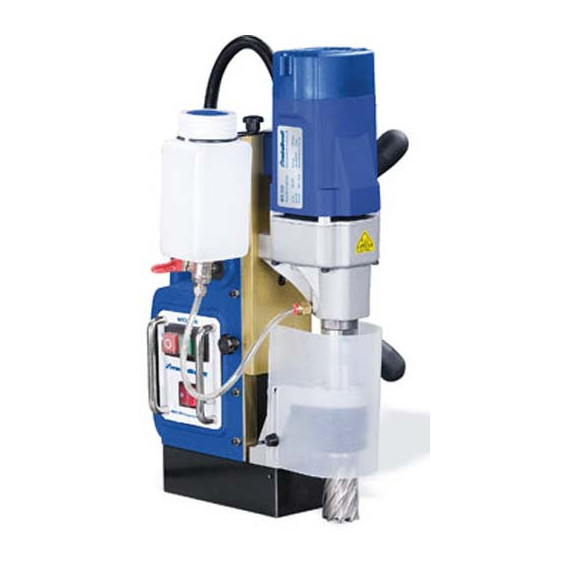

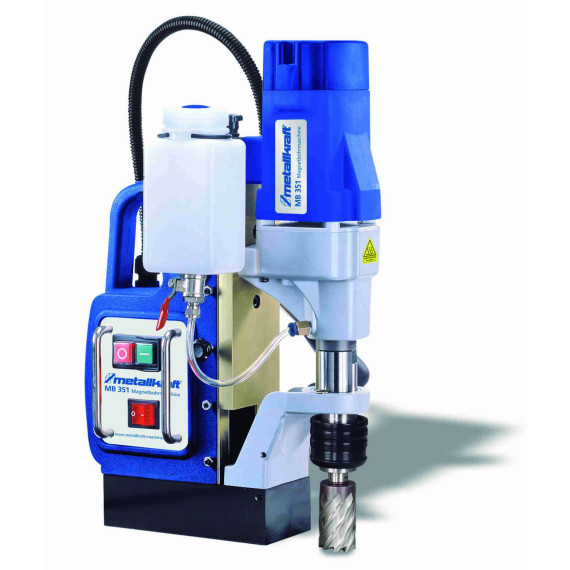

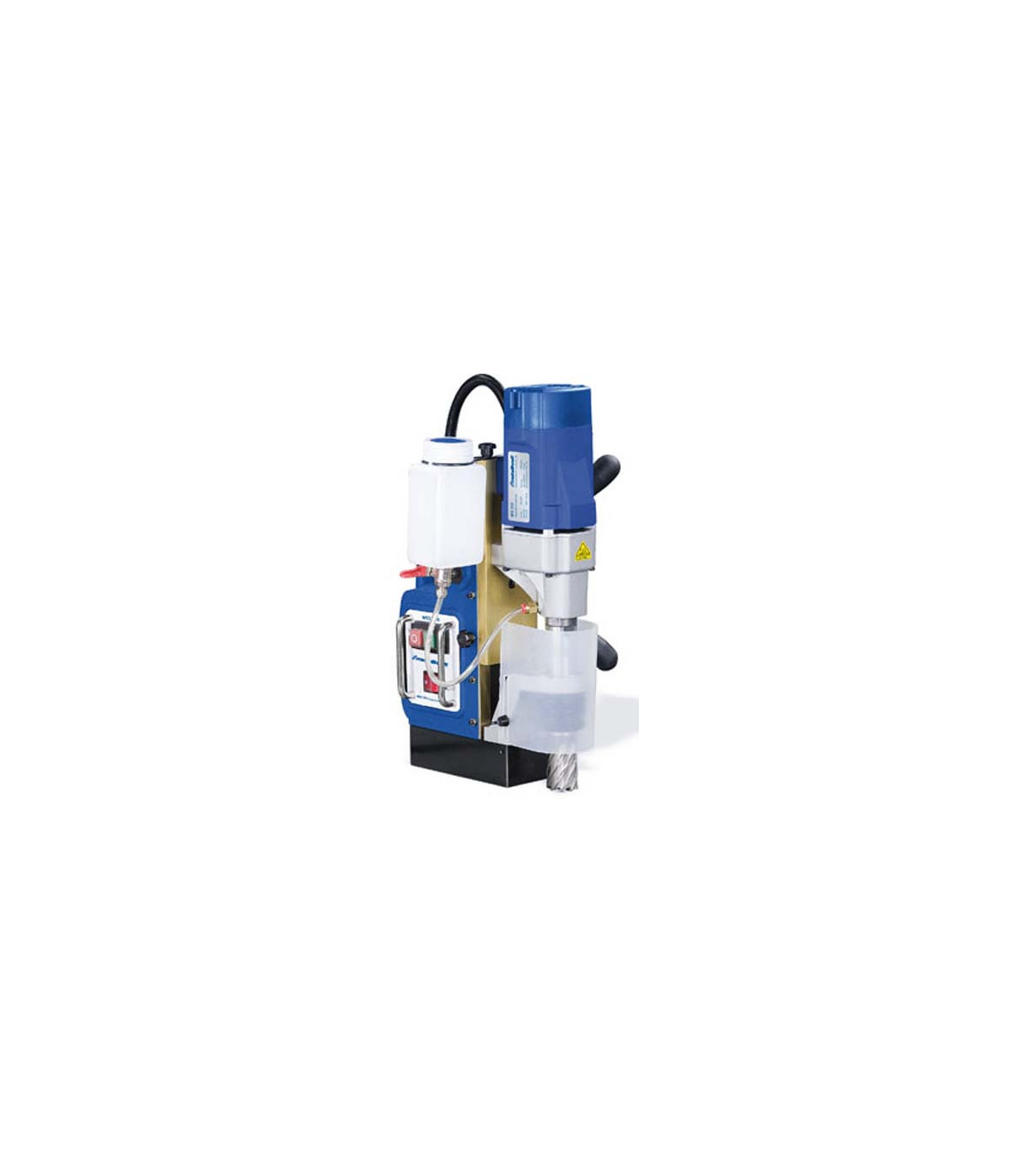

Magnetic Drill MB 351 Metallkraft

Magnetic Drill MB 351 Metallkraft. Magnetic Drill Series MB 351 Metallkraft It is a type of industrial series machinery, suitable for drilling diameters quickly. With a stable and high quality design, it is the simplest and most economical drill of the range.

Features

• Refrigerant system through the drill
• High magnetic retention force, with an adhesion power of 15000
• It has 1 speed and an 1100 W motor
• Core drill with 19mm Weldon Stem
• With conical spindle m 24
• Earth connected device, with double insulation
• Conversion of core drilling to complete drilling in a few steps
• Adapter that will easily change the central holes.
• Includes automatic serial support.

Benefits

• High quality magnetic drill for multiple uses, thanks to the large diameter of drilling, more economical and fast.
• Drill specifically designed for drilling steel materials.
• For strawberries with Weldon Stem 19 mm.
• Very stable and robust drilling guide.
• The device is grounded and doubly isolated, so it is ideal for construction works.
• Stable and high quality design.
• The coolant passes through the strawberry.
• Possibility of drilling with drill through the cockpit accessory, optional.
• With a rapid strawberry system, optional.
• Automatic portfolisses series.

Technical data

• Engine power 1,100 W / 230 V
• Ø Drill Max. / Drilling Steel 35 mm
• Ø Depth Max. / Drilling Steel 50 mm
• Ø Drill Max. / Drilling with Drill 13 mm
• Ø Max Depth / Drilling with Broca 110 mm
• Internal Ø for cutter cutting 19 mm Mango Weldon
• No. of revolutions (in load) 350 r.p.m.
• Dimensions of the magnetic base 165 x 80 mm
• Magnetic Adhesion 15,000 N / 1,500 Kg F
• Max dimensions (l x an x al) 330x260x450 mm
• Net weight 12.7 kg
• Maximum drilling depth with drill: 140mm
• Maximum drilling depth with strawberry: 35mm
• Maximum drilling depth in steel with strawberry 50mm

Components / packaging

Measurement unit: part

Packing unit: 1

1 refrigerant tank and refrigerant line

1 protection device

operational tool

Plastic case for transport

Chain
