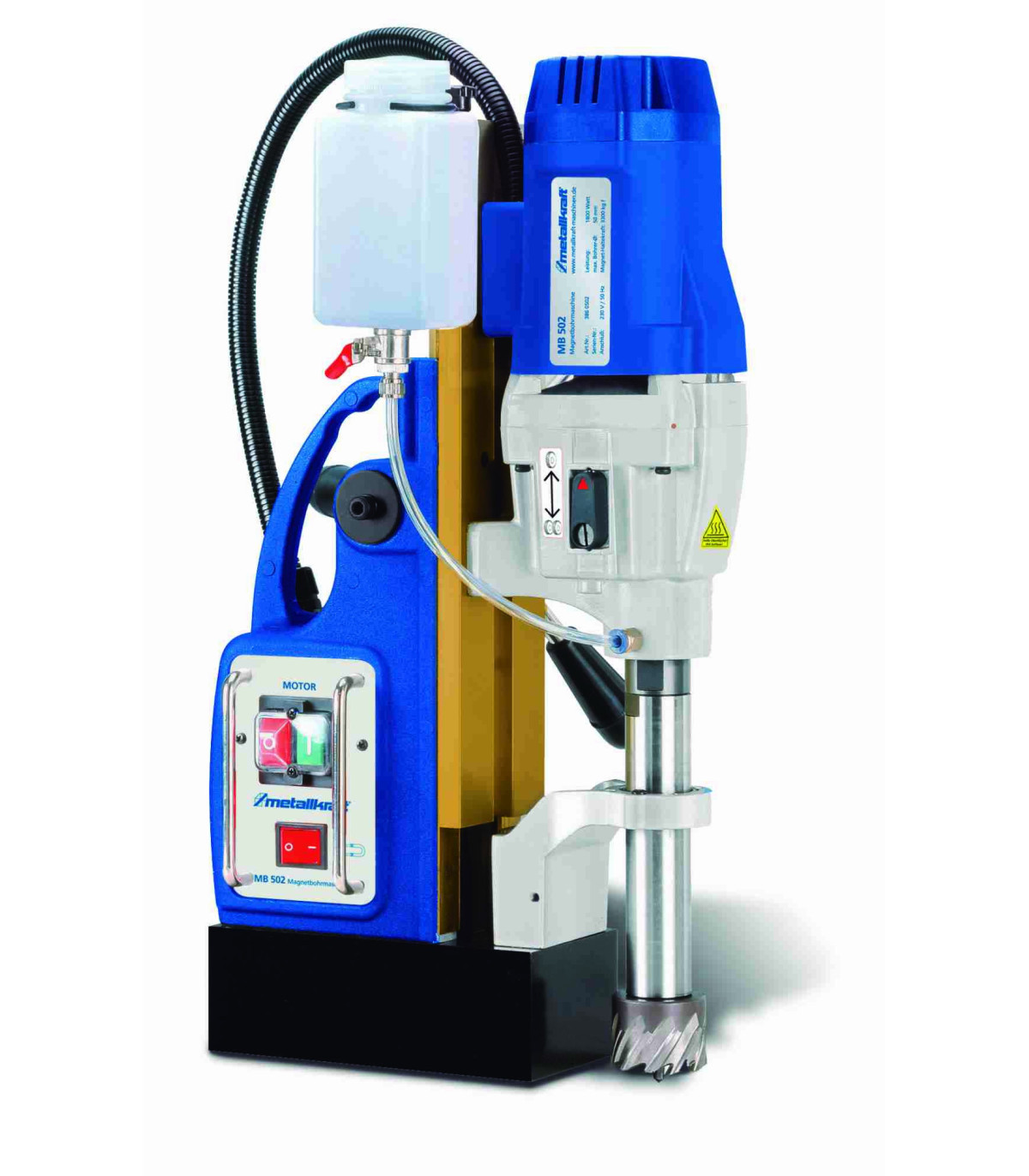

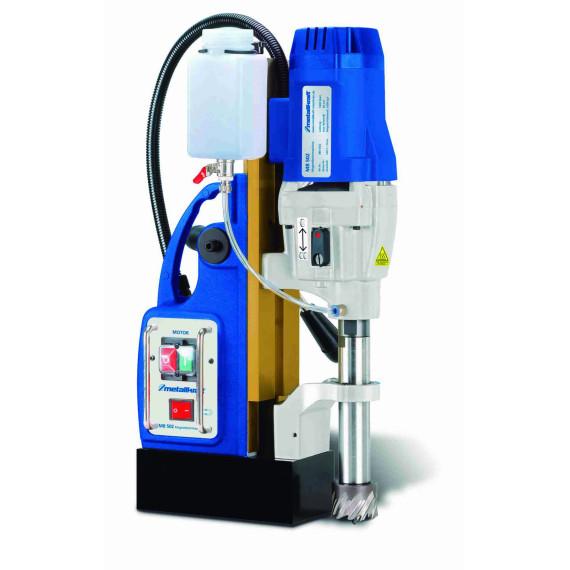

Magnetic Drill MB 502 METALLKRAFT

Magnetic Drill MB 502 METALLKRAFT. The MB 502 Magnetic Drill from Metallkraft is a type of industrial series machinery, suitable for quickly drilling diameters. It offers a stable and high-quality design.

FEATURES

• Cooling system through the drill
• High magnetic holding force, with an adhesion power of 32000
• Equipped with 2 speeds and a 2000W motor
• Core drill with a 19mm Weldon shank
• With M 24 tapered spindle
• Grounded device with double insulation
• Conversion from core drilling to full drilling in a few steps

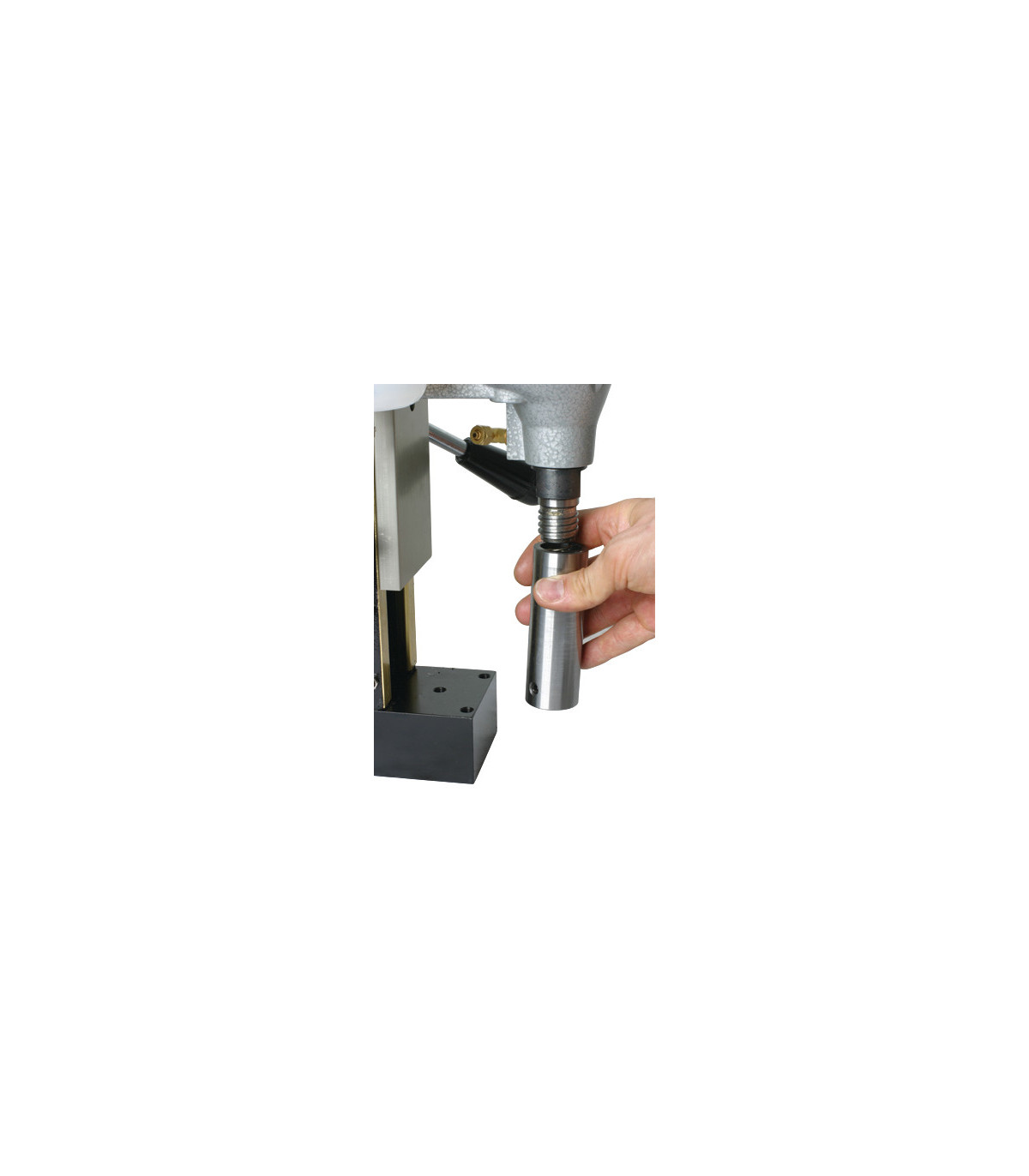

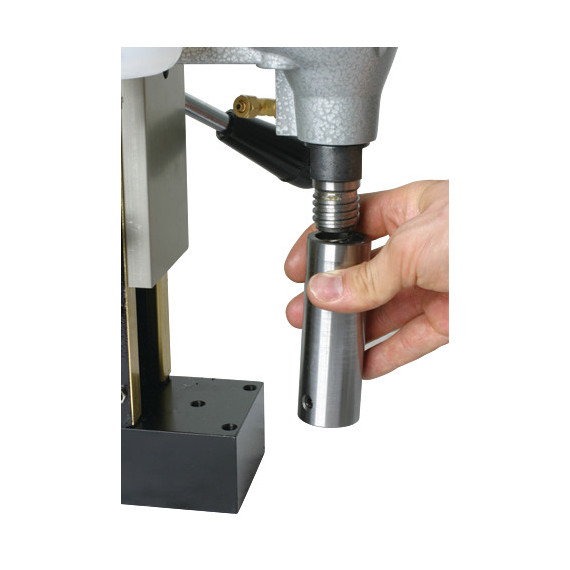

• Adapter that allows for easy changing of core drills.
• Includes automatic chuck as standard.

BENEFITS

• Drill specifically designed for drilling steel materials.
• For cutters with a 19 mm Weldon shank.

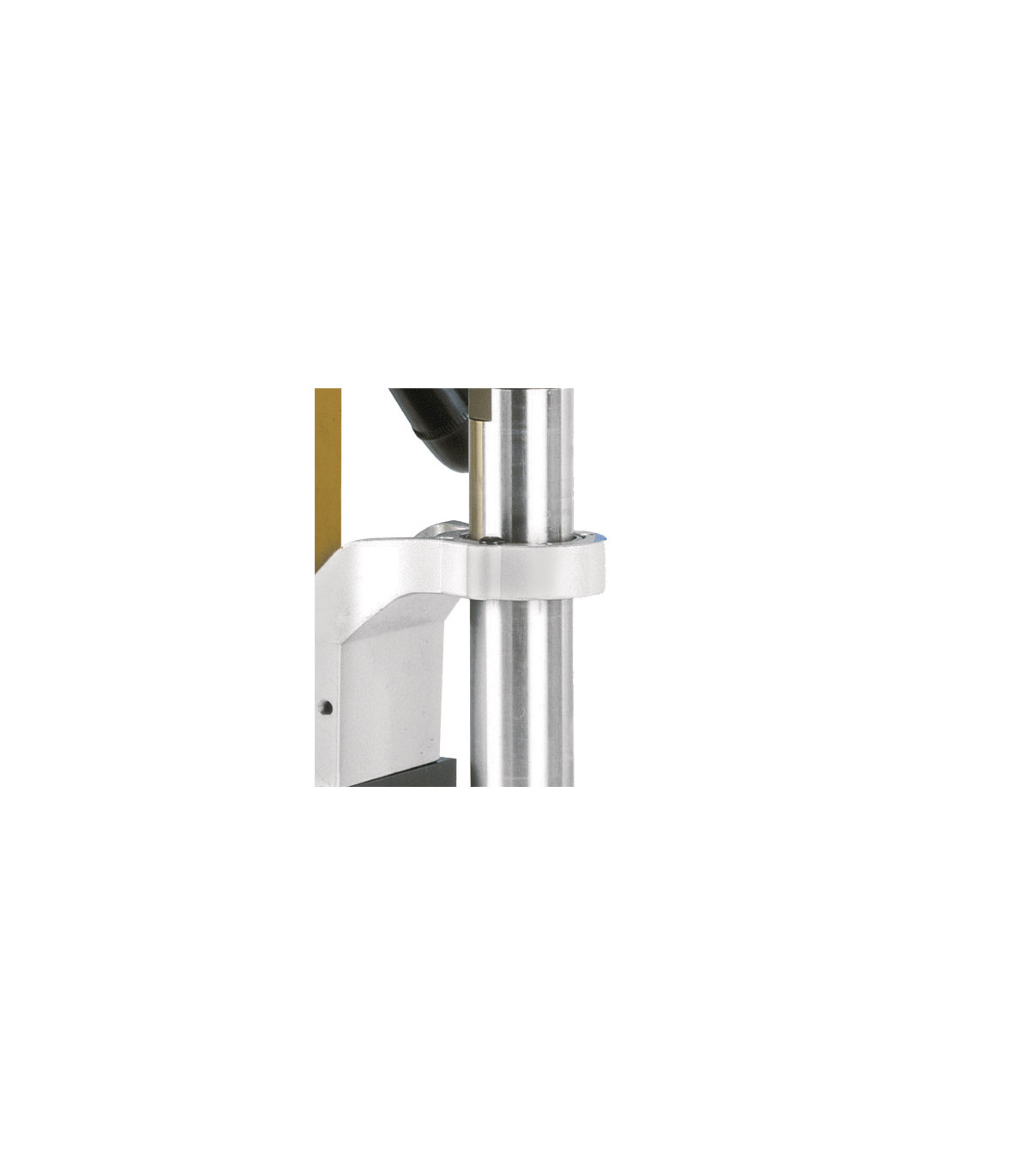

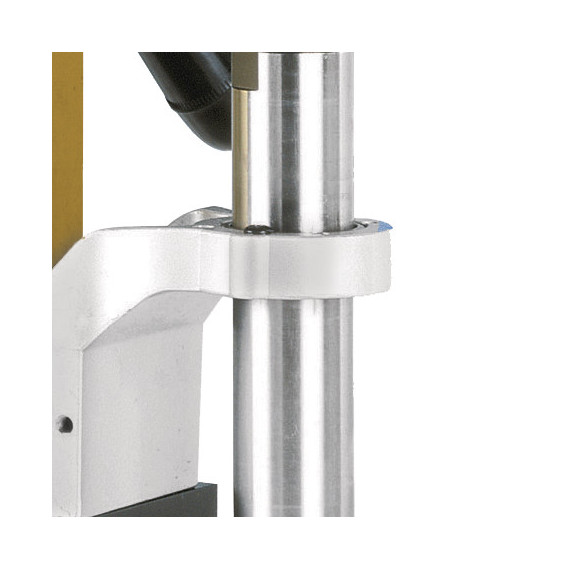

• Very stable and robust drilling guide.
• The device is grounded and doubly insulated, making it ideal for construction sites.
• Stable and high-quality design.
• The coolant passes through the cutter.
• Possibility to drill with a drill bit using the optional drill chuck accessory.
• With optional quick-change cutter system.
• 2 speeds and automatic chuck as standard.

TECHNICAL DATA

• Motor power 1,800 W / 230 V
• Max drill Ø / steel drilling 50 mm
• Max depth Ø / steel drilling 75 mm
• Max drill Ø / drilling with bit 16 mm
• Max depth Ø / drilling with bit 110 mm
• Internal Ø for cutting cutter 19 mm Weldon shank
• Number of revolutions (under load) 230 / 300 r.p.m.
• Max dimensions (l x w x h) 570x340x290 mm
• Magnetic adhesion 32,000 N / 3,300 Kg f
• Magnetic base dimensions 200 x 100 mm
• Net weight 22.9 kg
• Max drilling depth with bit: 110mm
• Max drilling depth with cutter: 50 mm
• Max drilling depth in steel with cutter 75mm

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

1 coolant tank and coolant line

1 protection device

operational tool

Plastic case for transport

1 chain

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MB 502 METALLKRAFT Magnetic Drill is suitable for:

• Construction
• Industry
• Carpentry
• DIY
