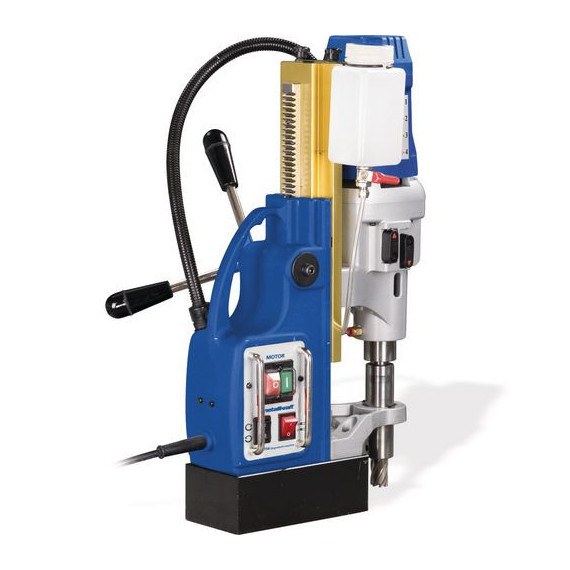

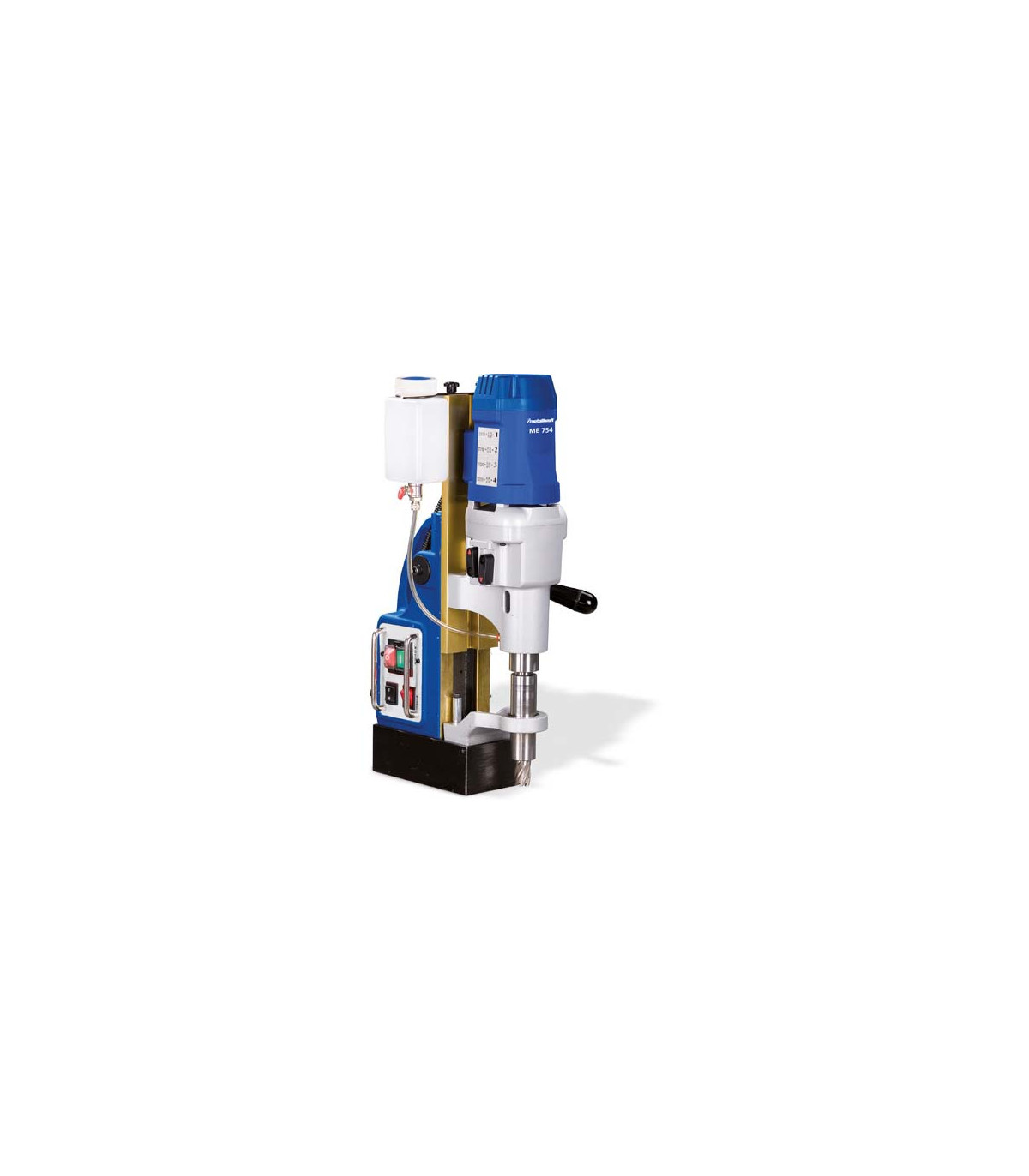

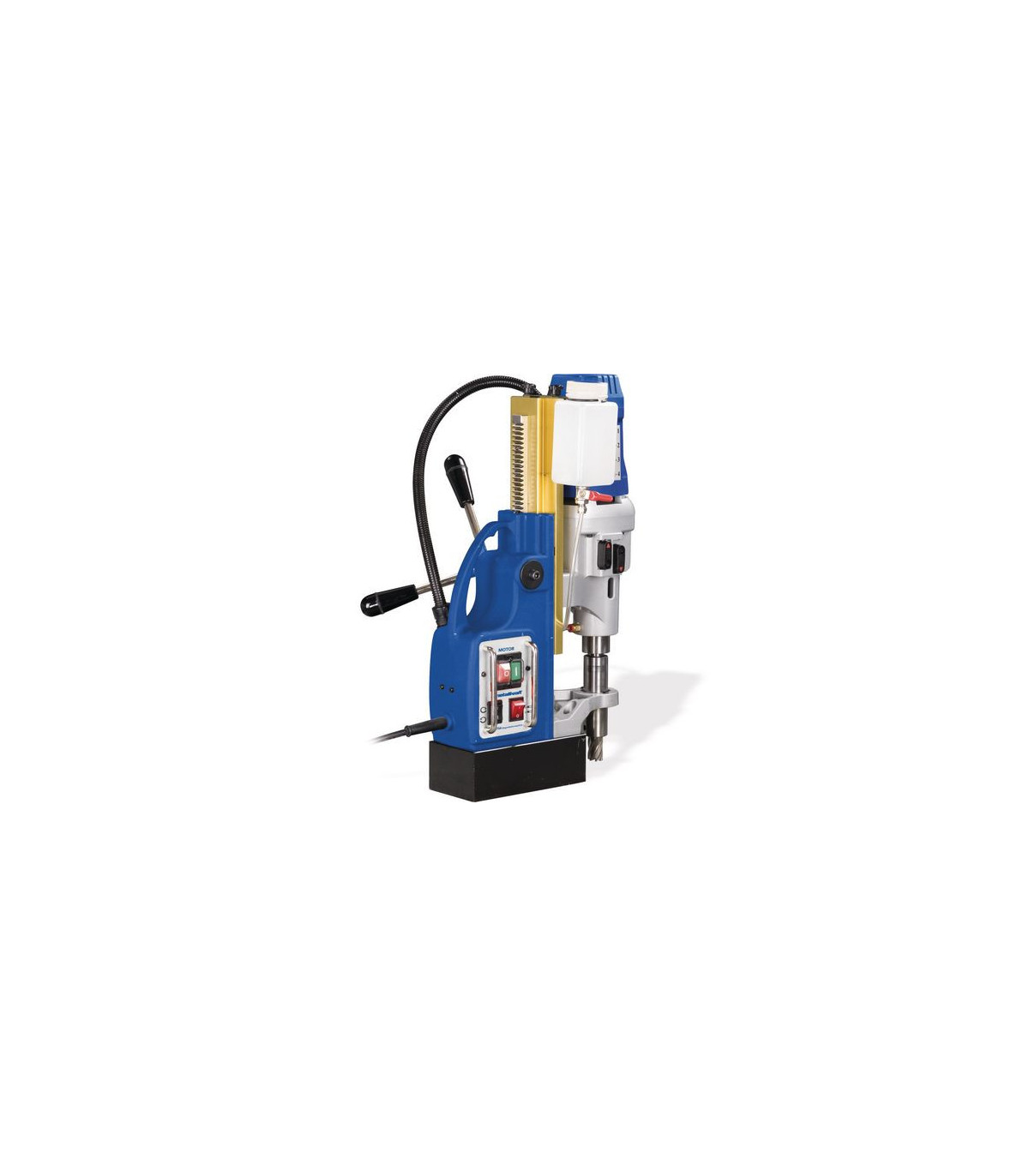

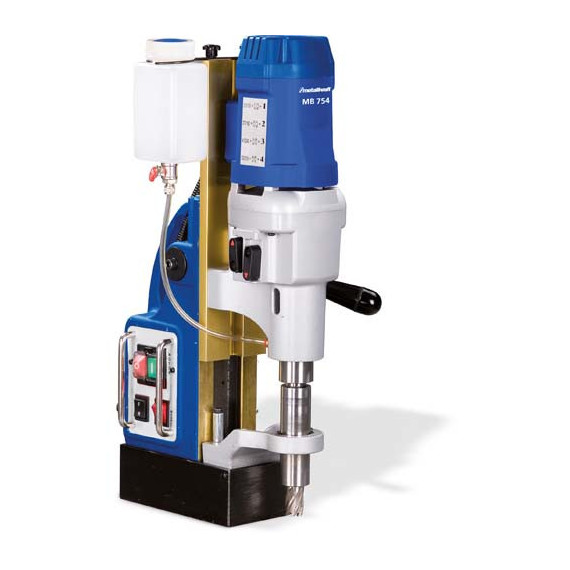

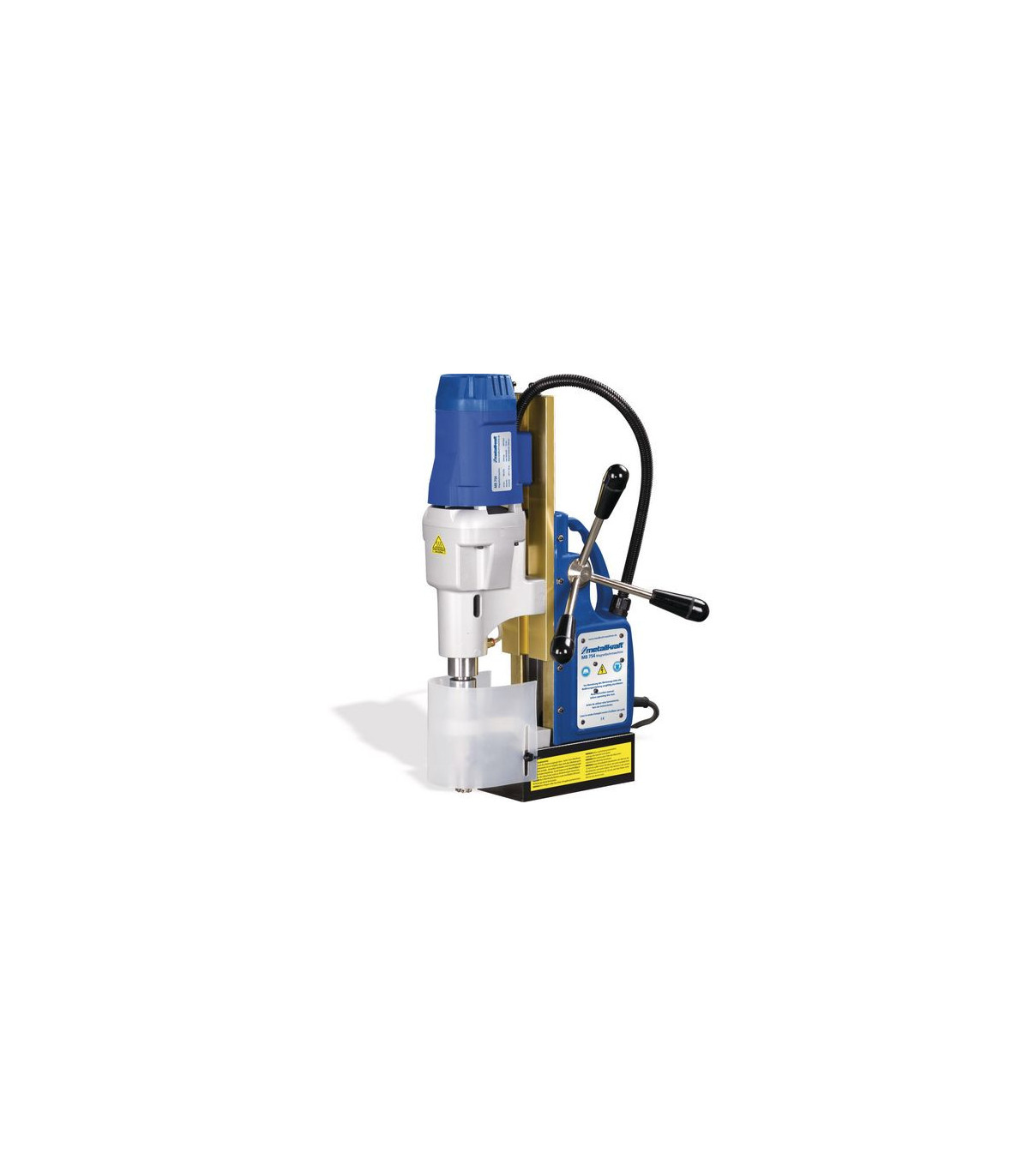

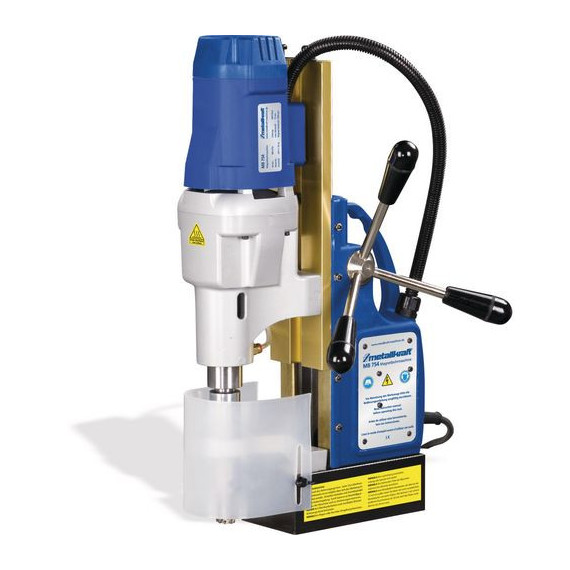

Magnetic Drill MB 754 METALLKRAFT

Magnetic drill MB 754 METALLKRAFT. The MB 754 magnetic drill from Metallkraft is a type of industrial series machinery, suitable for quickly drilling large diameters.

FEATURES

• Cooling system through the drill
• High magnetic holding force, with an adhesion power of 15000
• Equipped with 4 speeds and a 2000 W motor
• Core drill with a Weldon shank of 19mm
• With MT 3 taper spindle
• Drilling with left/right rotation
• Grounded device with double insulation
• Conversion from core drilling to full drilling in a few steps

BENEFITS

• For 19 mm Weldon type cutters
• Spindle drilled along its entire length for deep coolant passage.
• Device with double insulation and grounded, making it suitable for construction sites.
• High magnetic holding capacity.
• The coolant is directed to the drilling site.
• Ability to drill with cutter and drill bit using an adapter and chuck with great ease.
• Safe and reliable operation.

TECHNICAL DATA

• Motor power 2,000 W / 230 V
• Max drill Ø / steel drilling 75 mm
• Max depth Ø / steel drilling 50 mm
• Max drill perf. with directly mounted bit 32 mm
• Max depth perf. steel with bit (adapter and chuck accessory) 150 mm
• Max drill Ø / drilling with bit 16 mm
• Max depth Ø / drilling with bit 110 mm
• MT 3 Morse taper
• Internal Ø for cutting cutter 19 mm Weldon shank
• Number of revolutions (under load) 90/120/180/230 r.p.m.
• Max dimensions (l x w x h) 330 x 125 x 476 mm
• Magnetic adhesion 32,000 N / 3,300 Kg f
• Magnetic base dimensions 200 x 100 mm
• Net weight 24.8 kg
• Max drilling depth with bit: 110mm
• Max drilling depth in steel with bit: 150mm
• Max drilling depth with cutter: 75mm
• Max drilling depth in steel with cutter 50mm

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

1 coolant tank and coolant line

1 protection device

operational tool

Plastic case for transport

1 chain

driving wedge

Core chuck MK 3/19 mm

FOR WHAT TYPE OF WORK IS IT SUITABLE

The MB 754 METALLKRAFT magnetic drill is suitable for:

• Construction
• Industry
• Carpentry
• DIY
