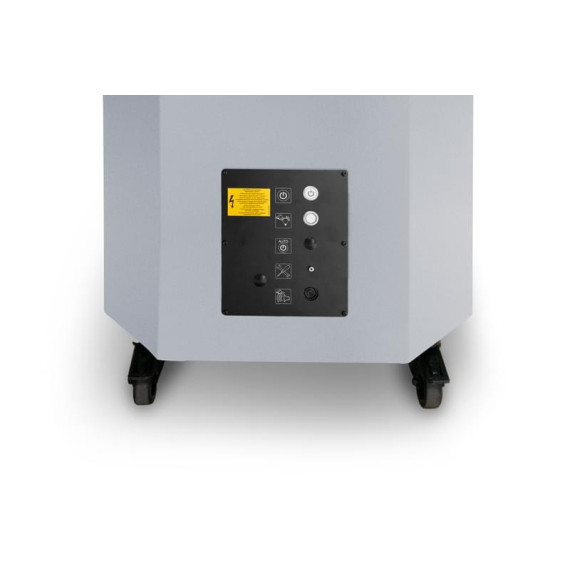

SmartFil compact welding fume extraction vacuum device, regular use KEMPER.

SmartFil compact smoke extraction suction device for regular use. Greater safety thanks to filter control

SmartFil is a mobile welding fume filtration unit for regular use in welding with medium amounts of fumes and dust. The single-use filter of the extraction unit has an especially large filter area of 25m² and is completely changed contamination-free when saturated. SmartFil effectively protects the user from welding fumes and is particularly economical due to its long service life.

Arm lengths of 2m, 3m, and 4m (Available in hose version and tube version).

FEATURES

• W3 certified - also suitable for chrome-nickel steel
• 360° rotating suction hood with adjustable valve
• Replacement filter area: 42 m²
• Large filtration area
• Compact and stable design
• Extraction arm available in various sizes.
• Additional equipment: Optional with new model suction hood
• Safe and contamination-free filter replacement SCF
• Optionally with LED lighting and automatic start/stop system

BENEFITS

• Safe operation due to direction recognition
• Less frequent repositioning of the suction arm thanks to the shape of the suction hood
• Greater safety thanks to filter control
• Greater safety thanks to contamination-free filter change
• High profitability due to the large capacity and long service life of the filter

APPLICATIONS

• Moderate amounts of smoke/dust
• Regular use
• Variable workstations

TECHNICAL DATA

SPARE PARTS

• Replacement filter 25 m² for SmartFil REF: 1090675
• Replacement filter 42 m² for SmartFil, MaxiFil, WallMaster REF: 1090517
• Rotating crown REF: 7910302
• Suction hood: 7910300
• Rubber seal - set of 10 pcs. REF: 1060290

ACCESSORIES

• Illuminated suction hood for original equipment REF: 79103040
• Illuminated suction hood for retrofitting REF: 79 103 045
• Automatic start-stop REF: 94102702
• Protective grille REF: 1270091

Double filter capacity at a low price: SmartFil sets a new standard in its class

• New KEMPER system – Price/performance winner in its class
• Higher possible performance through accessories
• Round design with SafeChangeFilter for the first time as a basic model

Developed for professional welders and yet affordable for newcomers: The new SmartFil extraction unit from KEMPER sets a new standard in mobile welding fume extraction for regular welding. Even in the basic version, it is the price/performance winner among devices in its class. At a comparable price level, the SmartFil offers double the filter area and thus a significantly longer service life compared to similar systems. An even larger replacement filter and other accessories allow welders to further upgrade the extraction unit. Equipped for the first time with a round filter in this class of device, KEMPER has also optimized the design to create a more attractive and rounded appearance.

The greater the potential danger, the more different the required welding fume extraction: Which extraction unit is suitable for an individual welding application depends on both the duration of use and the amount of welding fumes produced. "Our SmartFil now provides an extraction unit for a wide range of hazard intensities, and at the best price/performance ratio," emphasizes Bjorn Kemper, CEO of KEMPER GmbH.

Double the service life compared to comparable models

The new extraction unit is available at a price level comparable to other industrial models in the same segment, but it has by far the largest storage filter. With 25 square meters, the filter area is in some cases twice as large as similar models. This means that even with the basic SmartFil equipment, welders achieve a significantly longer service life compared to conventional models.

And that's not all: welders can further upgrade the SmartFil with optional accessories if needed. The choice for the replacement filter is between the standard 25 square meter filter or a storage filter with a filter area of 42 square meters, which extends the service life accordingly. Additionally, the SmartFil can be optionally equipped with an automatic start/stop system and LED lighting in the extraction hood.

Future-proof through upgrades with KEMPER innovations

While the optimized design of the extraction hood in the original equipment already requires less follow-up, the new KEMPER extraction hood available at the end of the year in combination with the new 180-millimeter extraction arm ensures an even higher capture rate. The SmartFil is already designed for these additional accessories: KEMPERbeats, a Bluetooth speaker to play your own music, an LED strip, and integrated volume flow monitoring also make welding work even safer and more enjoyable.

Round instead of square: SmartFil with a new design

KEMPER is also setting new standards in terms of design with the SmartFil. Like many comparable models, the extraction unit is no longer square but round. This is possible because, for the first time in this class of device, KEMPER has integrated a round storage filter. As part of the housing, welders can easily remove this SafeChangeFilter from the extraction unit. This means that its removal is completely contamination-free.

Thanks to its mobility and the 360-degree rotating escape hood, the compact system can be used flexibly in changing workplaces. Welders gain greater reach by integrating longer extraction arms of up to four meters in a tube or flexible hose version. The SmartFil filters more than 99.5 percent of the alveolar dust particles.
