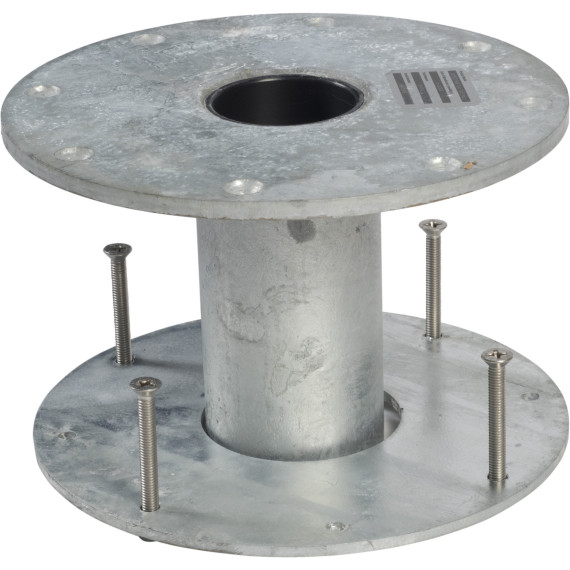

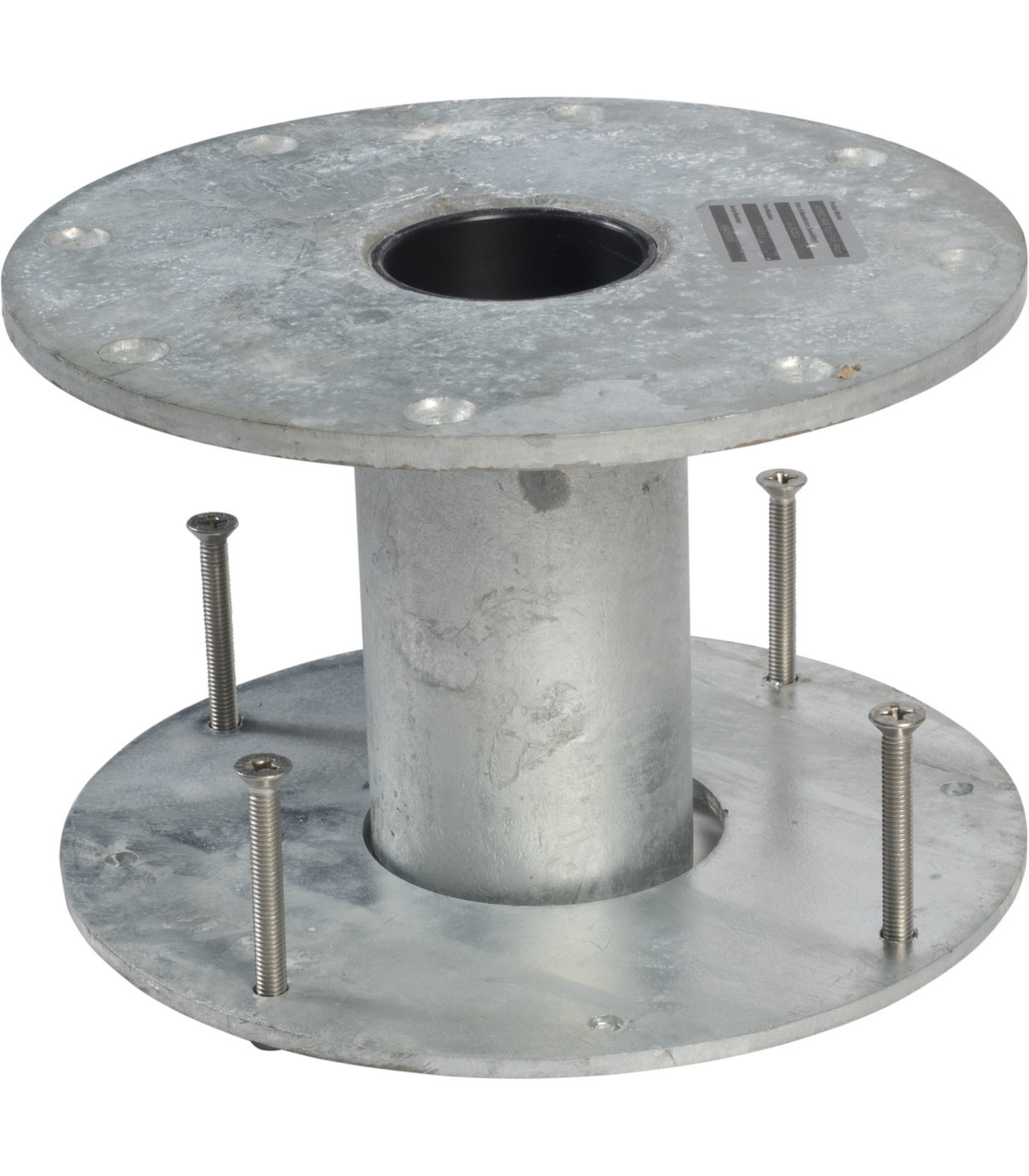

Jackpod recessed floor mounting base SKYLOTEC

Jackpod mounting base embedded floor SKYLOTEC. The JACKPOD series is designed to be installed on an existing concrete surface and to provide permanent support for the installation of a cantilever arm. It can only be used with SKYLOTEC CANTILEVERS, and all accessories must be designed, manufactured, and/or approved by SKYLOTEC. All parts must be installed, inspected, maintained, and used in accordance with the manufacturer's instructions. The structures selected for the installation of this sleeve must be capable of withstanding a minimum moment of 1000 Nm (90,000 in-lb) and a vertical load of 22.24 kN (5000 lb).

Additionally, the fasteners used to secure this sleeve must have a maximum installed pull-out strength of at least 17.79 kN (4000 pounds) per fastener. If not, it must be approved by a qualified person to indicate an appropriate safety factor for the particular applications in accordance with applicable regulations.

APPLICATIONS

Support base for the installation of a cantilever arm.
