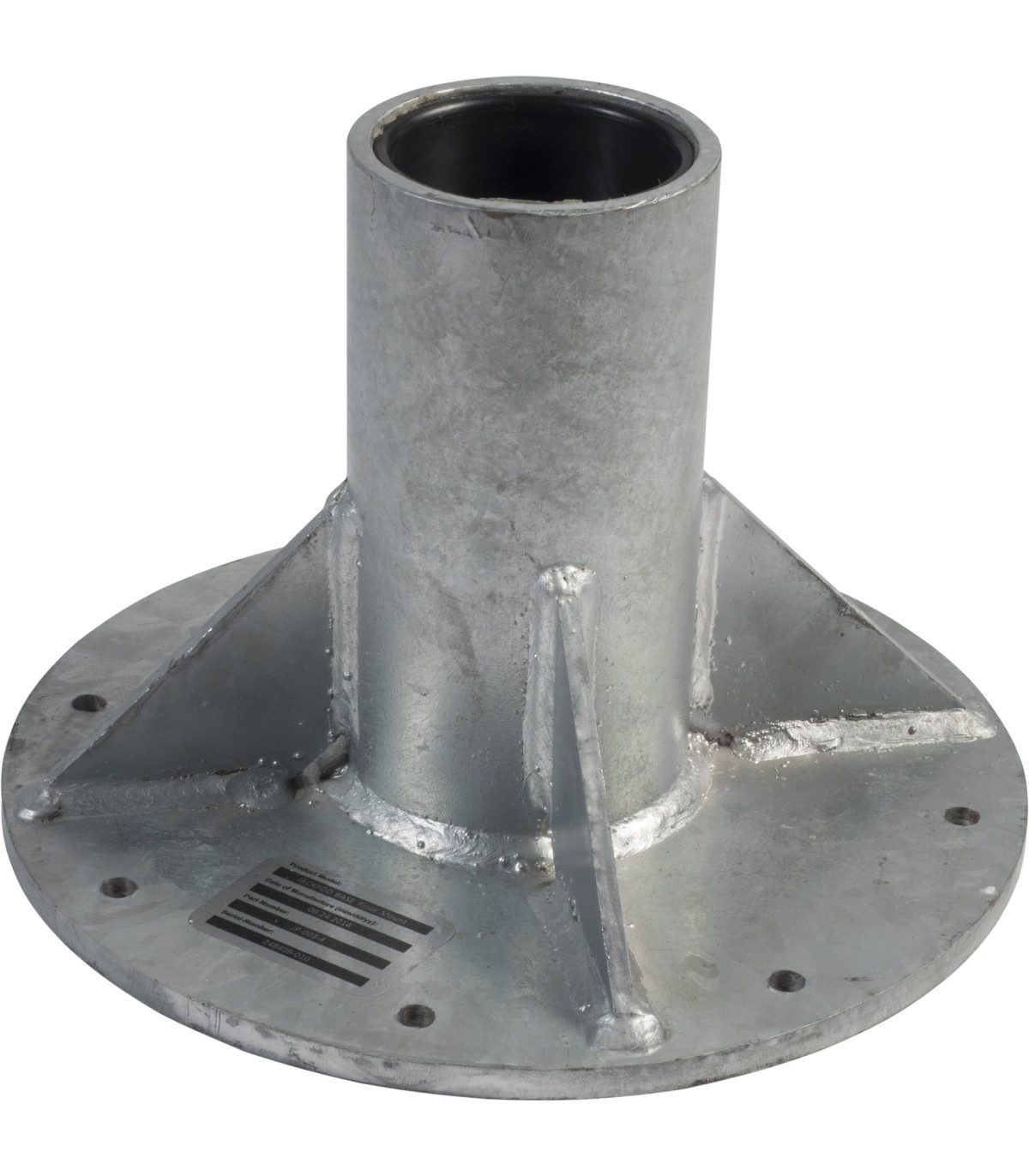

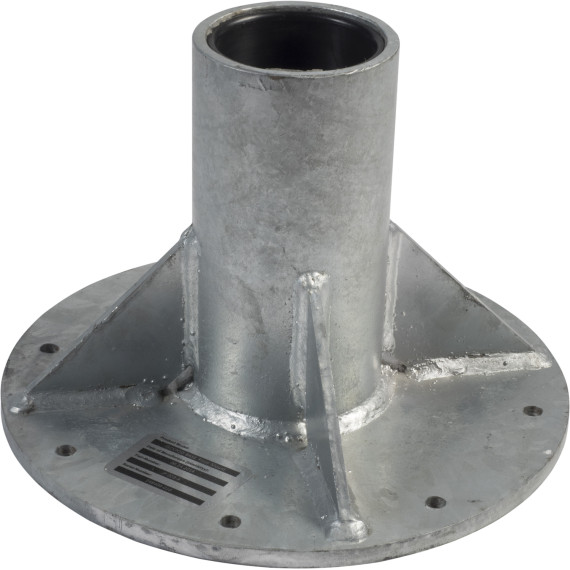

Jackpod Base Floor Mount SKYLOTEC

This floor support from the JACKPOD series is specially designed to secure the DAVIT arm to vertical structures, such as beams, columns, tanks, walkways, and concrete. The product can only be used with SKYLOTEC DAVIT arms, and all accessories must have been developed, produced, and/or approved by SKYLOTEC. All system components must be installed, maintained, and used according to the manufacturer's instructions. The product can only be installed on surfaces capable of supporting a minimum torque of 10,000 Nm and a vertical load of 22.4 kN.

A structural engineer can perform a calculation taking into account the appropriate safety factors. Additionally, a minimum extraction force of 17.79 kN per fastening element must be ensured, or the fastening elements will be specified by a structural engineer who will perform the calculations with the appropriate safety factors. Installation and use are only to be carried out by qualified personnel.

SPECIFICATIONS

APPLICATIONS

Firefighters / Rescue / Special forces, Channels / Wells / Tanks, Construction / Roofers / Carpenters, Construction of electrical / telephone / telecommunications lines

REGULATIONS

CEN/TS 16415:2013, EN 795-A:2012
