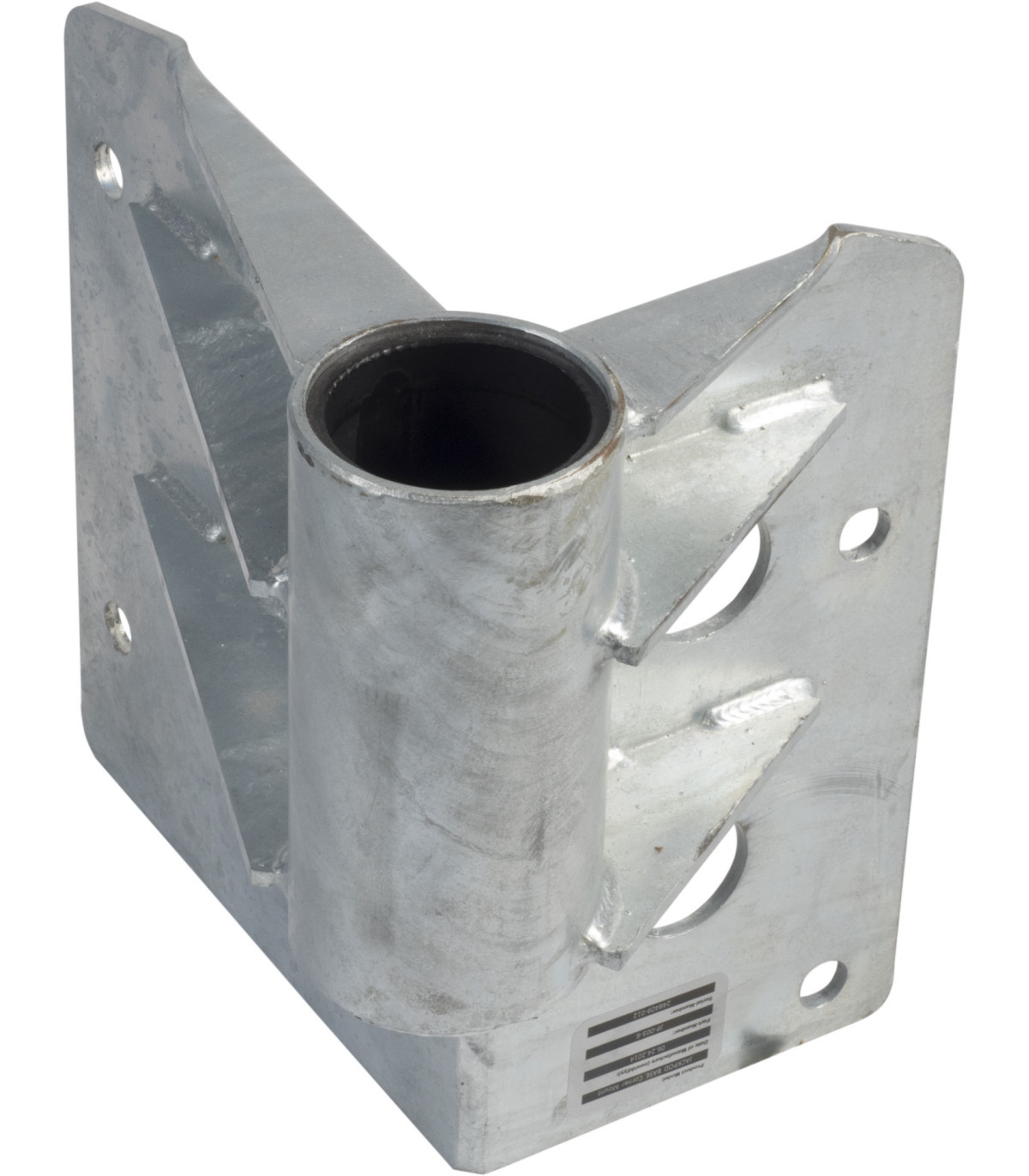

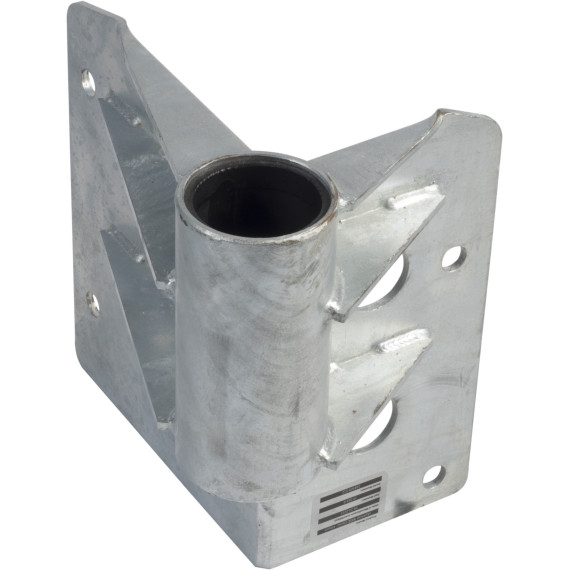

Jackpod Base Corner Mount SKYLOTEC

This corner support from the JACKPOD series is specially designed to secure the DAVIT arm for vertical structures, including beams, columns, tanks, walkways, and concrete. The product may only be used with SKYLOTEC DAVIT arms, and all accessories must have been developed, produced, and/or approved by SKYLOTEC. All system components must be installed, maintained, and used in accordance with the manufacturer's instructions. The product may only be installed on surfaces capable of supporting a minimum torque of 10,000 Nm and a vertical load of 22.4 kN.

A structural engineer can perform a calculation taking into account the appropriate safety factors. In addition, a minimum extraction force of 48.93 kN per screw must be ensured. A structural engineer can perform a calculation considering the relevant safety factors. Installation and use only by qualified personnel.

Jackpod Base Corner Mount JP-003-6

SPECIFICATIONS

APPLICATIONS

Firefighters / Rescue / Special forces, Channels / Wells / Tanks, Construction / Roofers / Carpenters, Construction of electrical / telephone / telecommunications lines

REGULATIONS

CEN/TS 16415:2013, EN 795-A:2012
