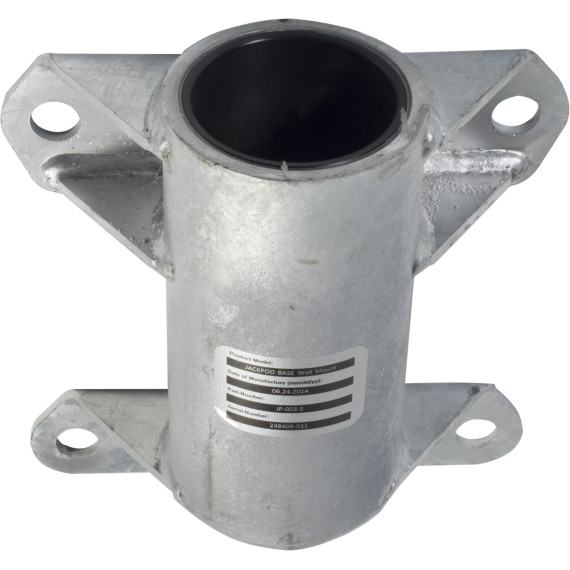

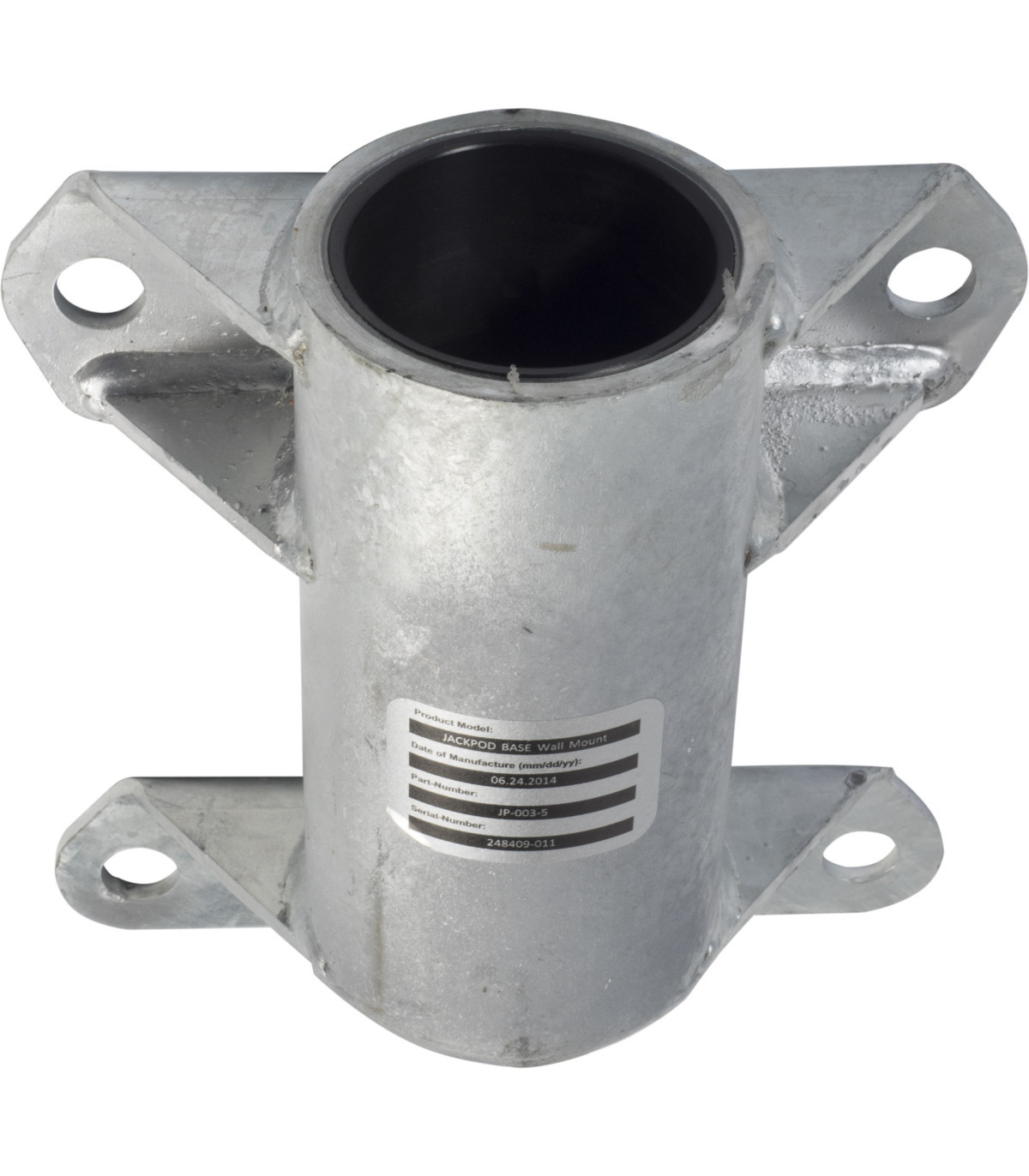

Jackpod Base Wall Mount SKYLOTEC Wall Support

Jackpod Base Wall Mount SKYLOTEC. This wall mount from the JACKPOD series is specially designed for mounting the DAVIT arm for vertical structures, including beams, columns, tanks, walkways, and concrete. The product can only be used with SKYLOTEC DAVIT arms, and all accessories must have been developed, produced, and/or approved by SKYLOTEC. All system components must be installed, maintained, and used in accordance with the manufacturer's instructions.

The product can only be installed on surfaces capable of supporting a minimum torque of 10,000 Nm and a vertical load of 22.4 kN. A structural engineer can perform a calculation taking into account the appropriate safety factors. Additionally, a minimum pull-out force of 48.93 kN per fastening element must be ensured, or the fastening elements must be specified by a structural engineer who performs the calculations with the appropriate safety factors. Installation and use only by qualified personnel.

SPECIFICATIONS

APPLICATIONS

Firefighters / Rescue / Special forces, Channels / Wells / Tanks, Construction / Roofers / Carpenters, Construction of electrical / telephone / telecommunications lines

REGULATIONS

CEN/TS 16415:2013, EN 795-A:2012
