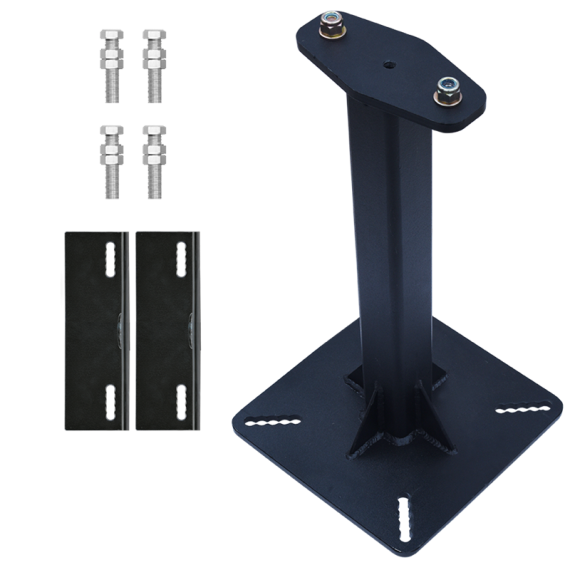

Anchor position height 300 and 500 mm in galvanized steel for horizontal line KS 4000 KRATOS SAFETY

Kratos Safety anchor poles, available in heights of 300 and 500 mm and manufactured in galvanized steel, offer a robust and adaptable solution for the installation of horizontal life lines with KS 4000 cable. Its versatile design allows its use in a wide range of industrial applications, from construction and maintenance to logistics. Whether to protect workers on high platforms, walkways or temporary work areas, these posts guarantee a safe and reliable anchoring point.

CHARACTERISTICS

• Compatible with the intermediate pin FA 60 204 00, the end plate FA 60 201 00.
• Material: galvanized steel
• Weight: 12.15 kg
• Conformity: EN 795:2012 Type A combined with end plate FA 60 201 00
• Resistance to rupture  26 kN
• Height: 300 and 500 mm
• Width: 275 mm

Fixing elements :

- 4 M threaded rods12x65, 8 nuts and 8 washers,

- 2 CSK M screws12x45, 2 self-drawn nuts and 2 washers to fix the end plate,

- 1 hexagonal head screw M12x25, to fix the intermediate pin.

APPLICATIONS

Post kit with staples to fix on a metal beam by grappling.

TECHNICAL DATA

• HS: 73269098

NORMS

- EN 795:2012 Type A refers to anchor systems, but in this case it focuses on portable anchoring devices. These devices are designed to be used on the floor or on flat surfaces and do not require a fixed installation in a structure. Type A includes requirements for your design, performance and testing, ensuring that they are safe and effective to prevent falls. These systems are often used in situations where it is not practical or possible to install a permanent anchor system, offering flexibility and mobility to workers performing high-rise tasks.

ON SAFETY KRATES

Kratos Safety offers you a complete anticated solution with high-end, customer-oriented services. The Kratos Safety range is designed to meet the requirements of the European Standards, as well as the comfort and ergonomic expectations of users in their workplace.
