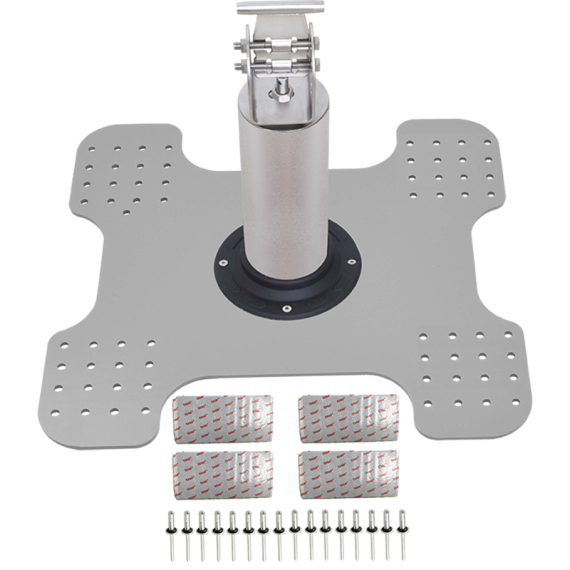

Intermediate position with energy absorption system for steel sheet cover and 20 kN resistance KRATOS SAFETY

The Intermediate Post with Energy Absorption System for Kratos Safety Steel Plate Cover is an essential component to ensure safety in high work. Designed to dispel the energy generated in case of fall, this post incorporates an advanced absorption system that protects the worker in case of incident. Manufactured in stainless steel 316, it offers exceptional corrosion resistance and atmospheric agents, ensuring a long service life.

CHARACTERISTICS

• Intermediate post with energy absorption system for straight line of life.
• Fixing plate that has different holes to adapt to different dimensions (see intersection measures).
• Fixing by 16 stalk rivets on steel sheet cover.
• Provided with FA 60 204 00 intermediate pin and EPDM bands to achieve waterproofing.
• Its design allows to dispel the energy generated by the arrest of a fall.
• Material: Stainless steel
• Weight: 12.5 kg
• Conformity: EN 795:2012 Type C & TS 16415 when used in a complete KS4000 system
• Resistance to breakage  20 kN

TECHNICAL DATA

• HS: 73269098

NORMS

- Policy EN 795:2012 Type C refers to the anchoring devices used for protection against drops in high work. Specifically, Type C covers the anchor systems that are designed to be installed in fixed structures, such as ceilings or walls, and which allow the connection of a personal protective equipment (PPP) to avoid falls.

APPLICATIONS

• Maintenance
• Equipment repair
• Work on fixed heights and structures

ON SAFETY KRATES

Kratos Safety offers you a complete anticated solution with high-end, customer-oriented services. The Kratos Safety range is designed to meet the requirements of the European Standards, as well as the comfort and ergonomic expectations of users in their workplace.
