Automatic Air Hose Reel 8m HAL00808 | METALWORKS

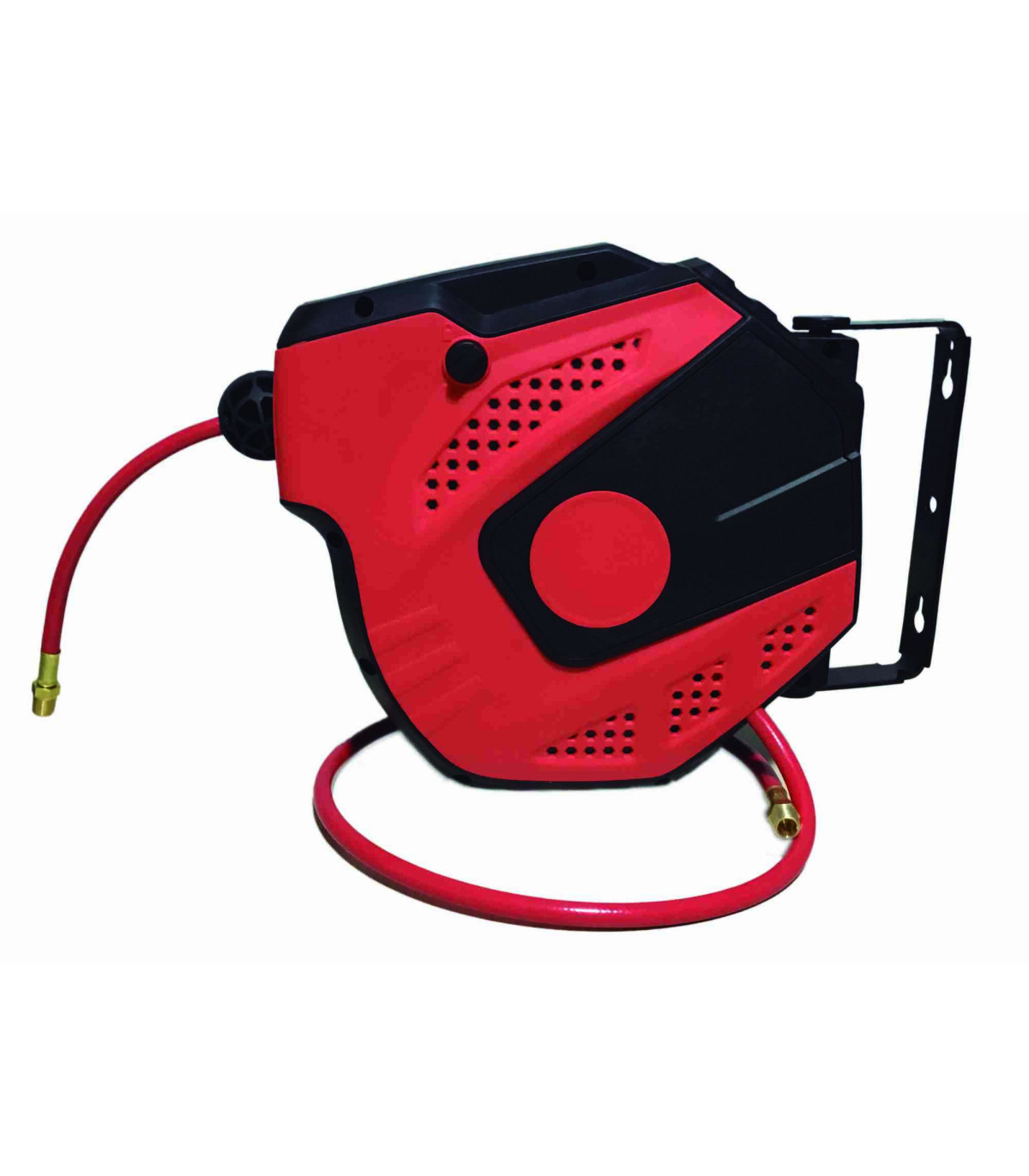

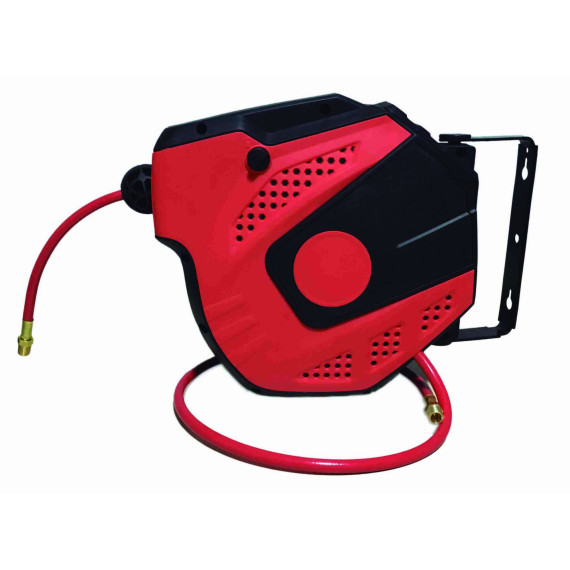

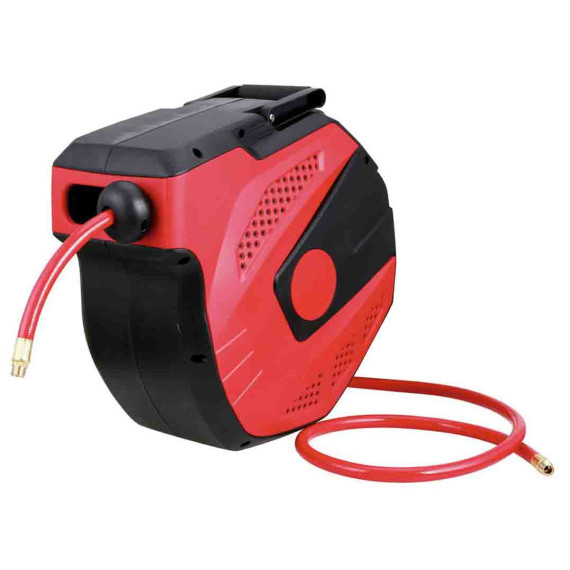

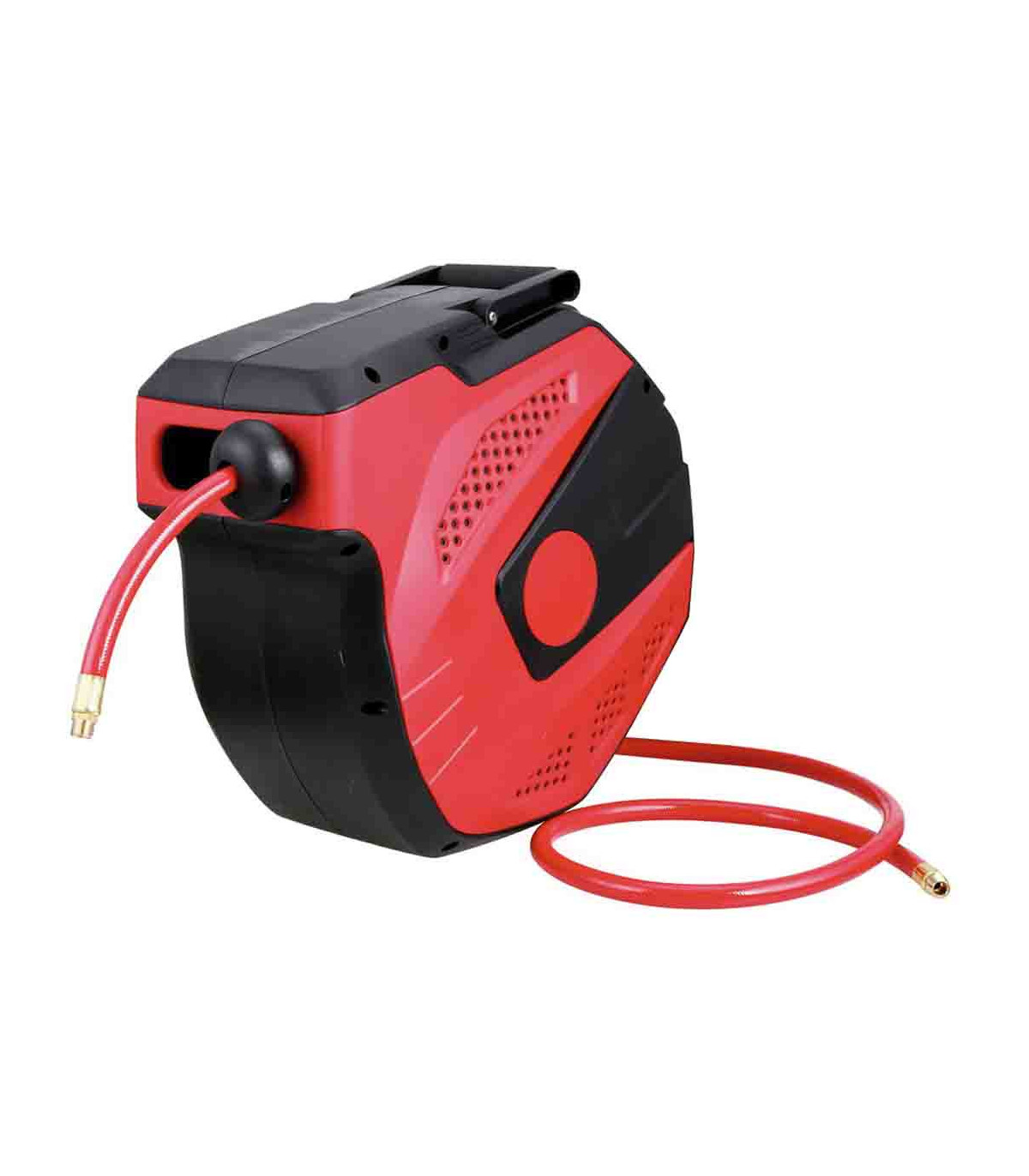

Mini Air Hose Reel Automatic 8m HAL00808 METALWORKS. Compact, lightweight, and efficient. The HAL00808 mini reel is the ideal solution for fixed workstations, assembly benches, or tight spaces. It offers 8 meters of hose always ready for use, eliminating clutter and tripping hazards.

Automatic compressed air hose reel. Robust polypropylene housing. Flexible PVC hose. Wall mount, allows rotation of up to 180° to the left or right. Roller guides on the top and bottom. Automatic return. Operating temperature from 0°C to 60°C. CE and RoHS approval.

FEATURES

The ultra-compact design of this reel makes it perfect for direct installation on workbenches, lifts, or next to specific machinery. Despite its small size, it features a robust automatic rewind mechanism with lock and a durable plastic housing. The 8-meter PVC hose is ideal for tasks that do not require a long reach. The 180° pivoting wall mount allows for comfortable orientation towards the work area.

SPECIFICATIONS

• Connection 1/4"
  Max effective pressure 10 bars
  Inner diameter of the hose 8 mm
  Hose length 7 + 1 m
  Net weight 3.9 kg

APPLICATIONS

• Assembly and mounting stations using pneumatic screwdrivers or riveters.

• Tire inflation stations in workshops and dealerships.

• Workbenches in electronics or modeling workshops for blowing and cleaning tasks.

• Use alongside CNC machinery for chip cleaning.
