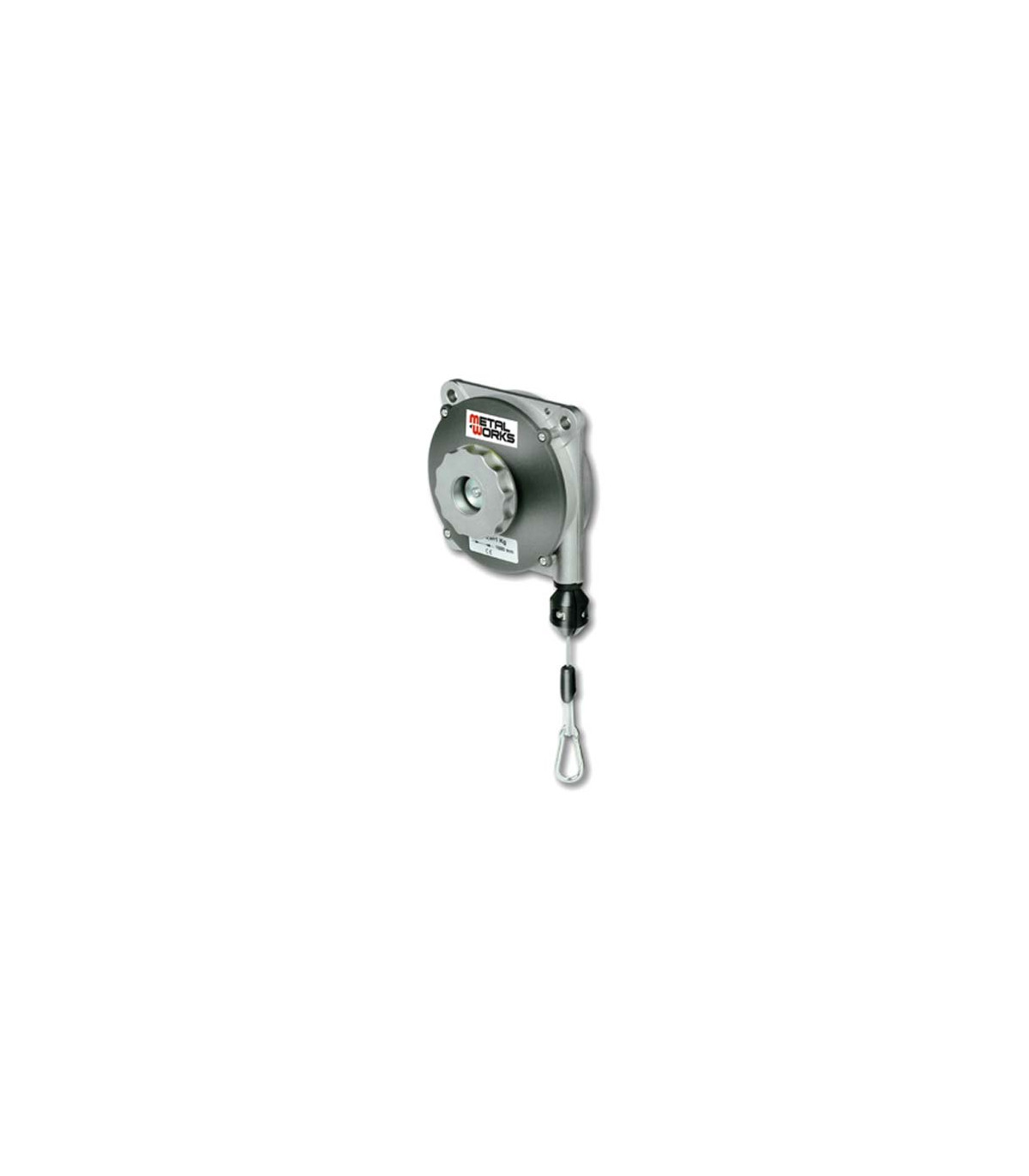

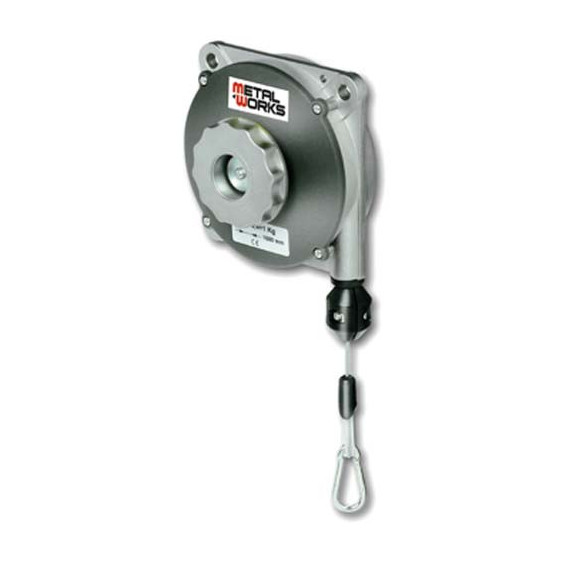

Load balancer for tools 0.5 - 1.5 Kg METALWORKS

Load balancer for tools 0.5 - 1.5 Kg METALWORKS. Increases productivity and reduces operator fatigue. This load balancer supports tools weighing up to 1.5 kg, keeping them suspended and weightless, which facilitates repetitive movements on assembly lines and workstations.

FZ. Extremely durable cable spring. High quality in die-cast aluminum. Loads the weight and length of the cable. Made with top-quality material resistant to heavy-duty work. Aluminum structure. Steel suspension cable Ø 2.5 mm. Continuous load adjustment from maximum to minimum value. Cable travel easily adjustable to meet demands. Three suspension points.

FEATURES

This balancer, also known as a spring balancer, is designed to counteract the weight of pneumatic or electric tools. It allows for a simple adjustment of spring tension to match the exact weight of the tool. The retractable steel cable provides a travel distance of 1.6 meters, offering a wide range of motion. Its use reduces worker effort, prevents injuries, and avoids tools from falling or being damaged.

SPECIFICATIONS

• Cable length 1.6 m
  Dimensions 113 x 113 x 60 mm
  Weight 0.63 kg

APPLICATIONS

• Assembly lines in the automotive, electronics, and appliance industries.

• Use with pneumatic screwdrivers, drills, riveters, and other hand tools.

• Workstations that require vertical and repetitive movements.

• Improvement of ergonomics and safety in production workshops.
