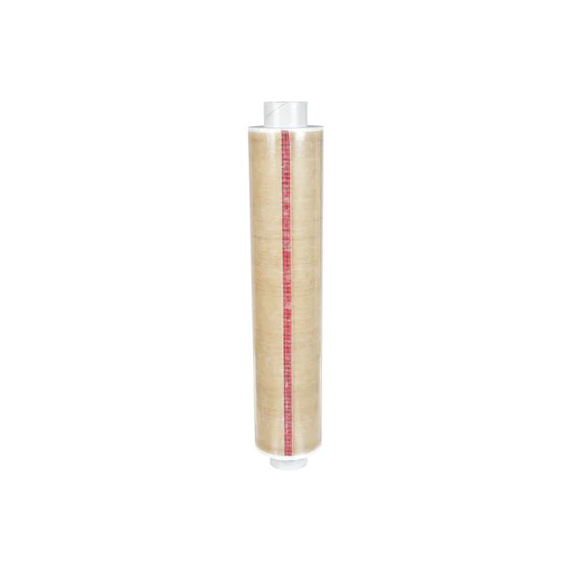

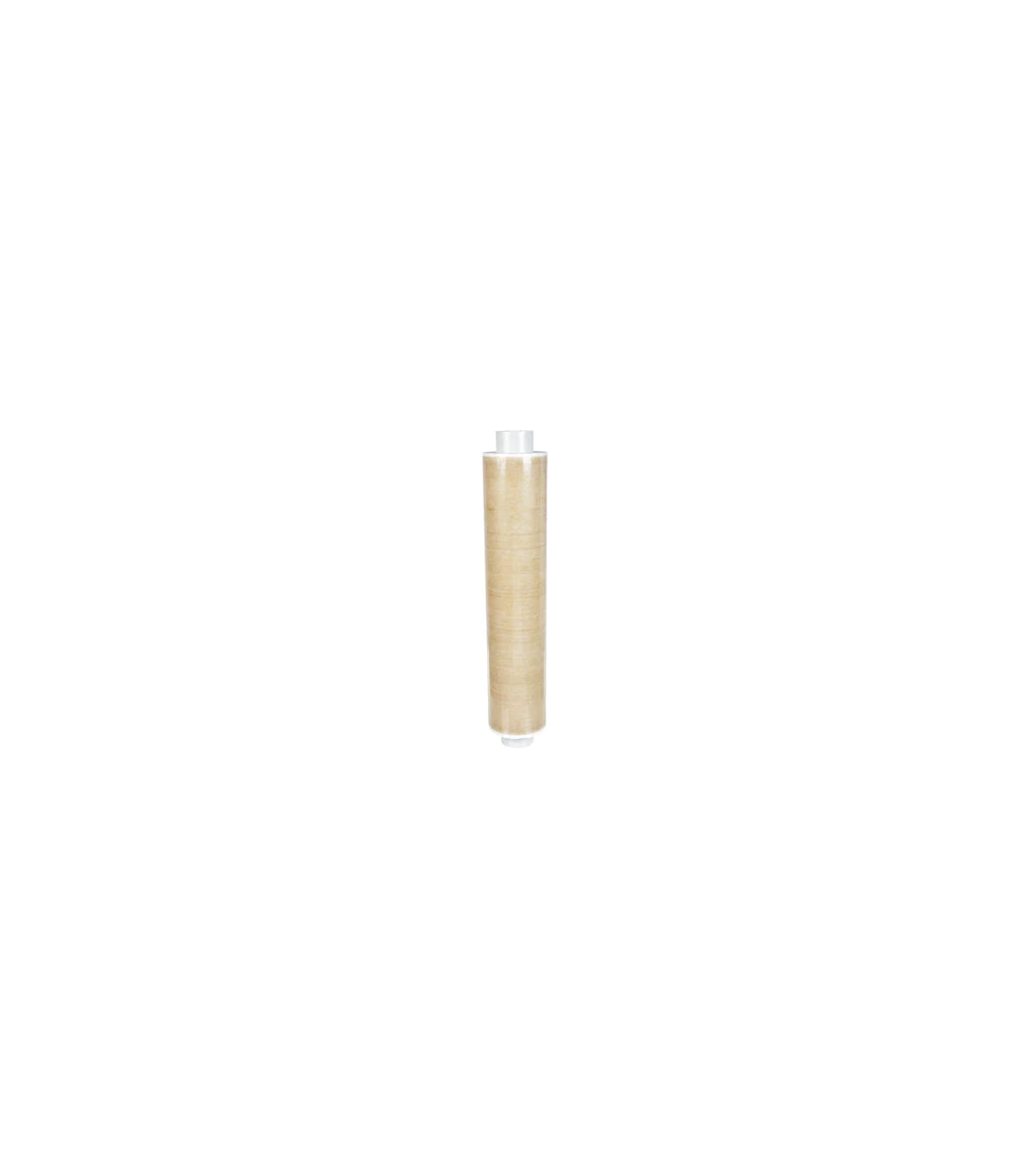

Composite tape up to 130° 44 - Thermoformed Rubber Adhesive - 596mm x 82m 3M. It offers excellent electrical properties and is resistant to puncturing.
SECURE PAYMENT WITH
SHIPMENTS
from 3,99€ + VAT. Free from €150 +VAT
EXCHANGES AND RETURNS
Free up to 14 days after purchase, excluding personalized and made-to-order products
EXCHANGES AND RETURNS
WE HELP YOU
+34 876 43 01 24
info@sekureco.eu
The combination of thermoset rubber adhesive and polyester mesh with a polyester film backing provides excellent adhesion and dielectric strength.
The 44 composite film electrical tape from 3M™ is a low-halogen electrical tape, edge-tear resistant, suitable for general-purpose insulation, as well as for anchoring and bands in motors and transformers. The tape is suitable for 600 V applications and withstands a temperature range of 0 to 130 °C (32 to 266 °F). The 44 composite film electrical tape from 3M™ features a combination of mesh and polyester film coated with a pressure-sensitive thermoset rubber adhesive.
This tape is highly resistant to heat, oxidation, solvents, and oils. This tape with high dielectric strength is robust, puncture-resistant, and offers excellent electrical properties. It is ideal for coils/transformers wound on rods, as well as for protecting starter cables, conductors, terminal blocks, insulating paper, and end turns.
Supply: 5 to 10 working days
The 44 composite film electrical tape from 3M™ is a low-halogen electrical tape, edge-tear resistant, suitable for general-purpose insulation, as well as for anchoring and bands in motors and transformers. The tape is suitable for 600 V applications and withstands a temperature range of 0 to 130 °C (32 to 266 °F).
| Total width (metric system) | 596.9 mm |
| Application | Insulation |
| Expiration | 5 years |
| Elongation at break | 50 Percent |
| Total thickness of tape without liner (metric system) | 0.13 mm |
| Electrolytic corrosion factor | 1 |
| Total length (metric system) | 82.296 m |
| Insulation resistance | > 10^6 megohms |
| Dielectric strength | 5500 V |
| Maximum operating temperature (Celsius) | 130 °C |
| Type of Adhesive | Thermosetting rubber |
Has UL certification and complies with the RoHS 2011/65/EU directive.
