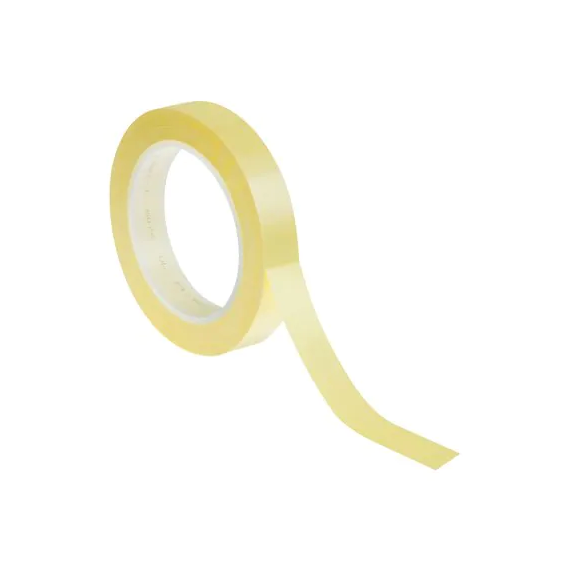

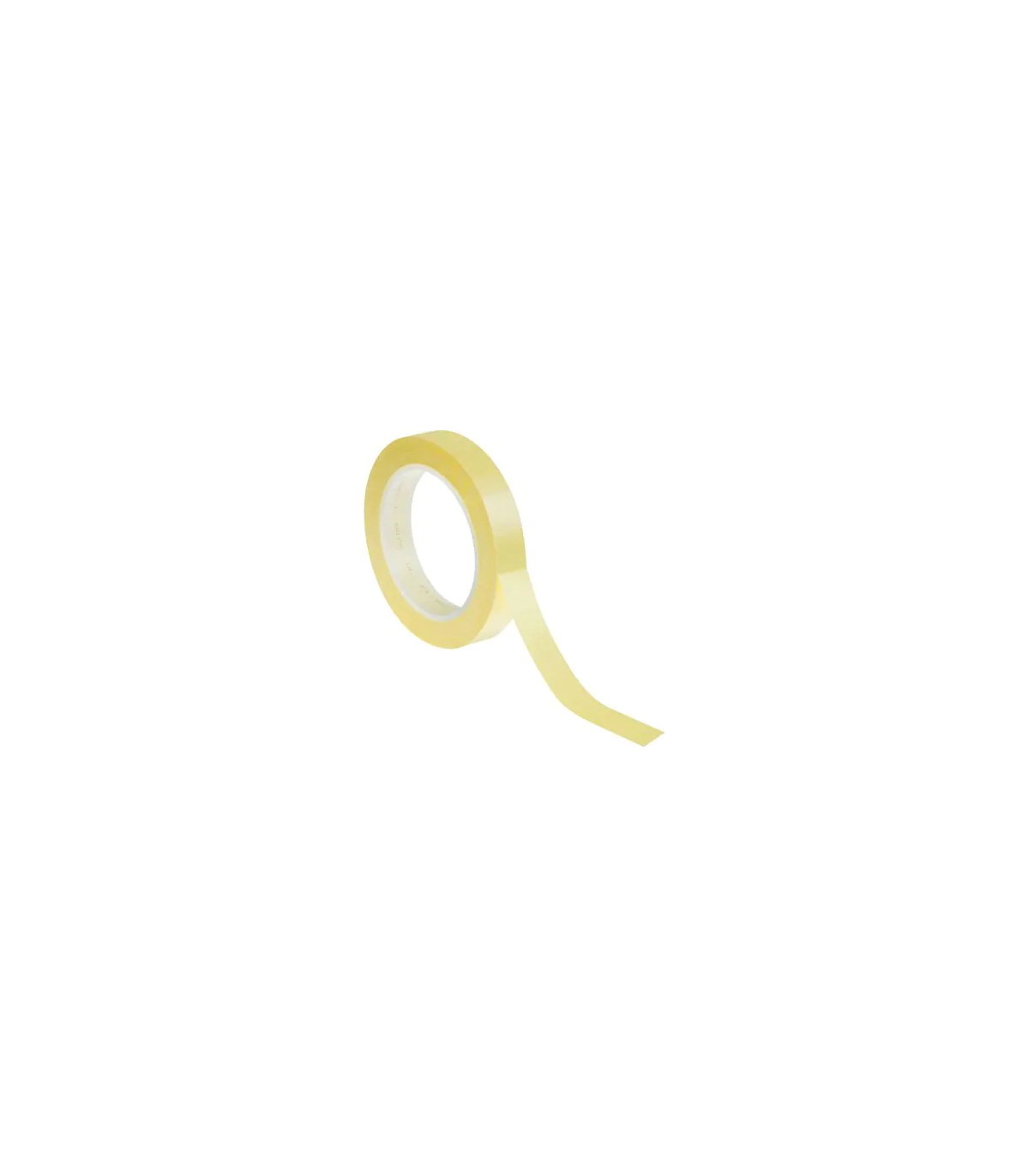

Polyester adhesive tape 19mm x 66m x 0.06mm yellow 1350F-1 3M
Polyester adhesive tape of 19mm x 66m x 0.06mm yellow 1350F-1 3M. Available in 1 mil and 2 mil thickness versions. Printable.
Printable and resistant to solvents without thermosetting.
€13.45 (no TAX)
Polyester adhesive tape of 19mm x 66m x 0.06mm yellow 1350F-1 3M. The 1350 tape from 3M™ is a polyester film tape with electrical insulation that meets the UL 510 fire resistance requirements. It is made of materials that are represented in many insulation systems recognized by UL and has a UL temperature rating of 130 °C. It also offers excellent peel and solvent resistance, has good wet grip, unwinds smoothly and evenly, and is suitable for use in automated equipment.
The 1350 electrical tape from 3M™ is a general-purpose polyester film tape that has a thermoset rubber adhesive that provides excellent adhesion. This high-temperature tape provides excellent resistance to chemicals, solvents, moisture, abrasion, and cutting. It complies with the RoHS 2011/65/EU directive.
Supply: 5 to 10 working days
FEATURES
- 1 mil and 2 mil thickness versions.
- Printable.
- Solvent resistant without thermosetting.
- Long shelf life.
- Flame retardant with UL approval
- With UL class 130°C/CSA approval
SPECIFICATIONS
|
Total width (metric system) |
19 mm |
|
Expiration |
5 years |
|
Product color |
Yellow |
|
Break elongation |
100.0 Percent |
|
Backing thickness (metric system) |
0.025 mm |
|
Total thickness of tape without liner (metric system) |
0.064 mm |
|
Electrolytic corrosion factor |
1.0 |
|
Total length (metric system) |
66 m |
|
Marks |
3M™ |
|
Backing material |
Polyester |
|
Insulation resistance |
> 10^6 megohms |
|
Dielectric strength |
5500 V |
|
Maximum operating temperature (Celsius) |
130 °C |
|
Type of Adhesive |
Acrylic |
BENEFITS
- The 1350 tape from 3M™ is a polyester film tape with electrical insulation that meets the UL 510 fire resistance requirements.
- It is made of materials that are represented in many insulation systems recognized by UL and has a UL temperature rating of 130 °C.
- It also offers excellent peel and solvent resistance, has good wet grip, unwinds smoothly and evenly, and is suitable for use in automated equipment.
APPLICATIONS
The 1350 electrical tape from 3M™ is a general-purpose polyester film tape that has a thermoset rubber adhesive that provides excellent adhesion. This high-temperature tape provides excellent resistance to chemicals, solvents, moisture, abrasion, and cutting.
TECHNICAL DATA
| Total width (metric system) | 19 mm |
| Expiration | 5 years |
| Product color | Yellow |
| Break elongation | 100 Percent |
| Total thickness of tape without liner (metric system) | 0.064 mm |
| Electrolytic corrosion factor | 1 |
| Total length (metric system) | 66 m |
| Insulation resistance | > 10^6 megohms |
| Dielectric strength | 5500 V |
| Maximum operating temperature (Celsius) | 130 °C |
| Type of Adhesive | Acrylic |
REGULATION
Complies with the RoHS 2011/65/EU directive.
