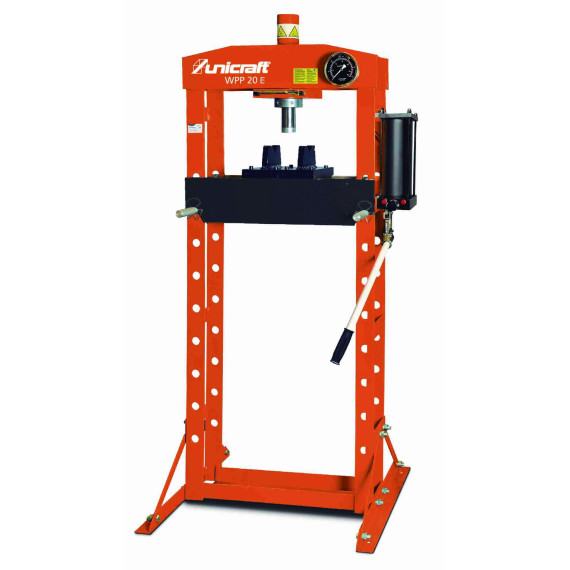

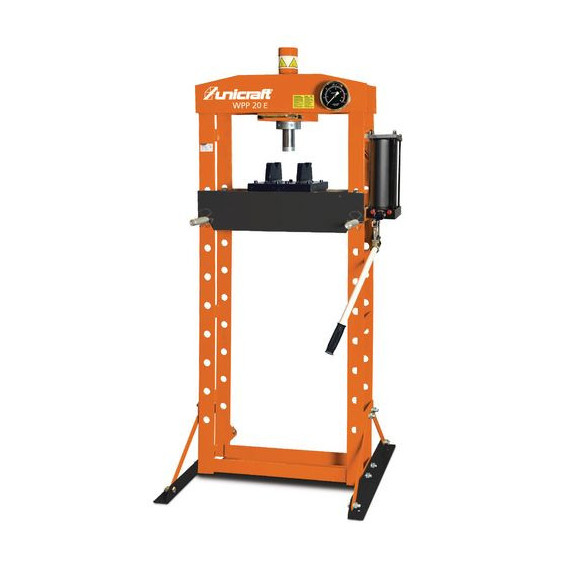

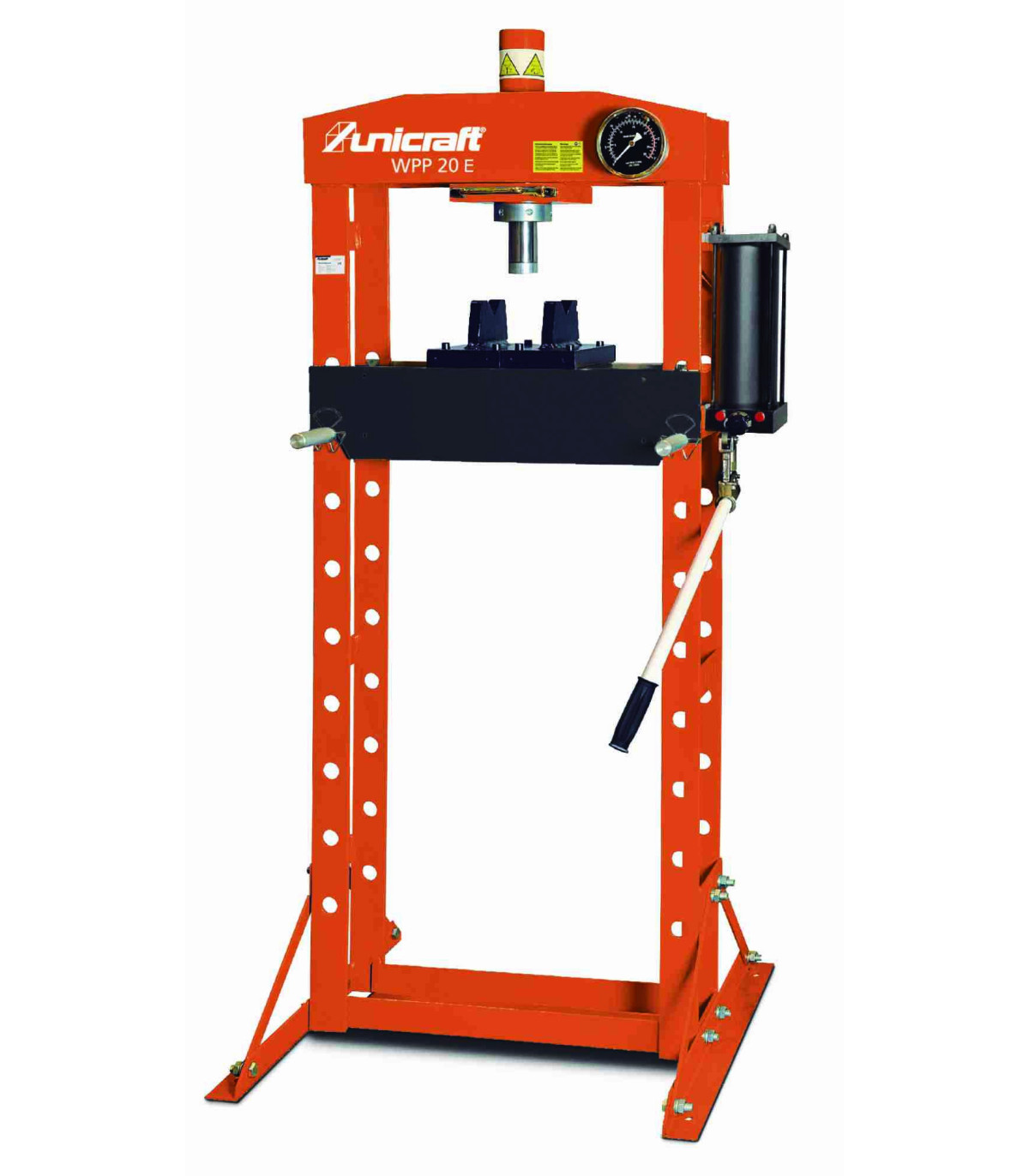

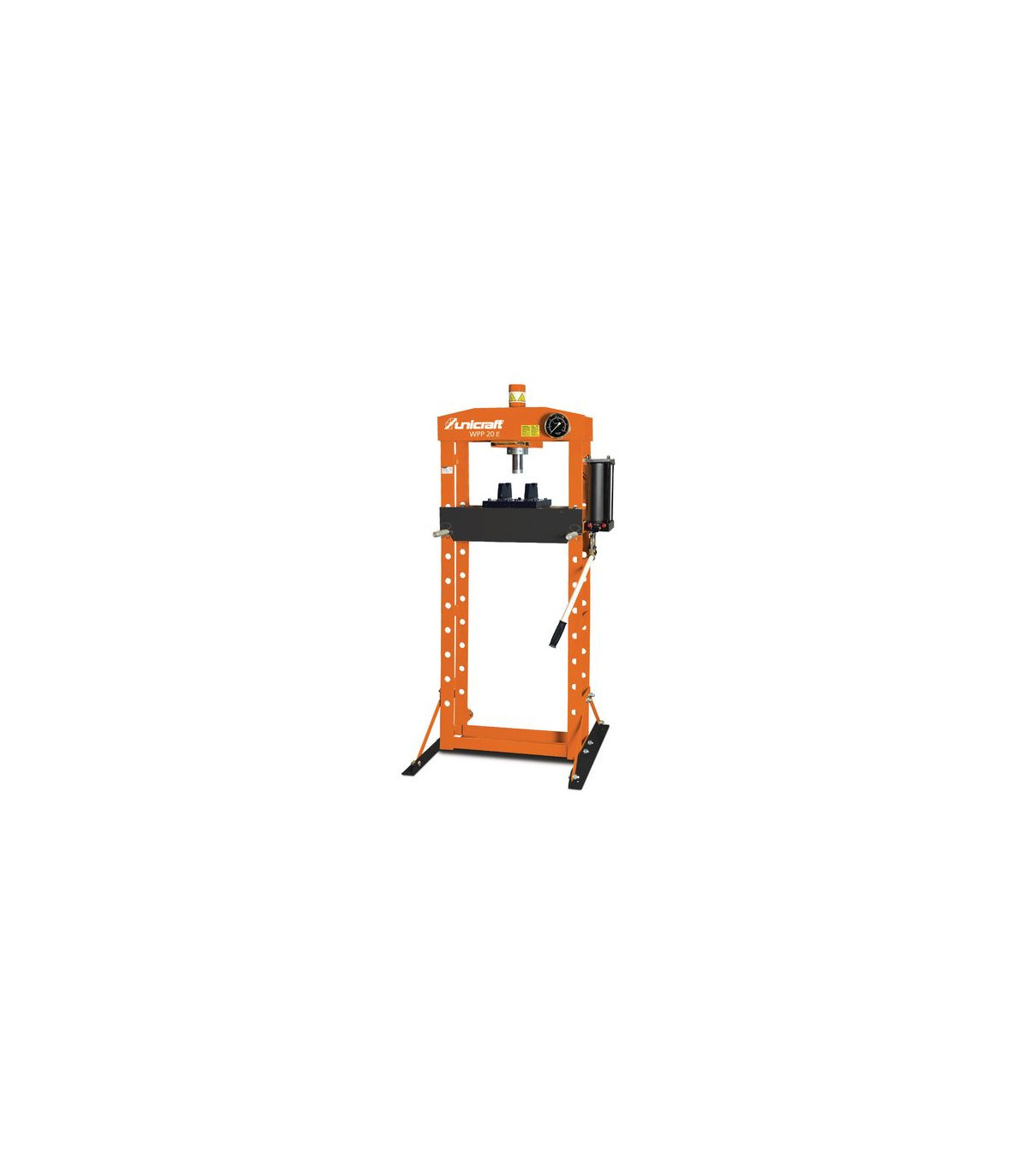

Hydraulic press with movable cylinder WPP 20 E UNICRAFT

Hydraulic press with movable cylinder WPP 20 E UNICRAFT. The WPP 20 E UNICRAFT hydraulic press, with a movable cylinder, is ideal for crafts and repairs in schools, workshops, and garages. It offers 20 tons of pressure force, a cylinder with a return spring, and a manometer to visualize the pressure. Its height-adjustable table and robust frame make it versatile for metal work, vehicle maintenance, parts manufacturing, and recycling.

FEATURES

• Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry, and horticulture.
• Press cylinder with integrated return spring
• Pressure visualization via manometer
• Robust welded frame with perforation: press table with height adjustable in ten levels with locking pin
• Piston feeding via manual hydraulic pump
• Lateral movable cylinder

TECHNICAL SPECIFICATIONS

Pressure force 20 tons

Piston stroke 186.5 millimeters

Piston travel 176 millimeters

Piston travel by operation pedal pumping 4.92 millimeters

VPE 1

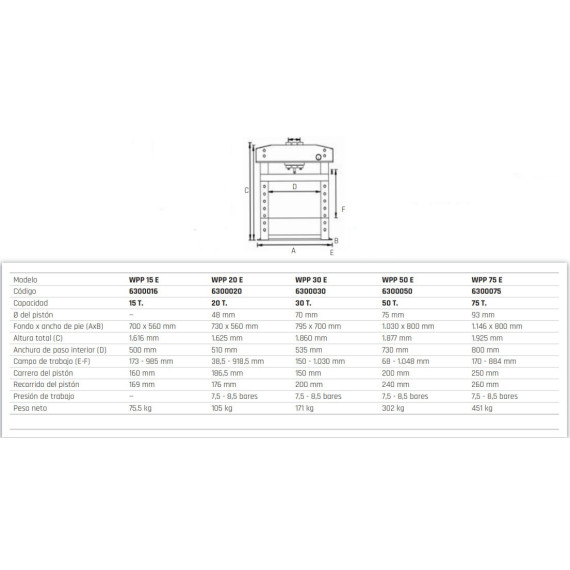

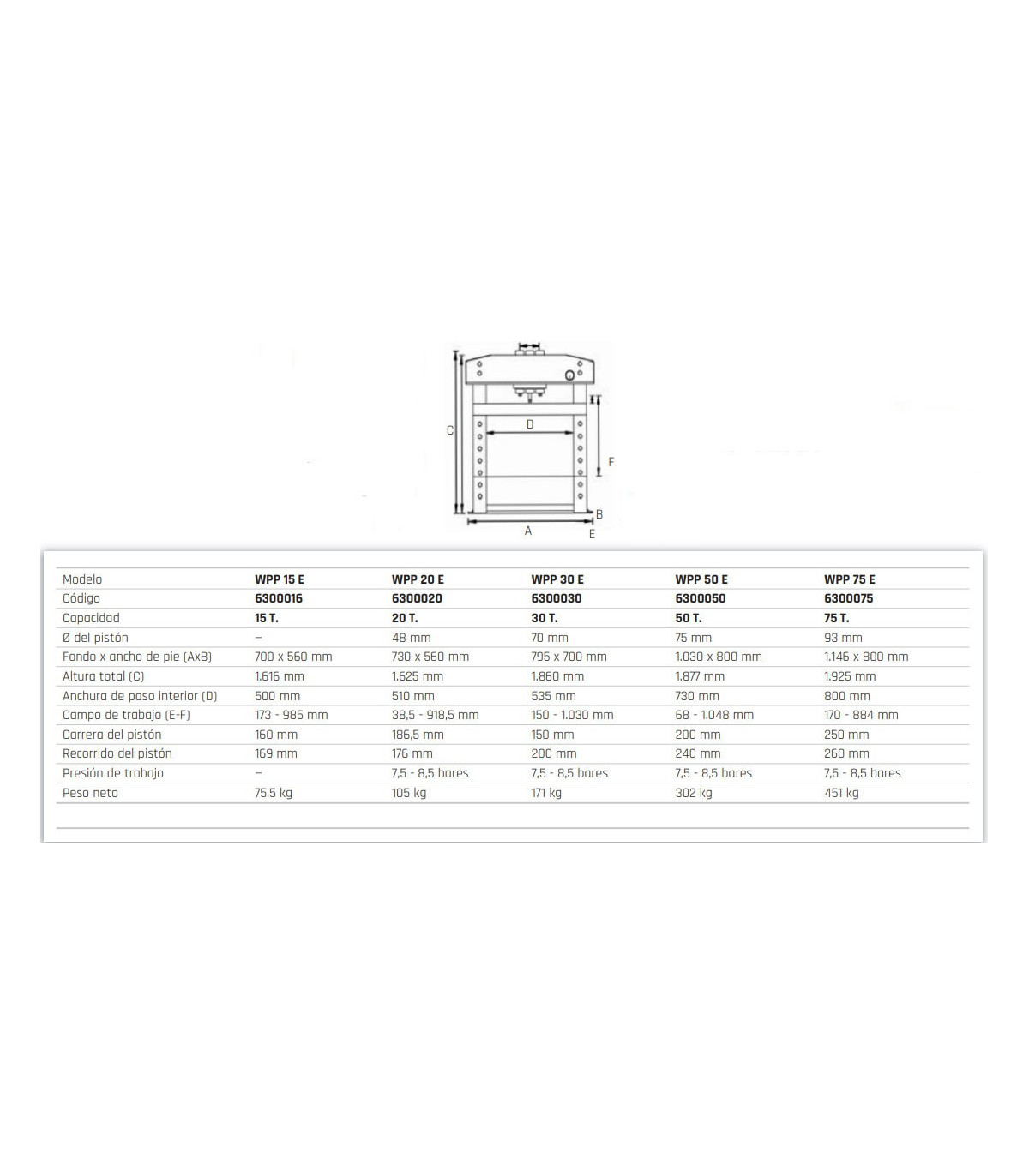

Dimensions and weights

Piston rod diameter 48 millimeters

Free width 510 millimeters

Minimum free height 38.5 millimeters

Maximum free height 918.5 millimeters

Hole spacing for table height adjustment 110 millimeters

Frame depth 132 millimeters

Width/depth of machine legs 560 millimeters

Approximate length 730 millimeters

Approximate width/depth 560 millimeters

Approximate height 1625 millimeters

Approximate weight 105 kilograms

Hydraulic system

Hydraulic oil tank capacity 1.8 liters

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The hydraulic press with movable cylinder WPP 20 E UNICRAFT is suitable for:

• Metal work
• Vehicle maintenance
• Parts manufacturing
• Material testing
• Recycling

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
