Hydraulic press with movable cylinder WPP 30 E with welded chassis UNICRAFT

Hydraulic press with movable cylinder WPP 30 E with welded chassis UNICRAFT. The WPP 30 E hydraulic press from UNICRAFT, with a welded chassis, is perfect for crafts and repairs in schools, workshops, and agriculture. It offers 30 tons of pressure force, a laterally movable cylinder, and a pressure gauge to measure the pressure. Its height-adjustable table and the option for piston feeding via manual pump or pneumatic pedal make it a versatile and robust tool for various applications.

FEATURES

• Ideal for use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry, and horticulture.
• Includes laterally movable cylinder and pressure reading gauge.
• Pressure visualization via gauge
• Robust welded chassis with perforation: press table with height adjustable in ten levels with locking pin
• With laterally movable cylinder
• Possibility of piston feeding via hydraulic manual pump or pneumatic pedal.

TECHNICAL SPECIFICATIONS

Pressure force 30 tons

Piston stroke 150 millimeters

Piston travel 200 millimeters

Piston speed with pedal 2.66 mm/s

Piston travel by pumping operation pedal 3.25 millimeters

VPE 1

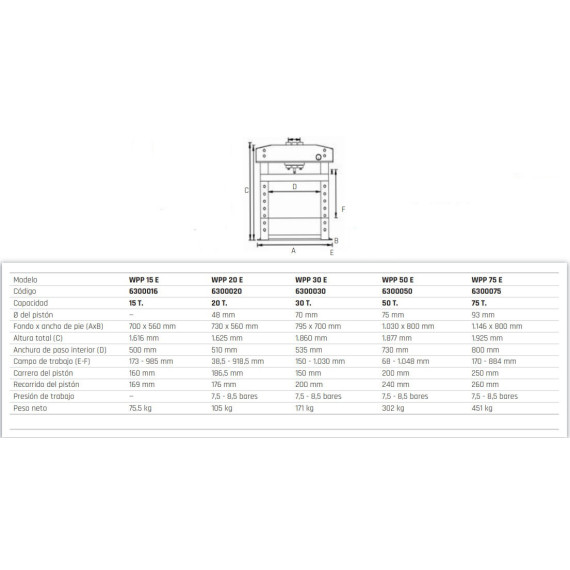

Dimensions and weights

Piston rod diameter 70 millimeters

Free width 535 millimeters

Min. free height 150 millimeters

Max. free height 1030 millimeters

Hole spacing for table height adjustment 110 millimeters

Frame depth 140 millimeters

Width/depth of the machine legs 700 millimeters

Approx. length 795 millimeters

Approx. width/depth 700 millimeters

Approx. height 1800 millimeters

Approx. weight 171 kilograms

Hydraulic system

Hydraulic oil tank capacity 1.8 liters

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The hydraulic press with movable cylinder WPP 30 E with welded chassis UNICRAFT is suitable for:

• School
• Workshops
• Garages
• Agriculture
• Forestry

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
