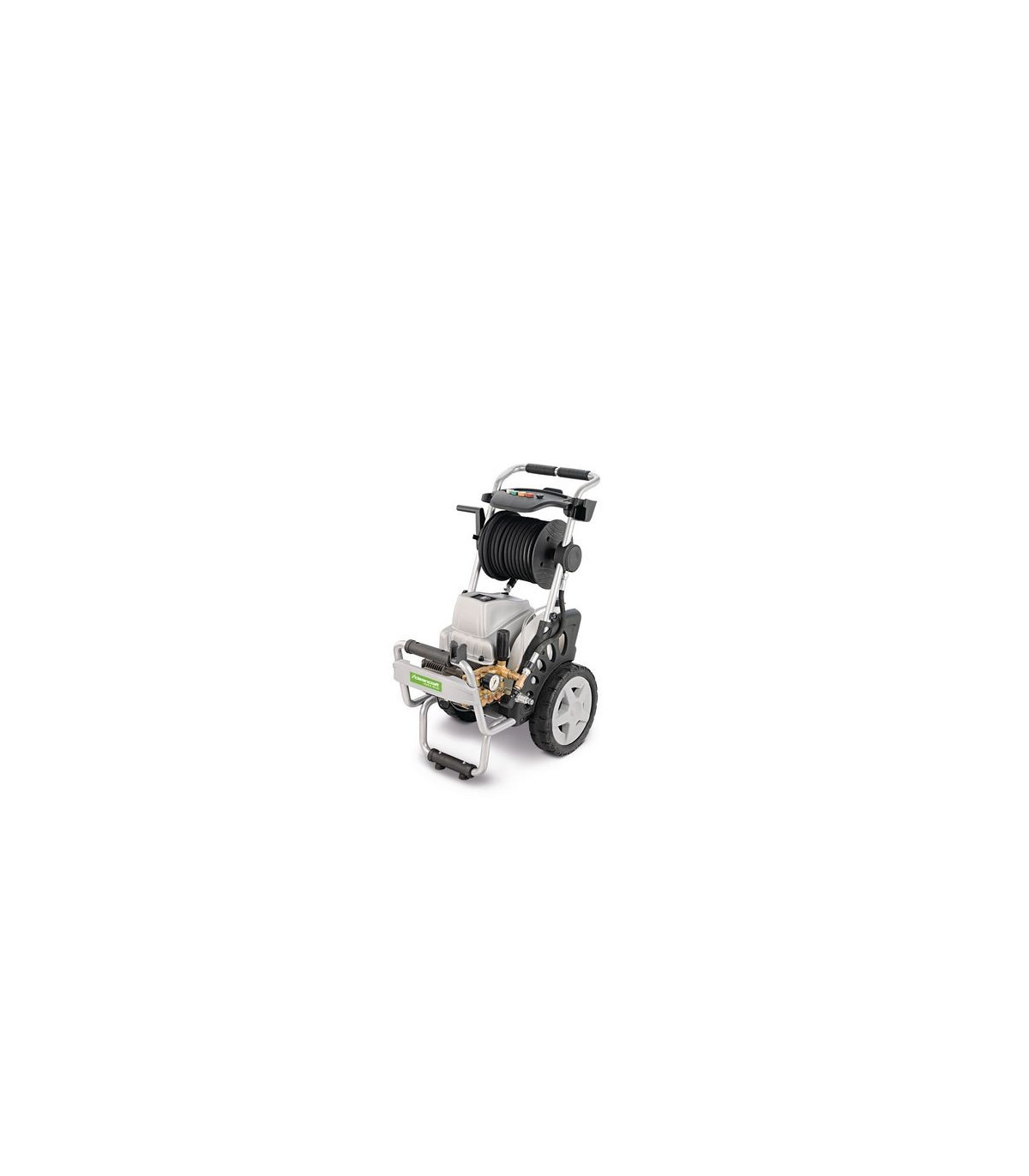

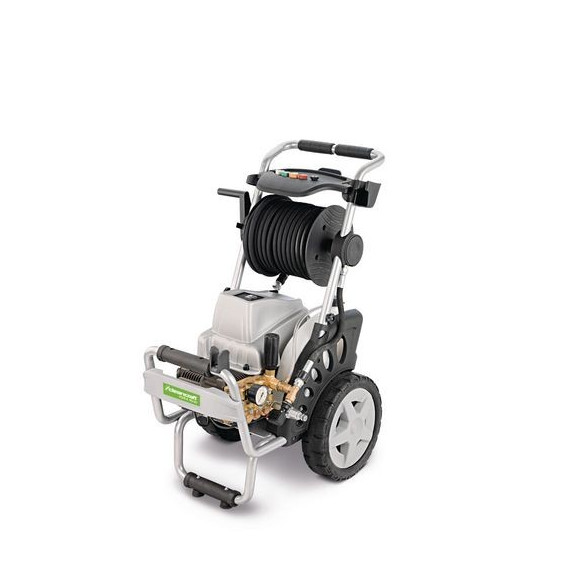

Cold water pressure washer HDR-K 90-20 with CLEANCRAFT detergent tank

Cold water pressure washer HDR-K 90-20 with CLEANCRAFT detergent tank. The CLEANCRAFT HDR-K 90-20 cold water pressure washer, featuring a sturdy cart and detergent tank, offers adjustable pressure and a timed control that minimizes wear. Its powerful axial pump ensures durability, making it ideal for outdoor use, vehicles, and more.

FEATURES

• Mobile model with a robust transport cart and handle.
• Integrated detergent tank with easy detergent dosing.
• Adjustable working pressure for adaptation to the respective cleaning task, with pressure visualization via a pressure gauge.
• Timed Total Stop pump control that reduces fatigue and wear: Starts and stops the pump motor with a soft start during operation and a delayed shutdown of forty seconds, controlled by opening and closing the gun - its benefit: Fatigue-free operation with fewer pressure spikes, no overheating of the pump due to frequent on/off cycles, longer lifespan of all components.
• Long lifespan thanks to the three-piston axial pump with a crankshaft system and brass head, ceramic piston.
• Increased lifespan of the pump head due to the automatic safety valve, oil level indicator, and oil level rod.
• Durable 4-pole electric motor with slow operation for intensive use.
• The motor cooling fan and motor protection switch protect the induction motor from thermal overload.
• High-quality threaded connections.
• Easy-to-check and maintain water filter to protect the pump from dirt particles in the water.
• Integrated storage option for the nozzle set.
• Practical holders for the manual spray gun, jet tube, high-pressure hose, and power cable.
• Interchangeable nozzle accessories for different spray angles.
• Quality made in Europe.
• Can operate with a water tank or similar: the HDR-K is self-priming up to a depth of 0.5 m.

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 670 millimeters

Approximate width/depth: 540 millimeters

Approximate height: 900 millimeters

Approximate weight: 61.6 kilograms

Electrical data

Input power: 7.4 kW

Connection cable length: 5 meters

Supply voltage: 400 volts

Network frequency: 50 Hz

Noise emission

Sound pressure level: 82.3 dB(A)

Pump

Working pressure: 185 bars

Maximum pump pressure: 215 bars

Maximum flow rate: 900 l/h

Operating position: upright

Water connection

Maximum inlet water temperature: 60 °C

VPE: 1

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

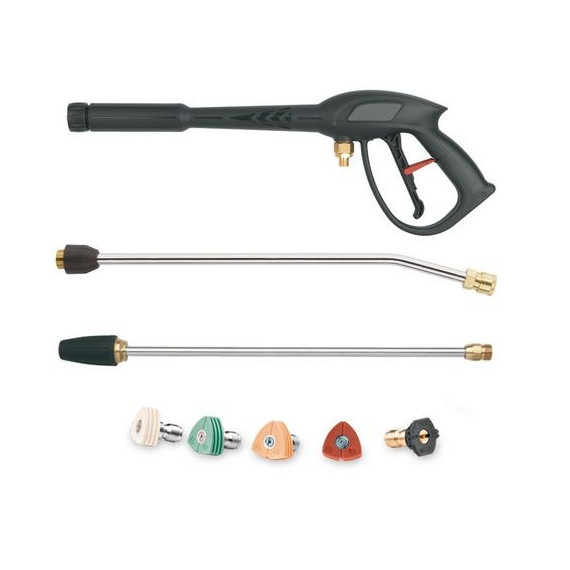

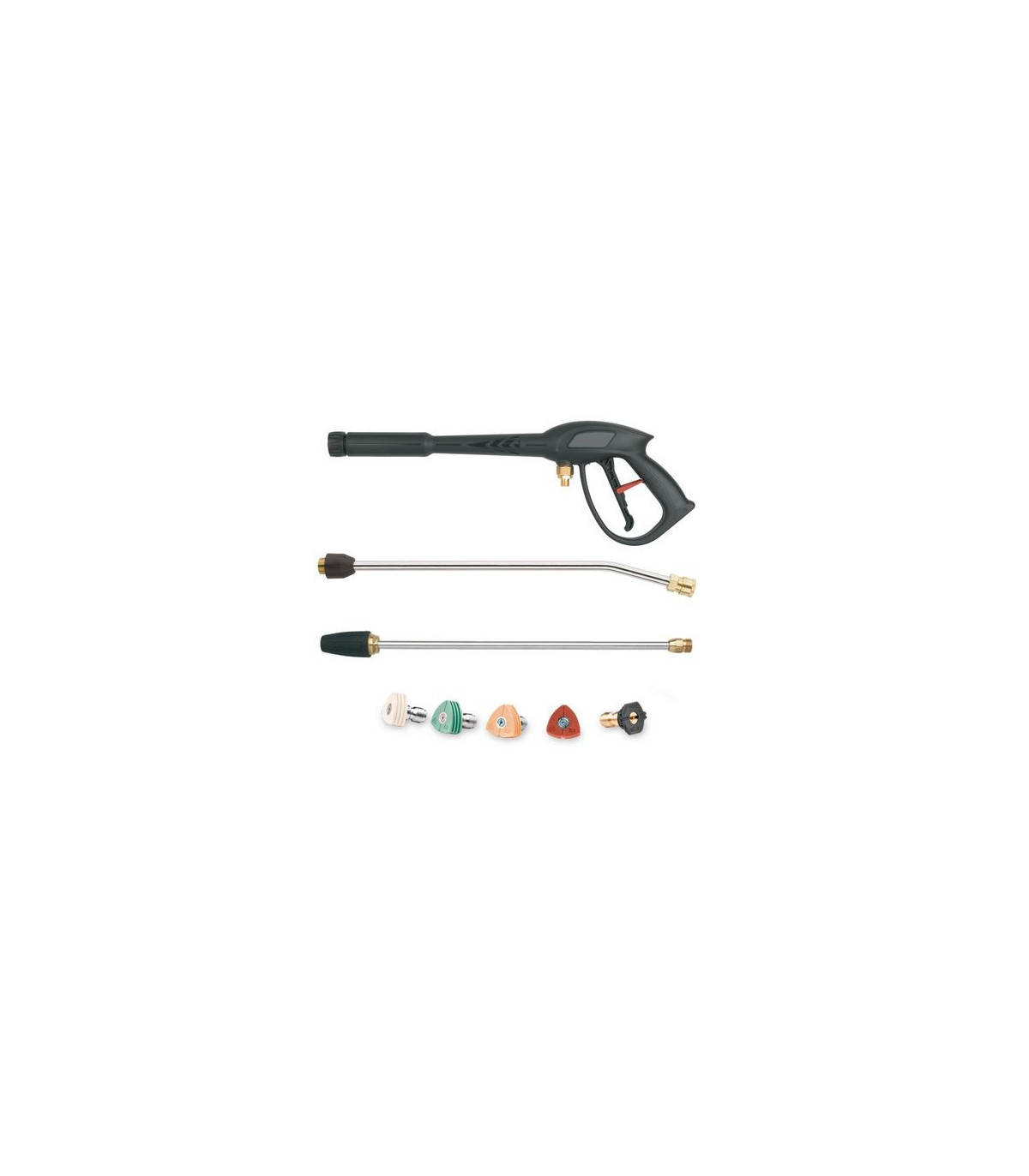

• Trigger gun
• lance
• 5-piece quick-change nozzle set (point jet 0°, fan jet 15°/25°/40°, foam application)
• Nozzle cleaning needle
• Water connection set with filter
• Integrated detergent tank
• Integrated and lockable hose reel with crank
• 10 m high-pressure hose

EQUIPMENT

Piston: Ceramic

Pump control: Timed total stop

Self-priming pump: ✔

Cleaning agent tank: 3 liters

Cleaning agent regulation: ✔

High-pressure hose pressure bearing: Steel reinforcement

Length of high-pressure hose: 10 meters

Water filter: ✔

Regulated working pressure: ✔

Pressure gauge for working pressure: ✔

Integrated hose reel: ✔

Pump outlet hose connection: Screw connection M22x1.5

Manual spray gun hose connection: Screw connection M22x1.5

Wheels: 300 millimeters

Head material: Brass

FOR WHAT TYPE OF WORK IS IT SUITABLE

The CLEANCRAFT HDR-K 90-20 cold water pressure washer with detergent tank is suitable for:

• Outdoors
• Vehicles
• Terraces
• Facades
• Garden
• Cleaning tools and work equipment
