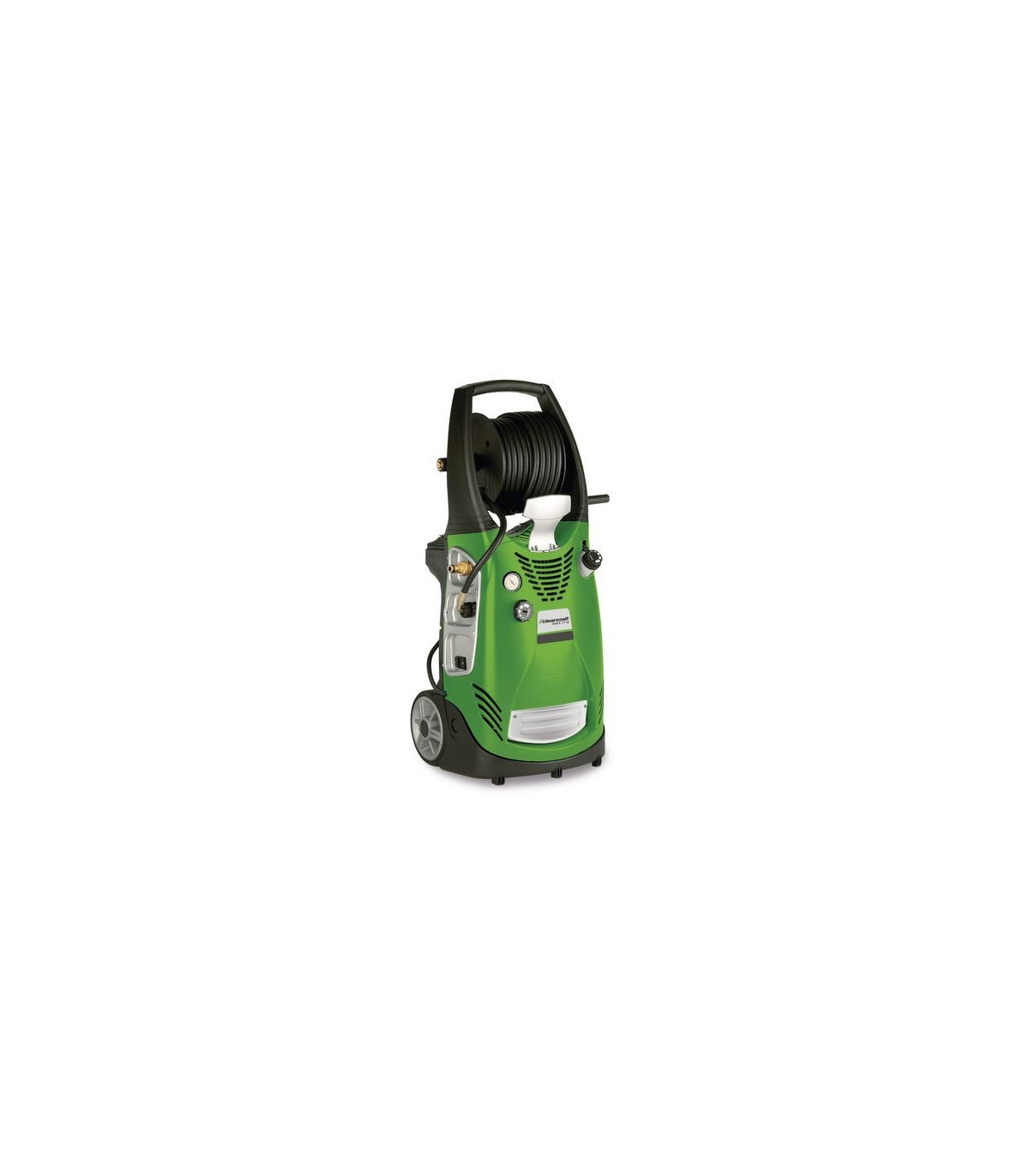

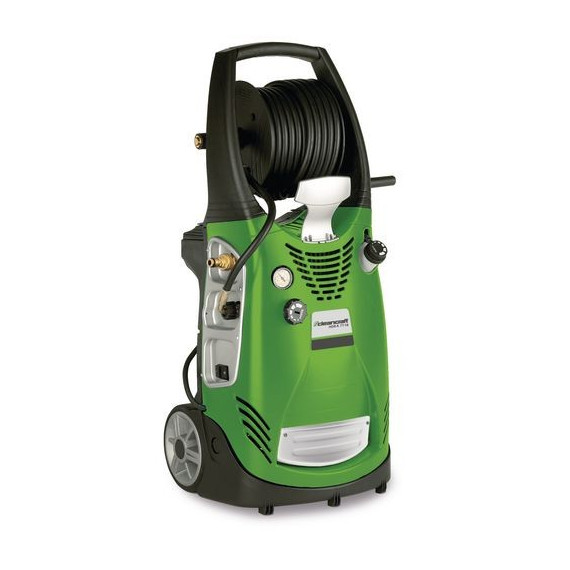

Cold water pressure washer HDR-K 77-18 with adjustable pressure CLEANCRAFT

Cold water pressure washer HDR-K 77-18 with adjustable pressure CLEANCRAFT. The cold water pressure washer HDR-K 77-18 CLEANCRAFT, mobile and with adjustable pressure up to 170 bars, is ideal for various tasks. It features a detergent tank, a pressure gauge to visualize the pressure, and a robust axial pump. Perfect for outdoors, vehicles, and more.

FEATURES

• Mobile model with two wheels and handle.
• Integrated detergent tank with easy detergent dosing, activation of foam application via multifunction nozzle.
• Adjustable working pressure for adaptation to the respective cleaning task, pressure visualization through a pressure gauge.
• Practical supports for manual spray gun, jet tube, high-pressure hose, and power cable.
• Total Stop pump control: start and stop without delay of the pump motor when opening and closing the gun.
• Long service life thanks to the three-piston axial pump with a crankshaft system and brass head, stainless steel piston.
• Durable, slow-running 4-pole electric motor for intensive use.
• The motor protection switch protects the induction motor from overloads.
• Easy-to-check and maintain water filter to protect the pump from dirt particles in the water.
• High-quality threaded connections.
• Possibility of horizontal storage, device operation only in horizontal position.
• Operation with a water tank or similar is possible: the HDR-K is self-priming up to a depth of 0.5 m.
• Very robust 3-piston axial pump with brass head and stainless steel piston.
• Powerful in continuous operation.
• High-quality threaded connections.

TECHNICAL SPECIFICATIONS

Dimensions and weights

Approximate length: 390 millimeters

Approximate width/depth: 380 millimeters

Approximate height: 900 millimeters

Approximate weight: 47 kilograms

Electrical data

Input power: 5 kW

Connection cable length: 5 meters

Supply voltage: 400 volts

Network frequency: 50 Hz

Noise emission

Sound pressure level: 78 dB(A)

Pump

Working pressure: 170 bars

Maximum pump pressure: 180 bars

Maximum flow rate: 770 l/h

Operating position: horizontal

Water connection

Maximum inlet water temperature: 60 °C

VPE: 1

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

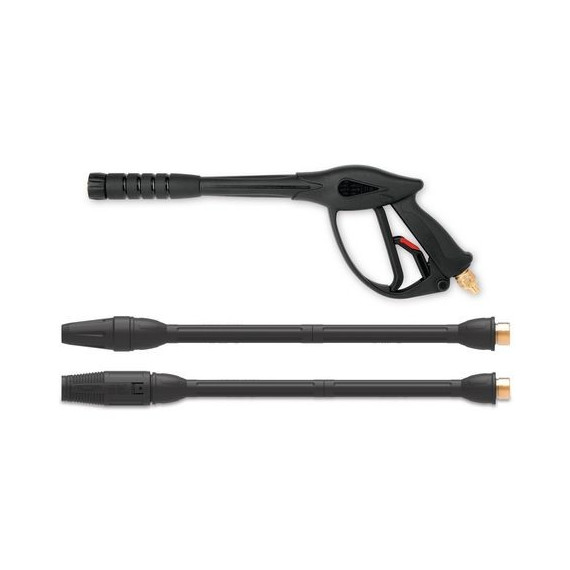

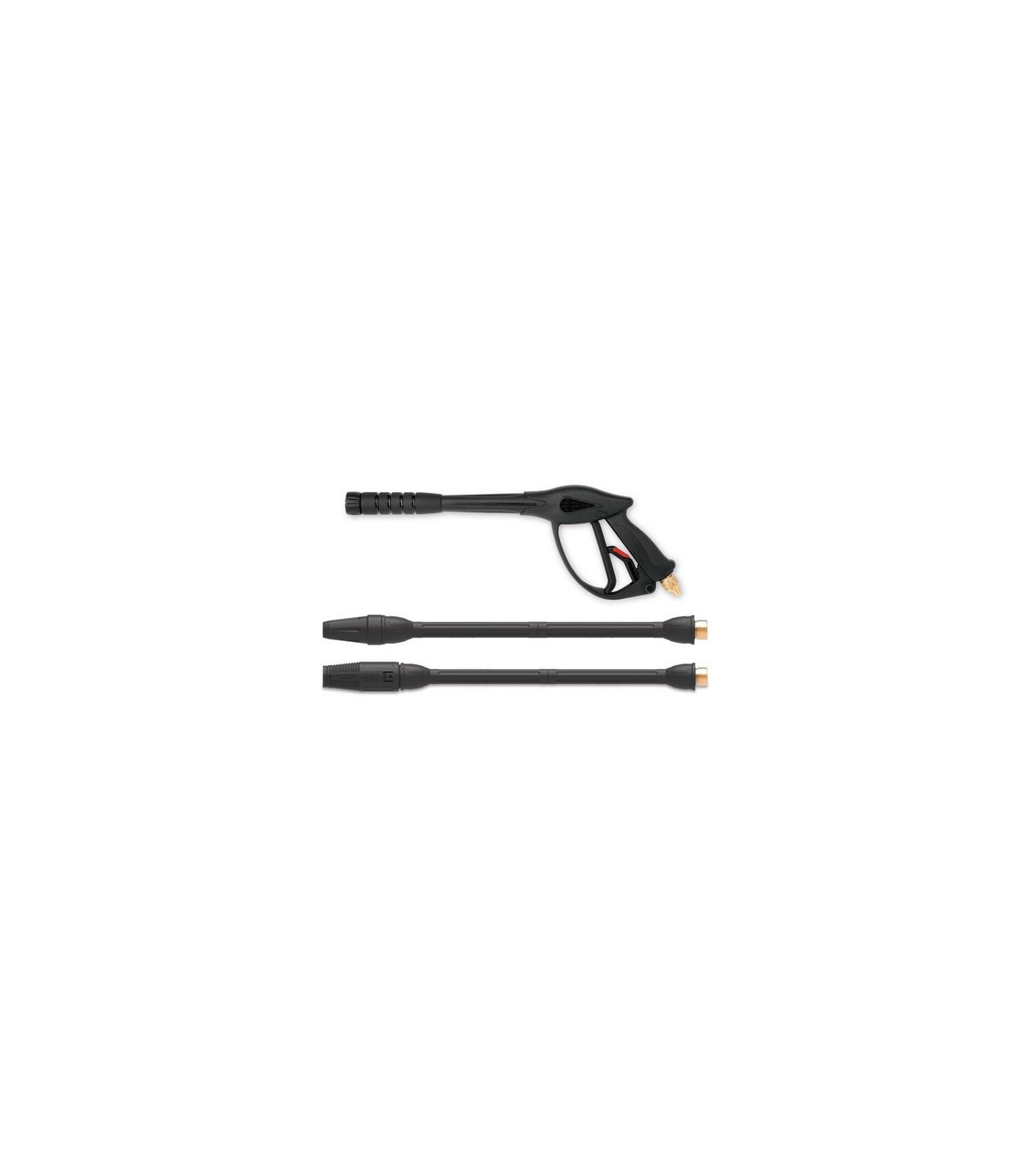

• Trigger gun
• Jet tube with multifunction nozzle for point jet and fan jet with gradual angle adjustment and foam application
• Nozzle cleaning needle
• Water connection set with filter
• Integrated detergent tank
• Integrated and lockable hose reel with crank
• High-pressure hose of 10 m

EQUIPMENT

Piston: stainless steel

Pump control: Total Stop

Self-priming pump: ✔

Cleaning agent tank: 2 liters

Regulation of cleaning agents: ✔

High-pressure hose pressure bearing: Steel reinforcement

Length of high-pressure hose: 10 meters

Water filter: ✔

Regulated working pressure: ✔

Pressure gauge for working pressure: ✔

Integrated hose reel: ✔

Pump outlet hose connection: Thread connection M22x1.5

Hose connection for manual spray gun: Thread connection M22x1.5

Wheels: 180 millimeters

Material of the head: Brass

FOR WHAT TYPE OF WORK IS IT SUITABLE

The cold water pressure washer HDR-K 77-18 with adjustable pressure CLEANCRAFT is suitable for:

• Outdoors
• Vehicles
• Terraces
• Facades
• Garden
• Cleaning tools and work equipment
