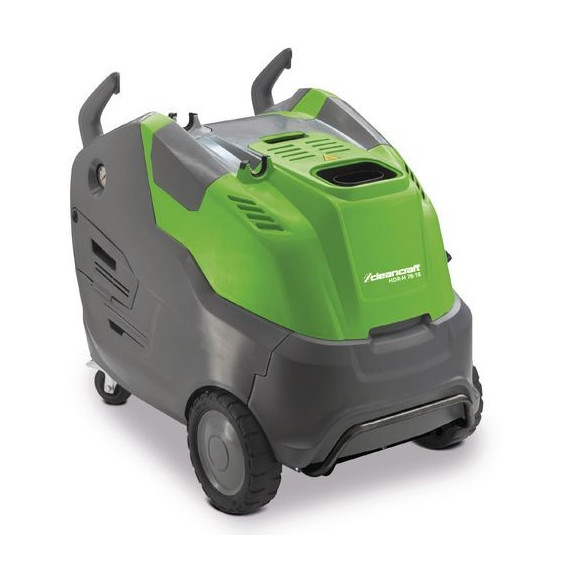

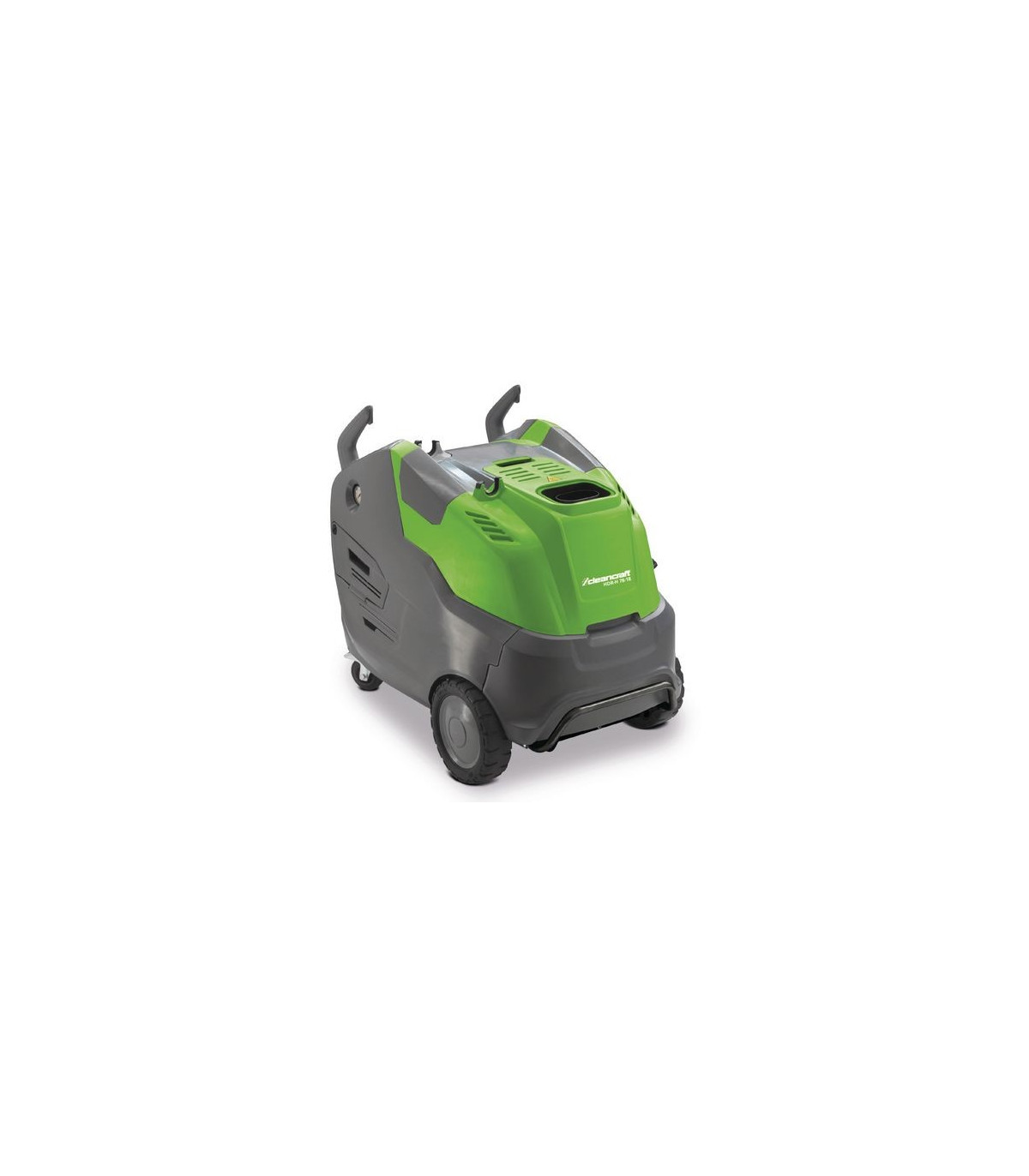

Hot water pressure washer HDR-H 78-18 CLEANCRAFT

Hot water pressure washer HDR-H 78-18 CLEANCRAFT. The HDR-H 78-18 pressure washer from CLEANCRAFT stands out for its adjustable pressure and temperature, allowing optimal use for various cleaning tasks, even with cold water. Its powerful 4-pole three-phase motor and Total-Stop-Timed control reduce fatigue and wear, extending the lifespan of the equipment.

With a robust 3-piston axial pump and anti-scale system, it is perfect for removing the most stubborn dirt without chemicals. Additionally, it includes a support for drawing detergent from an external tank and is easy to maneuver thanks to its ergonomic handle and large wheels. Ideal for industrial cleaning, machinery, cars, and more.

FEATURES

• Adjustable working pressure and water temperature for optimal adaptation to the respective cleaning task; operation with cold water is also possible.
• Steam level to remove the most stubborn dirt even without chemical additives
• Powerful and durable thanks to its slow-running 4-pole three-phase motor
• Total-Stop-Timed pump control that reduces fatigue and wear: Soft start and stop of the pump motor during operation and forty seconds of delayed shutdown, control by opening and closing the gun - Its advantage: Fatigue-free operation with fewer pressure spikes, no overheating of the pump due to frequent on and off, increasing the lifespan of all components
• Very robust 3-piston axial pump with brass head and ceramic piston.
• It is possible to draw detergent from an external tank, suction hose included.
• Effective protection against calcification through anti-scale device
• Practical supports for the spray tube and power cable
• Easy to maneuver thanks to its ergonomic handle, two large wheels, and two swivel wheels with parking brake.
• Possibility of loading via stable crane support
• Quality manufactured in Europe
• With a two-year warranty

BENEFITS

• Powerful slow-running 4-pole motor
• Steam level to loosen stubborn dirt
• Protection device against calcification
• Quality manufactured in Europe

TECHNICAL SPECIFICATIONS

Maximum operating pressure 180 bars

Maximum recommended operating time. 12 h/week

Maximum volumetric flow rate 780 liters per hour

Max temperature. 140 °C

Fuel diesel

VPE 1

Dimensions and weights

Approximate length. 950 millimeters

Approximate width/depth. 620 millimeters

Approximate height. 850 millimeters

Approximate weight. 115 kilos

Electrical data

Drive motor power absorbed 5.0 kW

Supply voltage 400 volts

Network frequency 50 Hz

Tank(s)

Fuel tank volume 18 liters

Fuel consumption 4.6 l/h

Cleaning agent tank capacity 3.5 liters

Anti-scale tank volume 2.5 liters

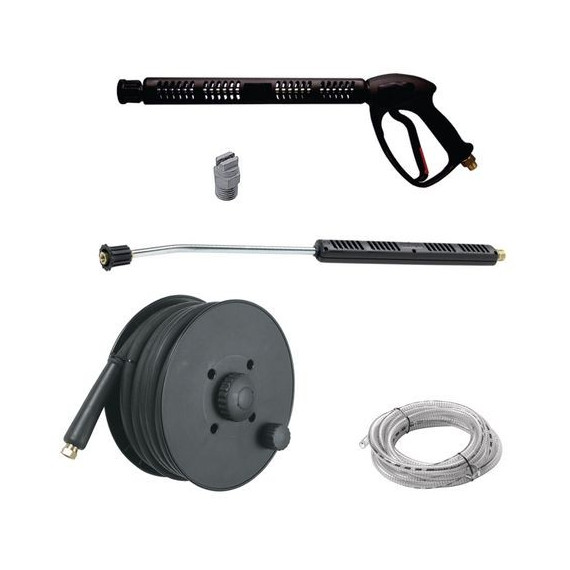

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

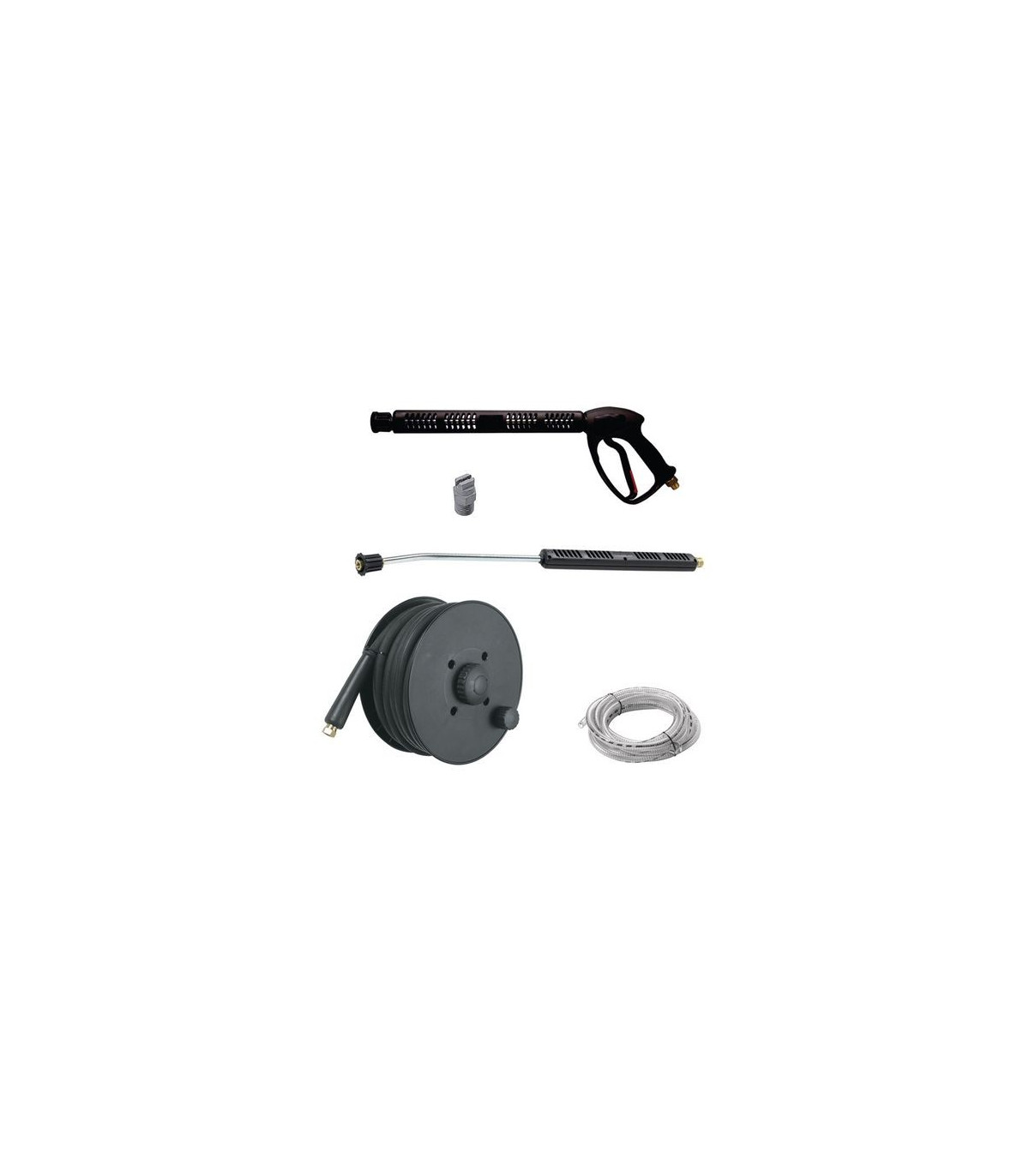

• Trigger gun
• lance
• 25° flat jet nozzle
• Hose reel with 15 m high-pressure hose
• Nozzle cleaning needle
• Detergent suction hose for external tank, 1 m

EQUIPMENT

Motor 4 poles, low speed

Pump 3-piston axial pump with brass head

Pump control Total-Stop-Timed

Self-priming pump ✔

Safety valve ✔

Integrated detergent tank ✔

Detergent tank 3.5 liters

Detergent control ✔

Detergent admission system High pressure, adjustable

Protection device against incrustations (tank, pump) ✔

Scale protection tank 2.5 liters

Water temperature can be regulated. ✔

Compatible with cold water operation ✔

Steam level ✔

Water filter ✔

Operating pressure can be regulated. ✔

Pressure gauge for operating pressure ✔

Delayed burner start ✔

Burner shutdown in case of flame extinction ✔

Flow monitoring ✔

Power indicator lamp ✔

Indicator lamp in case of fuel shortage ✔

Operation panel with extensive status indicators ✔

High-pressure hose 15 meters

High-pressure hose pressure bearing Reinforced rubber hose with textile fabric

Storage Supports for spray tube and power cable

Transport equipment/transport 2 large wheels, 2 swivel wheels with parking brake, rigid handles, crane support

Wheel diameter 260 millimeters

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Hot water pressure washer HDR-H 78-18 CLEANCRAFT is suitable for:

• Industrial cleaning
• Machinery
• Cars
• Building cleaning
• Food service
• Cleaning services
