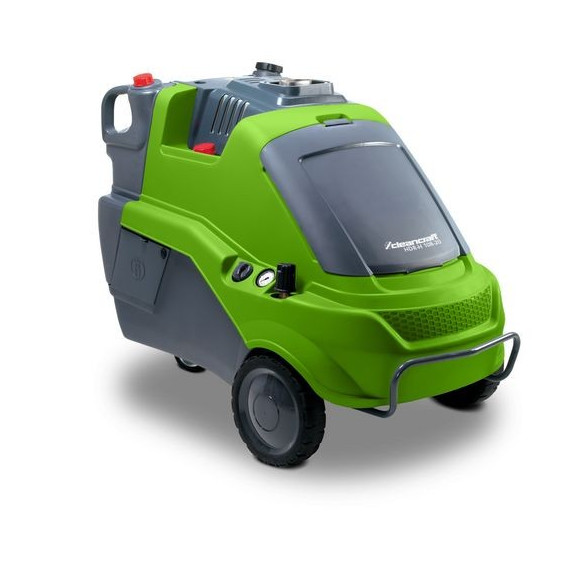

Hot water pressure washer HDR-H 108-20 CLEANCRAFT

Hot water pressure washer HDR-H 108-20 CLEANCRAFT. The HDR-H 108-20 pressure washer from CLEANCRAFT features a powerful 4-pole motor and an independent burner ventilation unit that allows for efficient water heating through diesel combustion. Its steam stage (85 to 140 °C) loosens stubborn dirt without chemicals.

The pressure and temperature are adjustable, and the Total-Stop control facilitates instant start and stop. Equipped with a ceramic and brass triplex pump, along with a scale protection system, it is easy to maneuver thanks to its ergonomic handle and large wheels. It also includes a large detergent tank and compartments for accessories.

FEATURES

• Adjustable working pressure and water temperature to suit the respective cleaning task.
• Water heating through diesel combustion
• Steam stage to eliminate stubborn dirt without chemical additives
• Total-Stop pump control: instant start and stop without delay of the pump motor when opening and closing the gun
• Triplex pump with ceramic piston and connecting rod system with brass pump head
• Effective and energy-saving water heating through an independent burner ventilation unit, which shuts off during operation with cold water.
• Effective protection against scale thanks to the anti-scale device
• Storage compartment for accessories and practical supports for high-pressure hoses and power cables.
• Easy to maneuver thanks to its ergonomic handle, two large wheels, and a swivel wheel.
• Quality - Manufactured in Europe
• Two-year warranty

BENEFITS

• Powerful and slow-running 4-pole motor.
• Independent burner ventilation unit
• Large detergent tank
• Steam stage (85 to 140 °C) to loosen stubborn dirt
• Anti-scaling device
• Quality manufactured in Europe

TECHNICAL SPECIFICATIONS

Maximum operating pressure 200 bars

Maximum recommended operating time. 40 h/week

Maximum volumetric flow rate 1080 l/h

Max temperature. 140 °C

Fuel diesel

VPE 1

Dimensions and weights

Approximate length. 1320 millimeters

Approximate width/depth. 820 millimeters

Approximate height. 960 millimeters

Approximate weight. 160 kilos

Electrical data

Drive motor absorbed power 7.6 kW

Supply voltage 400 volts

Network frequency 50 Hz

Tank(s)

Fuel tank volume 19 liters

Fuel consumption 6.4 l/h

Cleaning agent tank capacity 16 liters

Anti-scale equipment tank volume 2.5 liters

COMPONENTS/PACKAGING

Unit: pce(s).

Packaging unit: 1

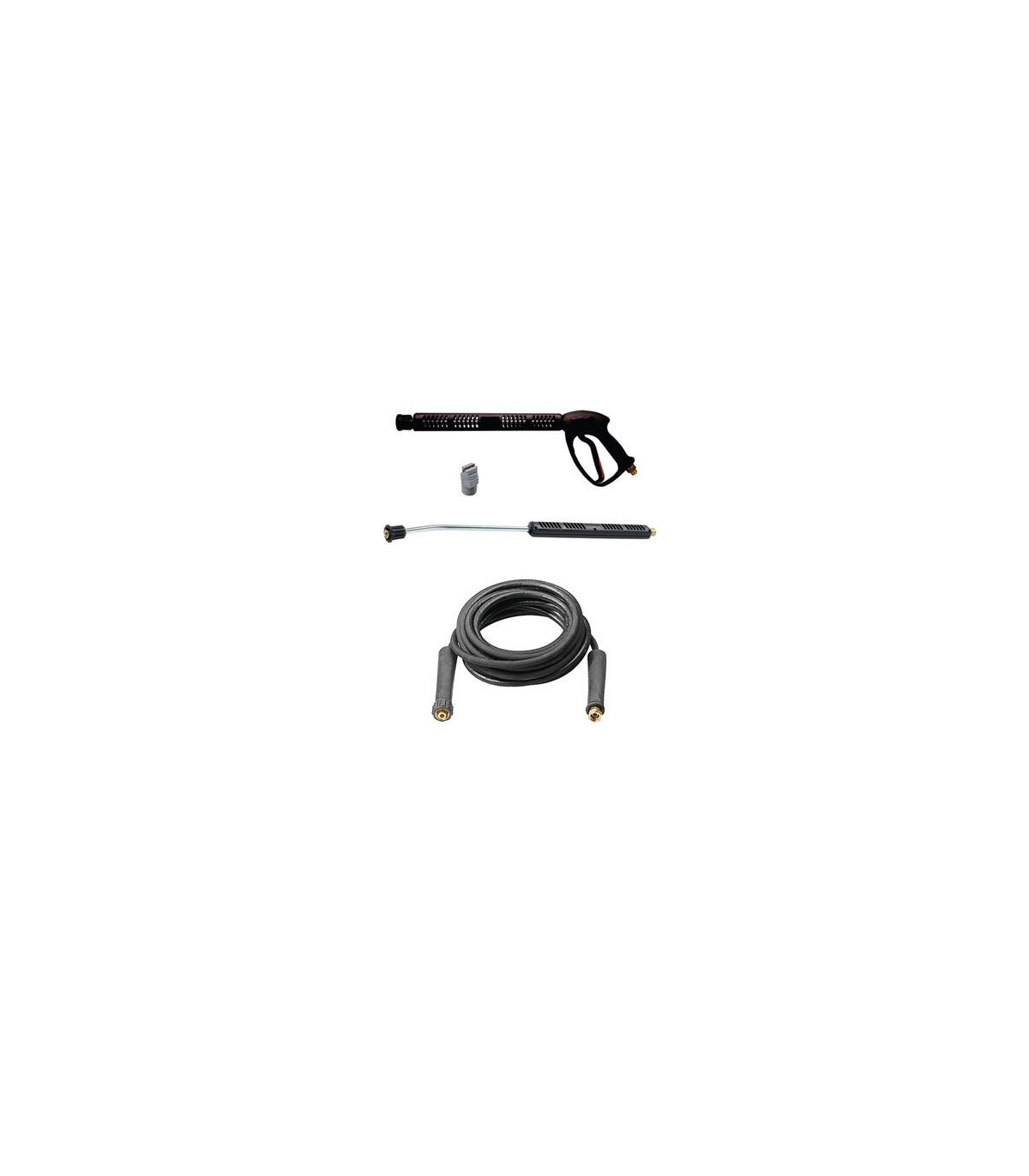

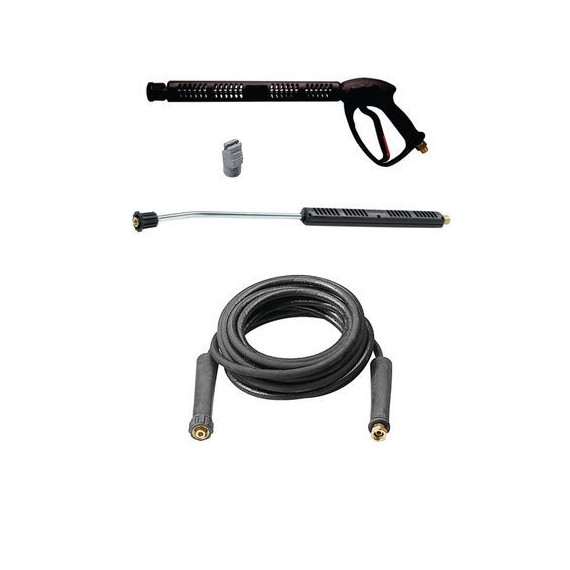

• Trigger gun
• lance
• 25° flat jet nozzle
• Hose reel with 15 m high-pressure hose
• Nozzle cleaning needle

EQUIPMENT

Motor 4 poles, low speed

Pump Three-piston axial pump with brass head

Pump control Timed total stop

Self-priming pump ✔

Safety valve ✔

Integrated detergent tank ✔

Detergent tank 16 liters

Detergent control ✔

Detergent intake system High pressure, adjustable

Protection device against incrustations (tank, pump) ✔

Scale protection tank 2.5 liters

Water temperature can be adjusted. ✔

Compatible operation with cold water ✔

Steam level ✔

Water filter ✔

Operating pressure can be adjusted. ✔

Pressure gauge for operating pressure ✔

Delayed burner start ✔

Burner shut-off in case of flame extinction ✔

Flow monitoring ✔

Independent burner ventilation unit ✔

Power indicator lamp ✔

Indicator lamp in case of fuel shortage ✔

Operation panel with extensive status indicators ✔

High-pressure hose 15 meters

High-pressure hose pressure bearing Reinforced rubber hose with textile fabric

Storage Supports for high-pressure hose and power cable, storage compartment for accessories

Transport equipment/transport 2 large wheels, 1 swivel wheel with parking brake, rigid handles

Wheel diameter 300 millimeters

FOR WHAT TYPE OF WORK IS IT SUITABLE

The HDR-H 108-20 CLEANCRAFT hot water pressure washer is suitable for:

• Industrial cleaning
• Machinery
• Automobiles
• Building cleaning
• Food industry
• Cleaning services
