Retractable fall protection with steel connector SRL Nano-Lok 3M Dbi-Sala

Retractable personal fall protection system, double lanyard, strap, 1.94 m. 3M™ DBI-SALA® Nano-Lok™

• Extremely compact and lightweight personal retractable fall protection system with a double lanyard designed for working at height. Intelligent activation brake system that provides a fall distance of up to 1.2 m (4 feet), up to 4 m (13 feet) less than conventional slings.
• Lightweight quick connection system that reduces connection and disconnection time by up to 60%.

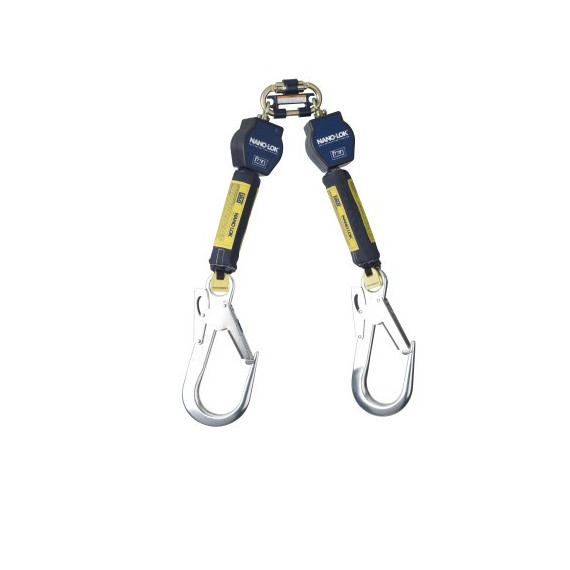

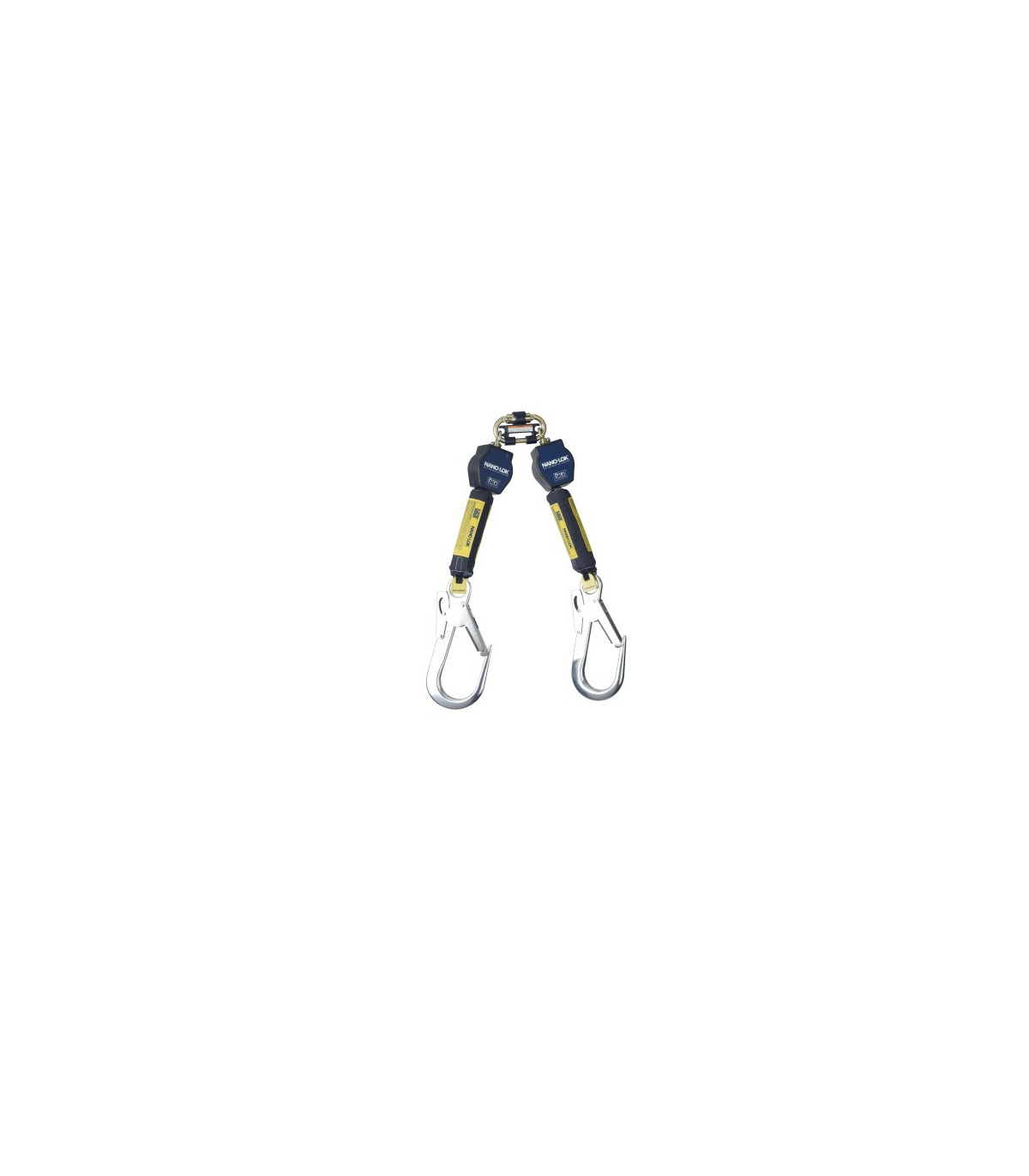

The retractable personal fall arrest system 3M™ DBI-SALA® Nano-Lok™ 3101298 is made of 19 mm (3/4") Dyneema® polyester webbing. Our dual-leg fall protection system is 1.8 m long and features aluminum spring hook ends, a quick connector for harness attachment, and an intelligent activation brake system. The personal retractable fall protection system 3M™ DBI SALA® Nano Lok™ 3101298 combines a lightweight design with industrial-level durability and functionality.

It is designed as a protection system for work at height, where comfort and safety are the top priorities. Our 1.8 m anti-fall system with a double lanyard, while being lightweight, has many features. Its ultra-compact design is practically imperceptible on the back, does not hinder movement, and can be used as the ideal substitute for slings. The intelligent activation braking system of the Nano Lok equipment reduces the fall distance to just 1.2 m (4 feet), improving protection in low-height applications with an average arresting force (AAF) of 400 daN and a maximum arresting force (MAF) of 600 daN. The constant tension of the anti-fall system also helps reduce rope drag, snags, and trip falls. Additionally, the lightweight quick-connect system reduces connection and disconnection time by up to 60%. It features aluminum spring hook ends and a quick connector for harness mounting; furthermore, the anti-fall system is made of 19 mm (3/4") Dyneema® polyester webbing. The nitrile rubber cover of the energy absorber is designed to last 4 times longer than previous versions, and the size of the absorber makes it very easy to use.

CHARACTERISTICS

• Extremely compact and lightweight personal retractable fall protection system with a double lanyard designed for working at heights.
• Intelligent activation brake system that provides a drop distance of up to 1.2 m (4 feet), up to 4 m (13 feet) less than conventional slings. Lightweight quick-connect system that reduces connection and disconnection time by up to 60%.
• Durable energy absorber cover made of nitrile rubber designed to last 4 times longer than the previous version.
• The reduced size of the energy absorber makes it more comfortable and easier to use compared to the previous version of the fall protection system with 19 mm (3/4") polyester straps Dyneema®.
• Average arresting force (AAF) of 400 daN and maximum arresting force (MAF) of 600 daN.
• 140 kg of capacity
• Equipped with 3M™ Connected Safety ID (CSID), a pre-programmed RFID tag, facilitates the tracking and management of equipment through the inspection and asset management system of 3M™ (system available by subscription)

TECHNICAL DATA

APPLICATIONS

Manufacturing, General industry, Oil and gas, Transportation, Utilities
