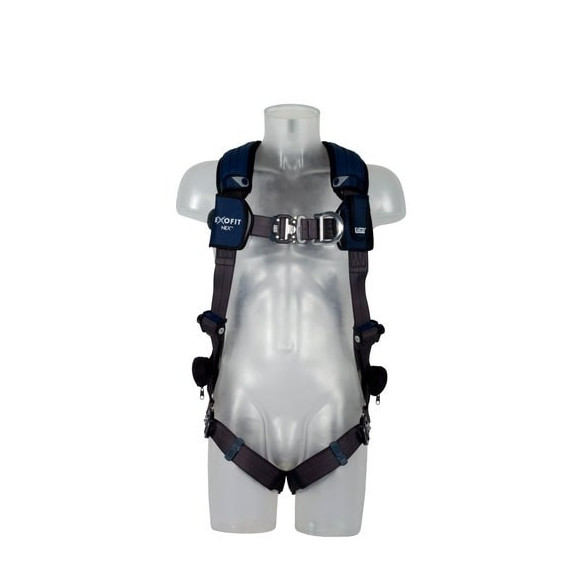

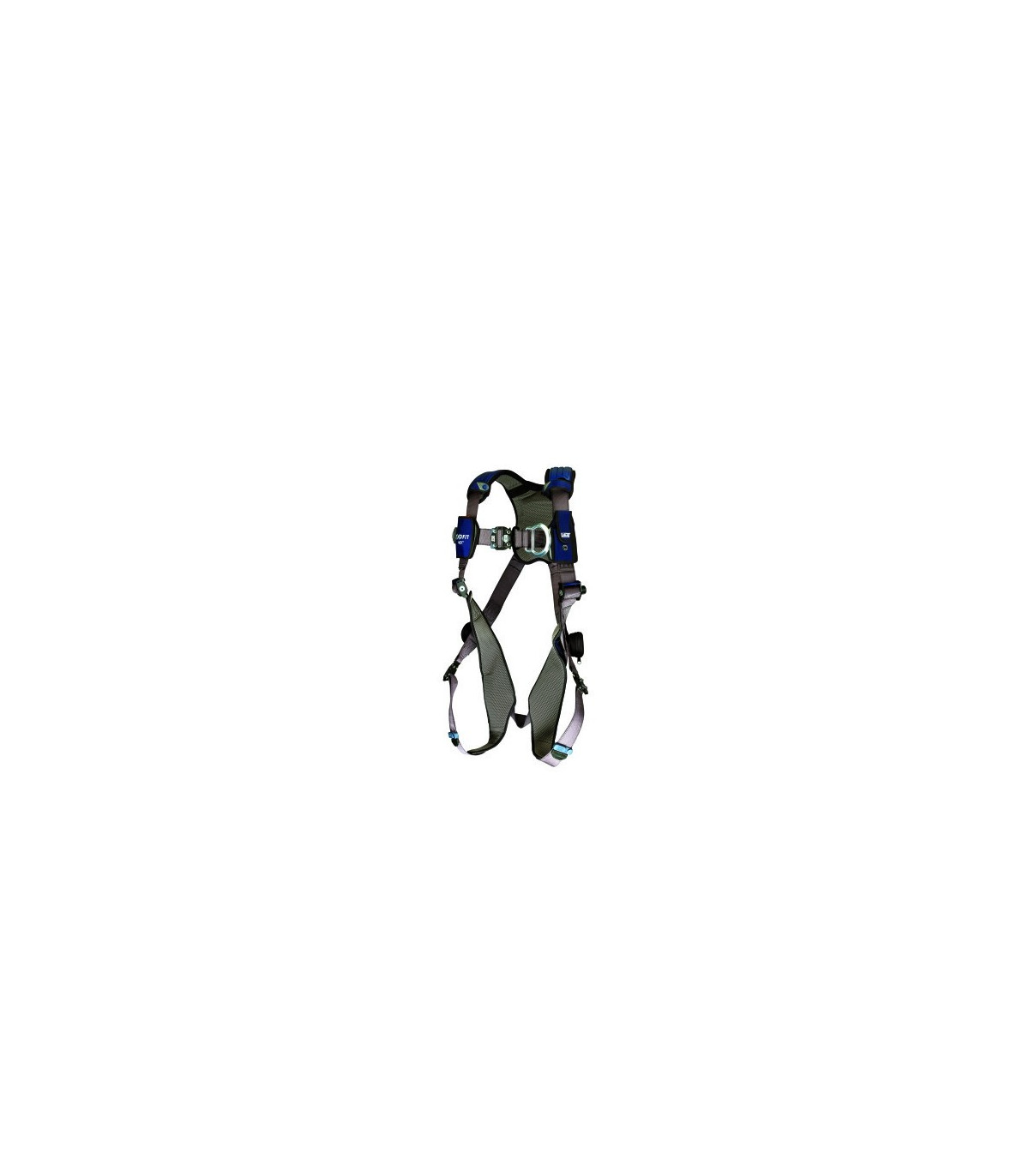

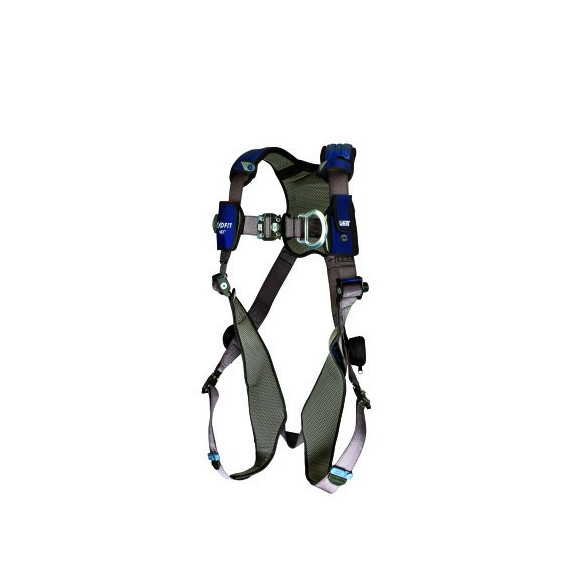

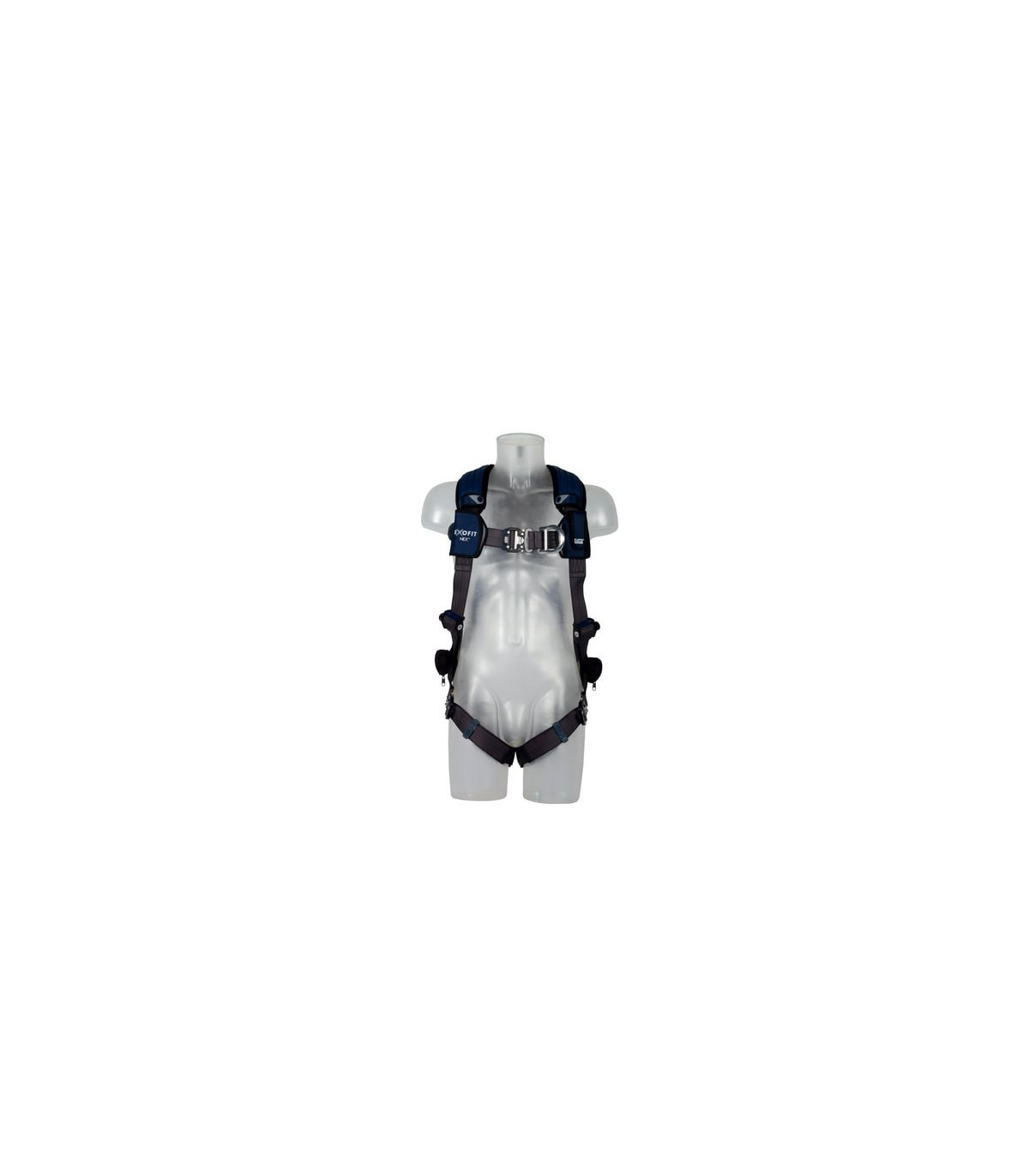

Quick connect harness 3M DBI-SALA EXOFIT NEX

Front and rear Tech-Lite attachment points, raised rear D-ring, Revolver vertical torso adjustment, Duo-Lok quick-connect buckle adjustment for torso and legs, hybrid pads for leg and shoulder comfort, suspension relief straps.

Water-repellent straps to keep you dry and comfortable Abrasion-resistant straps for lasting durability Dual-lock quick-connect buckles for fast, easy, and secure connections Integrated anti-trauma suspension straps

Delivery: 5 to 10 working days

DBI-SALA® ExoFit NEX

FEATURES

• Welded sling keepers

  Easy-opening safety hooks to prevent tripping hazards.
• Covered labels and i-Safe

  A Velcro® cover protects the harness labels and incorporates the DBI-SALA i-Safe identification label. It provides an effective way to record and store inspection information.
• Duo-Lok quick-connect buckles

  Lightweight and can be used one-handed, with mesh closures that maintain adjustments, this system can be closed instantly without risk of shifting.
• Revolver vertical torso adjustment system

  Simple and quick adjustments that eliminate loose ends and secure them in place to prevent slipping.
• Repel technology webbing

  Water-repellent to reduce mold and dust attraction, making it up to 5 times more abrasion-resistant.

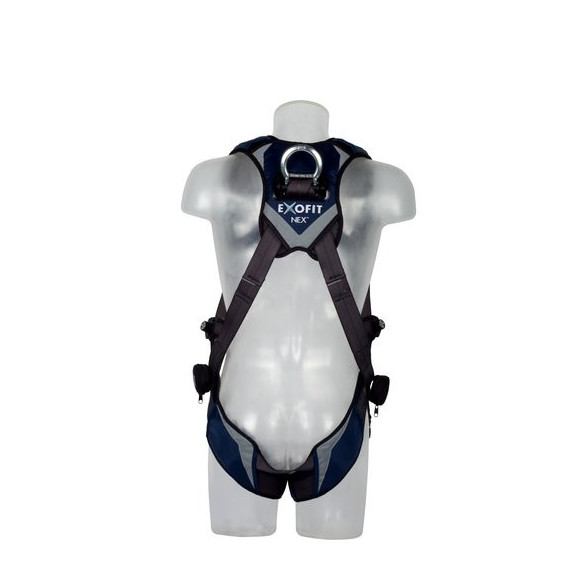

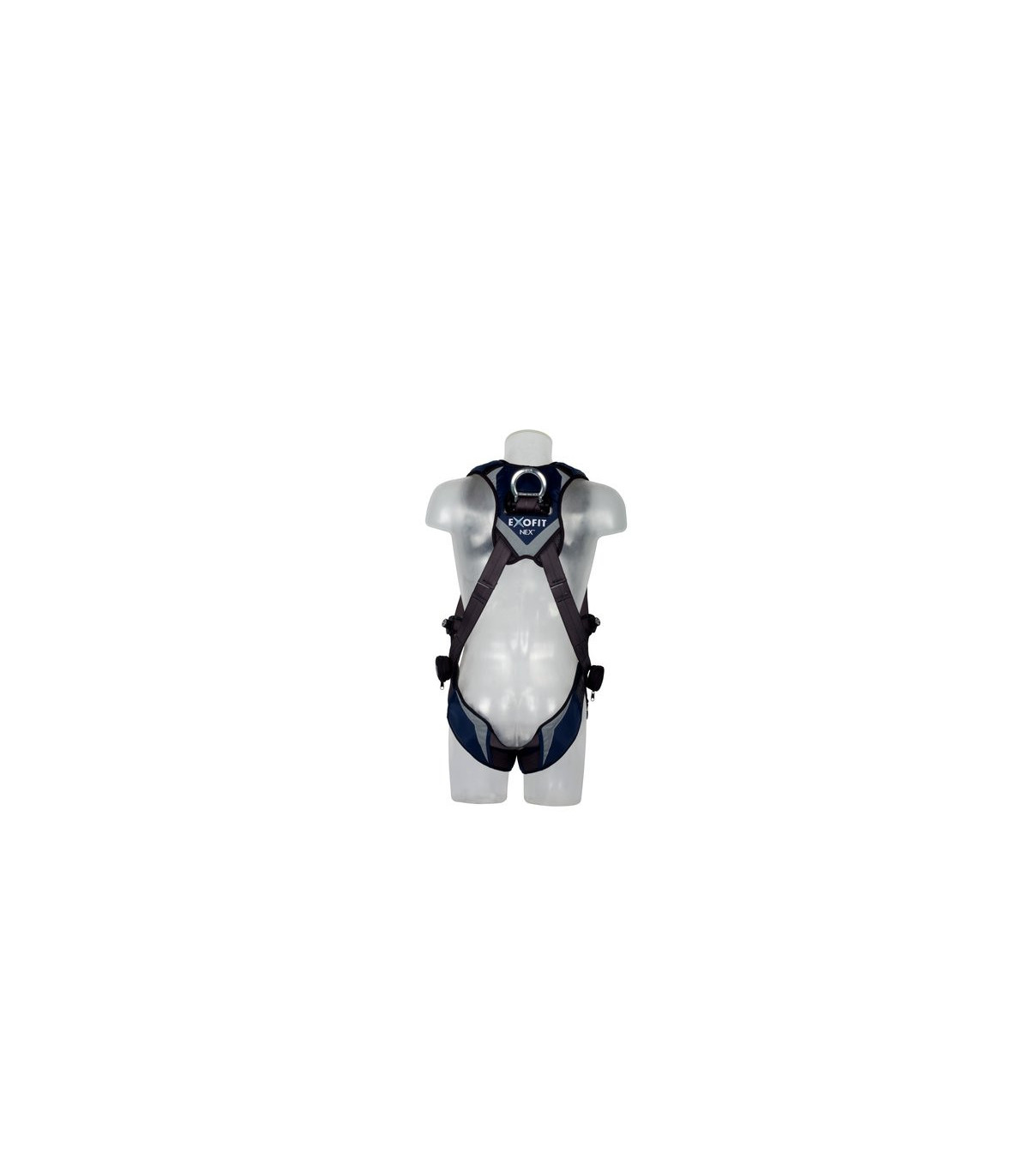

• Raised dorsal D-ring

  With its patented spring-loaded design that automatically stands up, it ensures quick, easy, and secure connections to the fall protection system.
• Integrated impact indicators

  Fall indicators made of tearable stitches allow you to inspect the harness at a glance, showing damage from dynamic loads.
• Integrated emergency suspension straps

  Provides a continuous and adjustable loop for after a fall, offering relief from the effects of suspension.

TECHNICAL DATA

TECHNICAL DATA

Enhanced webbing: Abrasion-resistant and water-repellent to reduce mold and dirt buildup.

Sling hook accommodations: Prevents having to carry the sling in hand when not in use.

Comfort pads: On the underside of the straps for shoulders, hips, and legs. TM® Harness 3M DBI-SALA

Quick-connect buckles: Lightweight aluminum alloy buckles for quick and easy connections. (Models with pass-through buckles are also available).

Vertical dorsal D-ring: The vertical dorsal D-ring ensures quick, easy, and secure connections to your fall arrest system.

Rigid belt: Allows carrying 27 kg of tools without breaking. Protected labels: Harness labels protected with hook and loop closure.

USAGE INSTRUCTIONS - ADJUSTING THE FALL ARREST HARNESS

Before starting. Empty your pockets, as during work or, more importantly, in the event of a fall, objects in your pockets can get caught between the harness straps and the user's body causing injuries. Always refer to the usage instructions provided with the specific harness regarding proper installation and adjustment.

Step 1. Start. Hold the harness by the dorsal D-ring, which is often attached through a D-pad, and ensure that the straps are not twisted.

Step 2. Shoulder straps. Slide the harness over your arms and place it on your shoulders. Ensure that no strap is tangled and that they hang freely.

Step 3. Leg straps. Place it between your legs and secure the leg strap on your left side. Raise the strap between your legs and connect it to the left side buckle. Connect the right leg strap using the same procedure.

Step 4. Chest straps. Attach the chest strap buckle to the corresponding opposite side buckle.

Step 5. Waist strap (if equipped). Attach the waist strap buckle to the corresponding opposite side buckle.

Step 6. Adjust the harness to fit snugly. Adjust the shoulder straps until they are tight with the adjusters. The left and right sides of the shoulder straps should be adjusted to the same length, and the chest strap should be centered at the bottom of the chest, about 15 cm below the shoulder. The chest D-ring on the vest-style harness moves up or down by adjusting the shoulder and leg straps. Center the dorsal D-ring between the shoulder blades. Note: In applicable models, the dorsal D-ring can be raised or lowered on the harness strap as needed for a proper fit. Readjust the leg straps to be tight. There should be at least 8 cm of strap beyond the buckle on the leg straps. Adjust the waist strap (if equipped).

You are ready! A properly fitted and adjusted full-body harness will effectively distribute impact forces across the body and provide the proper support during suspension and rescue after a fall.

REGULATIONS

EN 358: 2001 - Personal protective equipment for work positioning and prevention of falls from height.

EN 361: 2003 - Personal protective equipment against falls from height. Fall arrest harnesses

EN 1497: 2008 - Personal protective equipment against falls. Rescue harnesses

EN 365: 2005 - Personal protective equipment against falls from height. General requirements for instructions for use, maintenance, periodic inspection, repair, marking, and packaging.

RECOMMENDATIONS FOR THE COMPLETE PPE SET

Do not use this safety equipment unless you have received training from a competent person (this training may be repeated as often as necessary). Contact CAPITAL SAFETY for information about classes or if you have questions about using this equipment. Training should be conducted without exposing the user to a fall hazard and should be repeated periodically. (See the complete guide in the usage instructions).
