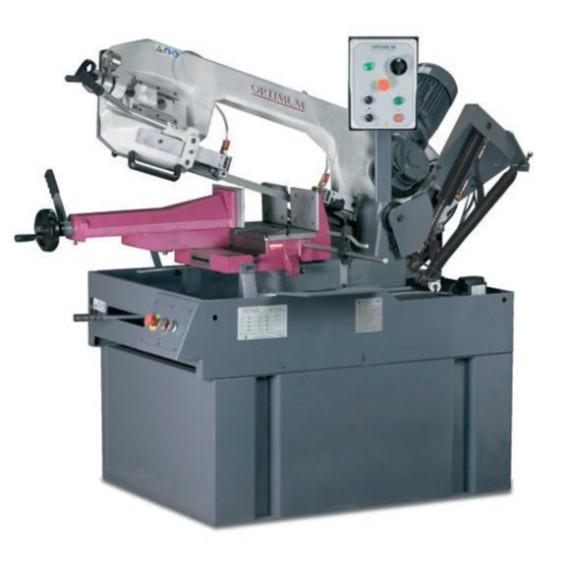

S 350 DG OPTIMUM band saw for metallurgy

Saw for metallurgy S 350 DG OPTIMUM. The S 350 DG OPTIMUM saw is ideal for metallurgy, with a heavy design and quiet operation. It offers high precision without vibrations, two speeds, and miter adjustment up to -60°. Its robust clamp allows for quick securing, and its guide with ball bearings ensures optimal cuts. With a cutting capacity of up to 270 mm in round, it includes a coolant pump and is easy to adjust. Perfect for demanding jobs in the workshop.

FEATURES

• Heavy industrial design
• Quiet operation
• High cutting precision thanks to vibration-free operation
• Two switchable speeds 36/72 m/min.
• Miter adjustment up to -60° by rotating the entire saw arm
• Robust and large quick-clamping jaw, adjustable via handwheel. Securing the workpiece with a practical quick-clamping lever.
• Adjustable quick-release jaw for large materials
• Easy and correct adjustment of the saw blade tension via manometer
• Standard with high-quality bi-metal saw blade
• Adjustable end stops in degrees
• Chip brush
• Blade guide with ball bearings and carbide tips for optimal cutting results
• Precise and adjustable movement of the saw blade via hydraulic cylinders
• Coolant pump
• Easy adjustment of the descent speed via feed control valve on the control panel
• Impact switch for emergency stop
• Robust machine base
• Micro switch for automatic limit switch
• Adjustable roller support for long and heavy workpieces
• Fully equipped, allowing the user to be productive immediately after commissioning.

TECHNICAL SPECIFICATIONS

Cutting Ranges

• 0° round (full material) 270 millimeters
• 0° square (full material) 230 millimeters
• 0° horizontal rectangle (full material) 230 x 350 millimeters
• -45° round (full material) 230 millimeters
• -45° square (full material) 170 millimeters
• -45° horizontal rectangle (full material) 140 x 200 millimeters
• +45° round (full material) 230 millimeters
• +45° square (full material) 200 millimeters
• +45° horizontal rectangle (full material) 210 x 220 millimeters
• +60° round (full material) 140 millimeters
• +60° square (full material) 140 millimeters
• +60° horizontal rectangle (full material) 140 x 220 millimeters
• Cutting range explanation The cutting range is determined according to the weight of the saw arm with aluminum. It may vary when using different materials and may be lower under certain circumstances (does not include cutting capacity).

Dimensions and Weights

• Maximum width/depth 1415 millimeters
• Maximum height 2000 millimeters
• Approximate length 1750 millimeters
• Approximate width/depth 1075 millimeters
• Approximate height 1420 millimeters
• Approximate weight. 550 kilograms

Electrical Data

• Drive motor output 2.2 kW
• Coolant pump motor power 0.05 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

Machine Data

• Saw blade speed(s) 36 / 72 m/min
• Saw blade length 2925 millimeters
• Saw blade width 27 millimeters
• Saw blade thickness 0.9 millimeters
• Cutting angle of a -45 60 °
• Feed infinitely variable
• Lifting the saw arm Manual
• VPE 1

COMPONENTS/PACKAGING

Bi-metal saw blade, bench, micro switch for automatic disconnection, cooling system.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The S 350 DG OPTIMUM saw is suitable for:

• Wood and Carpentry
• Metallurgy
• Construction
• Automotive Industry
• Crafts and DIY
• Repair and Maintenance

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
