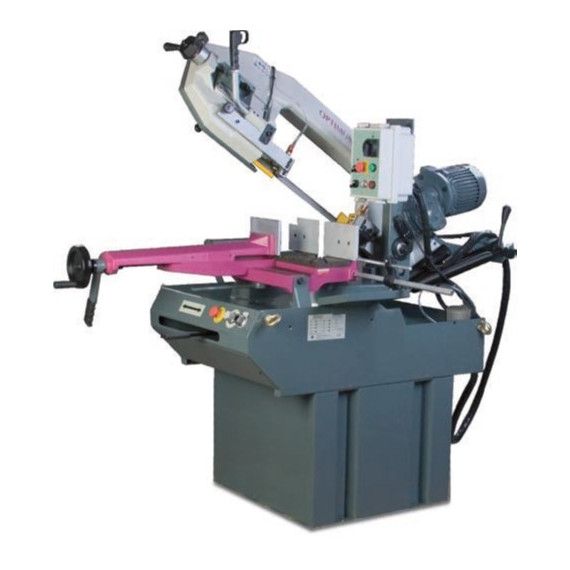

S 300 DG OPTIMUM band saw for metal cutting

Saw for metal cutting S 300 DG OPTIMUM. The S 300 DG OPTIMUM band saw is perfect for metal cutting, featuring silent operation and high precision without vibrations. With a ball guide and adjustable clamp, it cuts round and square materials up to 255 mm. Its robust design includes a cooling system and a high-quality bi-metal blade. Ideal for metallurgy, carpentry, and maintenance.

FEATURES

• Silent operation
• Heavy casting
• High cutting precision thanks to vibration-free operation
• Band saw guide with ball bearings
• Chip brush
• Micro switch for automatic end-of-travel
• Button - Manual band saw - the manual lever turns the saw blade on and off
• Standard with high-quality bi-metal saw blade
• Material stop with scaling
• Quick-release adjustable clamp via handwheel. Secures the workpiece with a practical quick-release lever.
• Stable machine base
• Adjustable limit stops
• Double miter
• With gear transmission

TECHNICAL SPECIFICATIONS

Cutting Ranges

• 0° round (full material) 255 millimeters
• 0° square (full material) 190 millimeters
• 0° horizontal rectangle (full material) 190 x 310 millimeters
• -45° round (full material) 220 millimeters
• -45° square (full material) 190 millimeters
• -45° horizontal rectangle (full material) 135 x 190 millimeters
• -60° round (full material) 135 millimeters
• -60° square (full material) 135 millimeters
• -60° horizontal rectangle (full material) 135 x 135 millimeters
• +45° round (full material) 215 millimeters
• +45° square (full material) 190 millimeters
• +45° horizontal rectangle (full material) 190 x 200 millimeters
• Cutting range explanation The cutting range is determined according to the weight of the saw frame with aluminum. It may vary when using different materials and can be lower in certain circumstances (does not include cutting capacity).

Dimensions and Weights

• Maximum width/depth 1300 millimeters
• Maximum height 1850 millimeters
• Approximate length 1680 millimeters
• Approximate width/depth 700 millimeters
• Approximate height 1600 millimeters
• Approximate weight. 335 kilograms

Electrical Data

• Drive motor output 1.5 kW
• Coolant pump motor power 0.1 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

Machine Data

• Saw blade speed(s) 35 / 70 m/min
• Saw blade length 2750 millimeters
• Saw blade width 27 millimeters
• Saw blade thickness 0.9 millimeters
• Cutting angle of a -60 45 °
• Feed infinitely variable
• Lifting the saw frame Manual
• VPE 1

COMPONENTS/PACKAGING

Bi-metal saw blade, hydraulic reduction cylinder, bench, micro switch for automatic disconnection, quick-action clamp, cooling system.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The S 300 DG OPTIMUM band saw for metal cutting is suitable for:

• Wood and Carpentry
• Metallurgy
• Construction
• Automotive Industry
• Crafts and Handicrafts
• Repair and Maintenance
