Vertical metal band saw VMBS 1610 METALLKRAFT

Vertical metal band saw VMBS 1610 METALLKRAFT. The vertical metal band saw VMBS 1610 METALLKRAFT stands out for its extremely stable construction, as its body is made entirely of steel, ensuring durability and strength. Its intuitive design allows for easy and comfortable handling, facilitating work in the workshop.

In addition, it features lighting in the workplace, which improves visibility during cuts. The work table, tiltable and made of cast iron, adapts to various cutting needs, while the continuously adjustable speed allows for precise adjustments for different materials.

FEATURES

• Extremely stable construction, entire machine body made of steel.
• User-friendly handling concept
• With lighting in the workplace

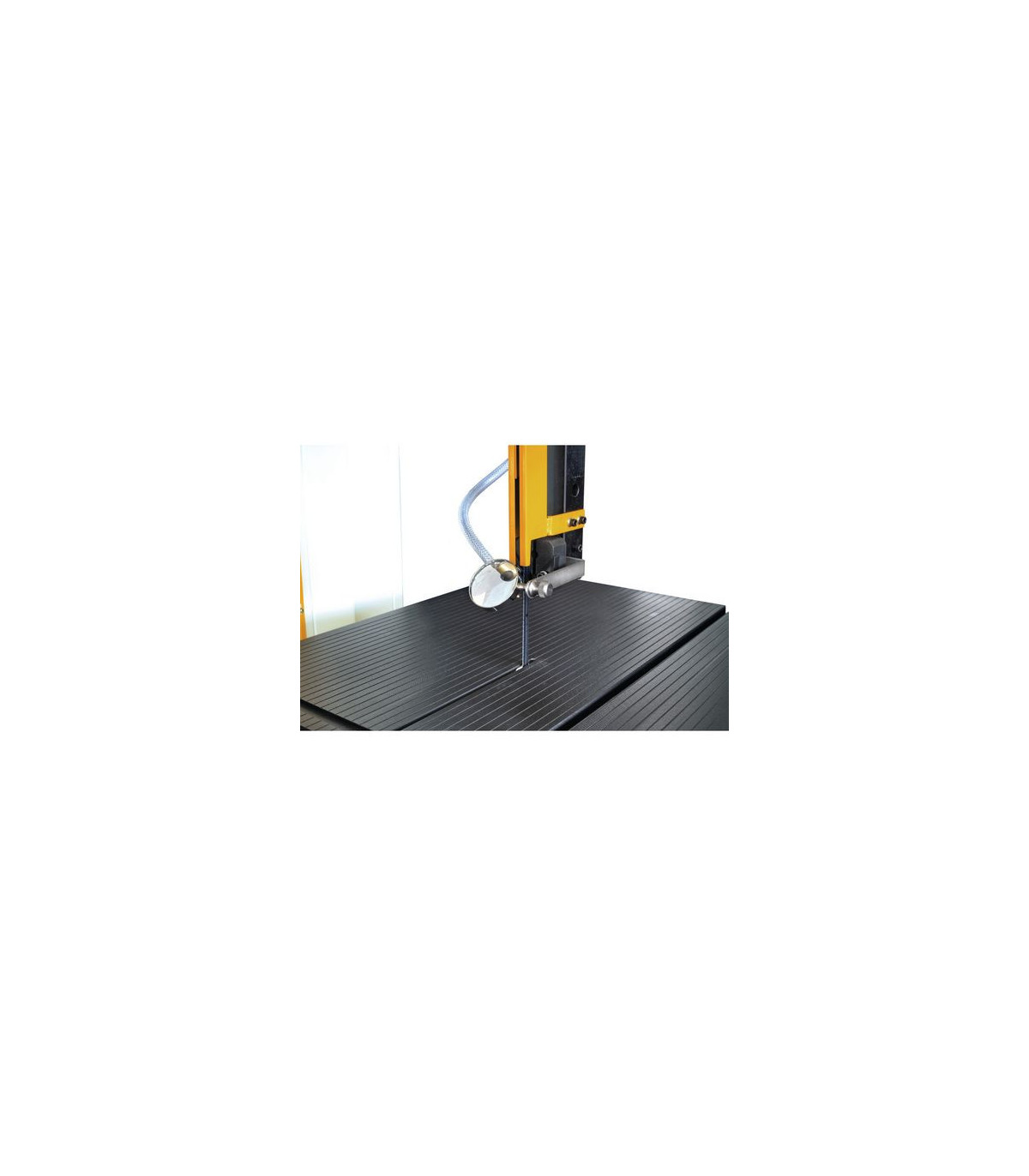

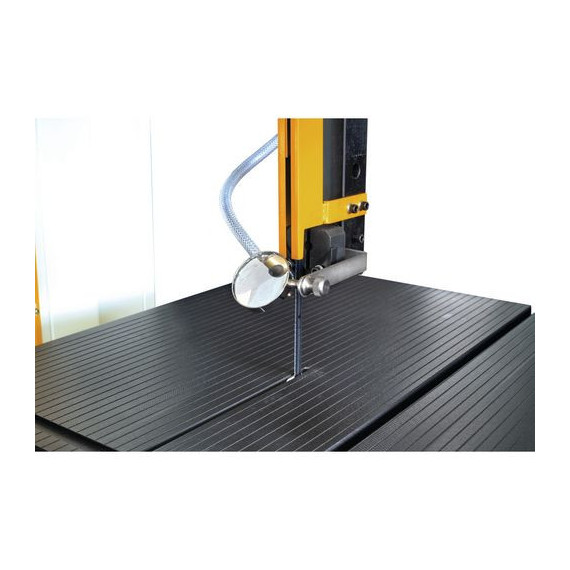

• Tiltable cast iron work table
• Continuously adjustable speed
• Tension and speed visualization of the belt
• Blowing device for sawdust
• Integrated strip welding unit with annealing, cutting, and grinding device
• With parallel stop

TECHNICAL SPECIFICATIONS

Maximum cutting height 255 millimeters

Blade speed(s) 20 – 80; 250 – 1000 m/min

Blade length 3145 millimeters

Maximum band saw length. 3180 millimeters

Band saw width 16 millimeters

Download 396 millimeters

Table length 550 millimeters

Table width 600 millimeters

Maximum table load. 150 kilograms

Working height 1000 millimeters

Table tilt range for miter cuts 12/15°

Table tilt range forward and backward 8/8°

Performance of the band saw welding machine 16 millimeters

Impeller diameter 408 millimeters

Sound pressure level 70.5 dB(A)

PU 1

Dimensions and weights

Approximate length. 940 millimeters

Approximate width/depth. 675 millimeters

Approximate height. 1840 millimeters

Approximate weight. 410 kilograms

Electrical data

Drive motor power 1.5 kW

Connection voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

Blade 3150 mm x 8 mm x 0.65 mm 14T

FOR WHAT TYPE OF WORK IS IT SUITABLE

The vertical metal band saw VMBS 1610 METALLKRAFT is suitable for:

• Workshops
• Metallurgy
• Carpentry
• DIY
