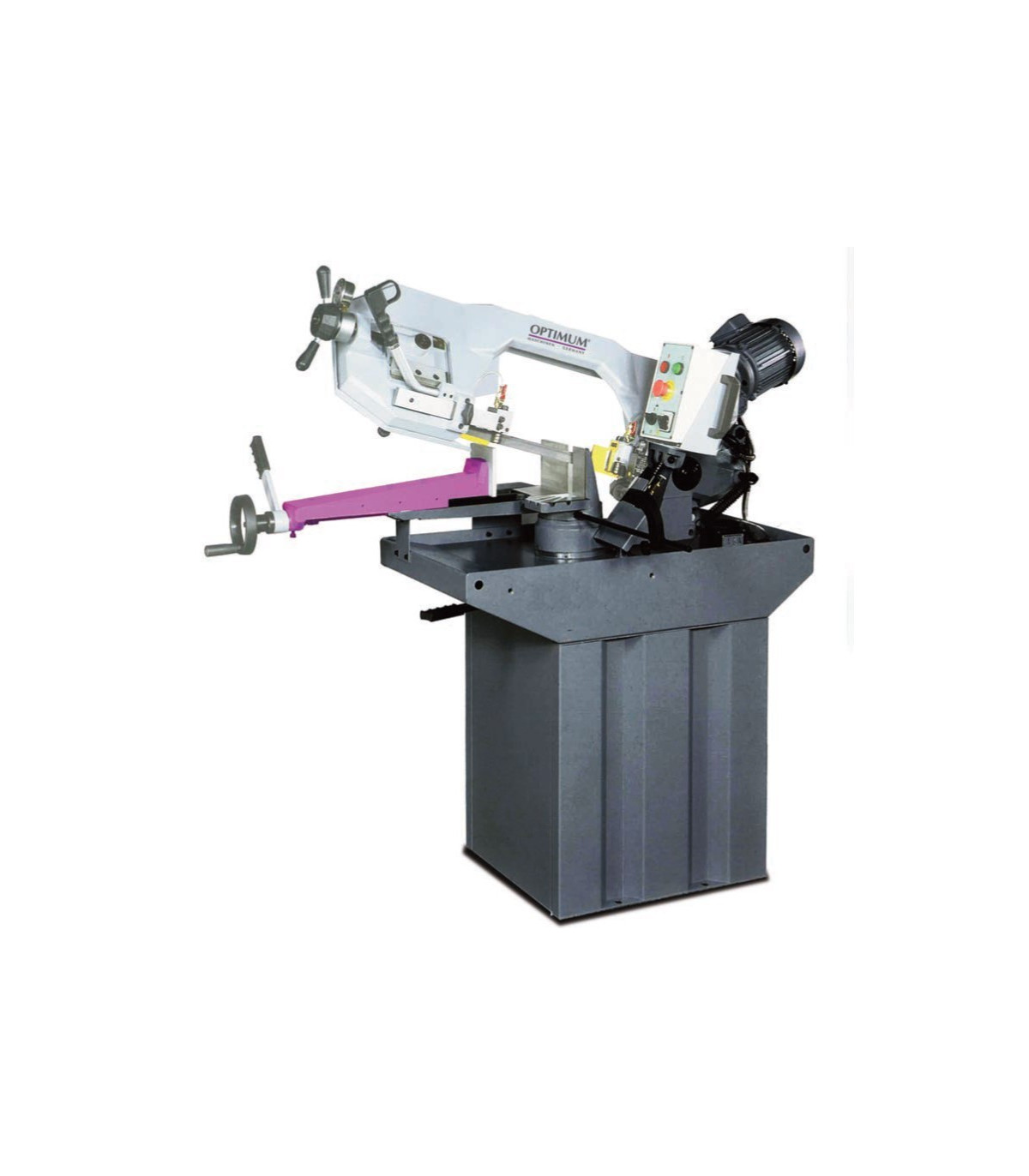

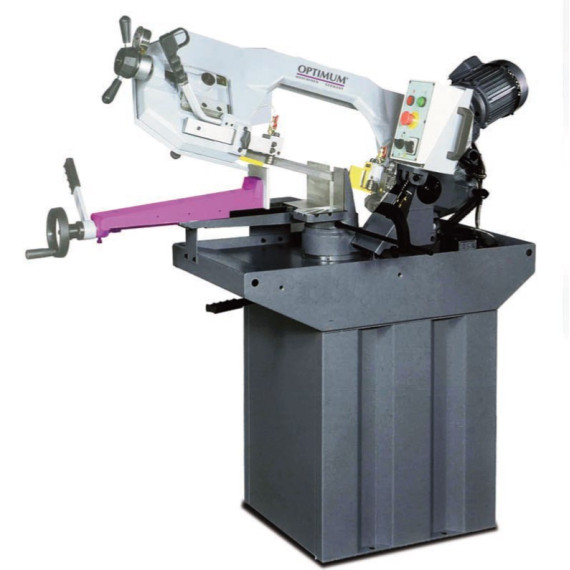

Band saw with two speeds S 275 N OPTIMUM

Band saw with two speeds S 275 N OPTIMUM. The S 275 N OPTIMUM band saw stands out for its quiet operation and high cutting precision, thanks to its vibration-free operation. With two adjustable speeds, it includes a cooling system and a robust base. Its hydraulic cylinder allows for controlled lowering of the arm, while the micro switch ensures automatic end-of-travel. Ideal for series work, it features an adjustable stop and quick-action clamp. Additionally, its manometer facilitates precise blade tension adjustment, ensuring versatile cuts in various materials.

FEATURES

• Quiet operation
• Stable distribution execution
• High cutting precision thanks to vibration-free operation
• Lowering of the saw arm via hydraulic cylinder with continuously adjustable butterfly valve
• Micro switch for automatic end-of-travel
• Cooling system
• Standard with high-quality bi-metal saw blade
• Adjustable material stop for series work
• Robust machine base
• Band saw guide with ball bearings
• Quick-action clamp adjustable via handwheel. Workpiece clamping using a practical quick-release lever.
• Easy-to-read scale for angle adjustment.
• Overload protection

S 275N

• Motor protection switch
• Two switchable speeds

S 275NV

• Continuously adjustable band saw speed 20 - 90 m/min.
• Speed change possible during operation

Manometer

• Easy and correct adjustment of saw blade tension

TECHNICAL SPECIFICATIONS

Cutting ranges

• 0° round (full material) 225 millimeters
• 0° square (full material) 190 millimeters
• 0° horizontal rectangle (full material) 150 x 245 millimeters
• +45° round (full material) 145 millimeters
• +45° square (full material) 150 millimeters
• +45° horizontal rectangle (full material) 190 x 150 millimeters
• +60° round (full material) 90 millimeters
• +60° square (full material) 90 millimeters
• +60° horizontal rectangle (full material) 120 x 90 millimeters
• Cutting range explanation The cutting range is determined according to the weight of the saw frame with aluminum. It may vary when using different materials and can be lower under certain circumstances (does not include cutting capacity).

Dimensions and weights

• Maximum width/depth 985 millimeters
• Maximum height 1700 millimeters
• Approximate length 1400 millimeters
• Approximate width/depth 685 millimeters
• Approximate weight. 185 kilograms

Electrical data

• Drive motor output 1.1 kW
• Coolant pump motor power 0.090 kW
• Power supply voltage 400 volts
• Network frequency 50 Hz

Machine data

• Band saw speed(s) 45/90 m/min
• Length of the band saw 2480 millimeters
• Width of the band saw 27 millimeters
• Thickness of the band saw 0.9 millimeters
• Cutting angle of a 0 60 °
• Feed infinitely variable
• Lifting the saw frame Manual
• VPE 1

COMPONENTS/PACKAGING

Bi-metal saw blade, cutting limit stop, bench.

WHAT TYPE OF WORK IS IT SUITABLE FOR

The S 275 N OPTIMUM band saw with two speeds is suitable for:

• Wood and Carpentry
• Metallurgy
• Construction
• Automotive Industry
• Crafts and Handicrafts
• Repair and Maintenance
