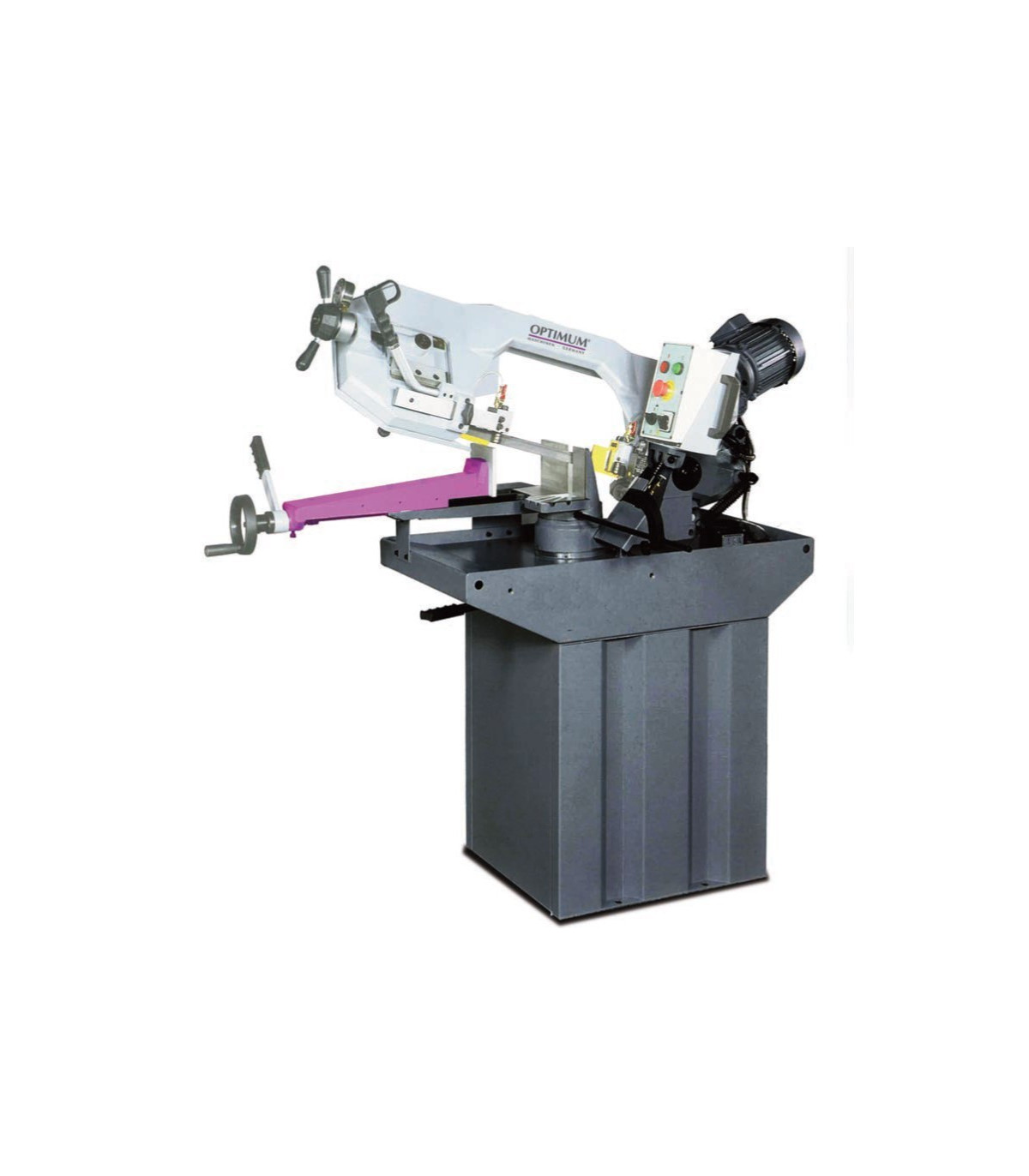

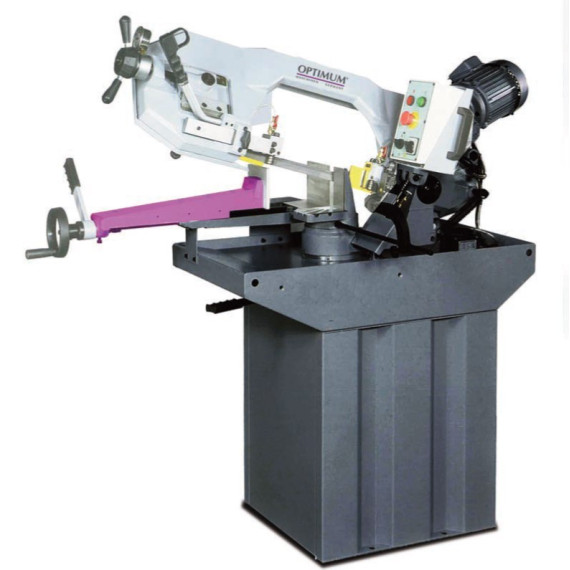

Band saw with two speeds S 275 NV OPTIMUM

Band saw with two speeds S 275 NV OPTIMUM. The S 275 NV OPTIMUM band saw offers a quiet stroke and high cutting precision without vibrations. With two adjustable speeds and a robust hydraulic cylinder, it ensures stable cuts. Its cooling system and high-quality bi-metal blade ensure optimal performance. It includes an adjustable stop, quick-action clamp, and pressure gauge to facilitate blade tension adjustment. Ideal for series work, it allows cuts at various angles and materials, standing out for its durability and efficiency in work.

FEATURES

• Quiet stroke
• Stable execution of cuts
• High cutting precision thanks to vibration-free operation
• Lowering of the saw arm via hydraulic cylinder with continuously adjustable butterfly valve
• Micro switch for automatic end of stroke
• Cooling system
• Standard with high-quality bi-metal saw blade
• Adjustable material stop for series work
• Robust machine base
• Band saw guide with ball bearings
• Quick-action clamp adjustable via handwheel. Workpiece clamping using a practical quick-release lever.
• Easy-to-read scale for angle adjustment.
• Overload protection

S 275N

• Motor protection switch
• Two switchable speeds

S 275NV

• Continuously adjustable saw blade speed 20 - 90 m/min.
• Speed change possible during operation

Pressure gauge

• Easy and correct adjustment of saw blade tension

TECHNICAL SPECIFICATIONS

Cutting Ranges

• 0° round (full material) 225 millimeters
• 0° square (full material) 190 millimeters
• 0° horizontal rectangle (full material) 150 x 245 millimeters
• +45° round (full material) 145 millimeters
• +45° square (full material) 150 millimeters
• +45° horizontal rectangle (full material) 190 x 150 millimeters
• +60° round (full material) 90 millimeters
• +60° square (full material) 90 millimeters
• +60° horizontal rectangle (full material) 120 x 90 millimeters
• Cutting range explanation The cutting range is determined according to the weight of the saw frame with aluminum. It may vary when using different materials and may be less under certain circumstances (does not include cutting capacity).

Dimensions and Weights

• Maximum width/depth 985 millimeters
• Maximum height 1700 millimeters
• Approximate length 1400 millimeters
• Approximate width/depth 685 millimeters
• Approximate weight. 185 kilograms

Electrical Data

• Drive motor output 1.5 kW
• Coolant pump motor power 0.090 kW
• Power supply voltage 230 V
• Network frequency 50 Hz

Machine Data

• Speed(s) of the saw blade 20 – 90 m/min
• Length of the saw blade 2480 millimeters
• Width of the saw blade 27 millimeters
• Thickness of the saw blade 0.9 millimeters
• Cutting angle of a 0 60 °
• Feeding infinitely variable
• Lifting the saw frame Manual
• VPE 1

COMPONENTS/PACKAGING

Bi-metal saw blade, cutting limit stop, bench.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The S 275 NV OPTIMUM band saw with two speeds is suitable for:

• Wood and Carpentry
• Metallurgy
• Construction
• Automotive Industry
• Crafts and DIY
• Repair and Maintenance
