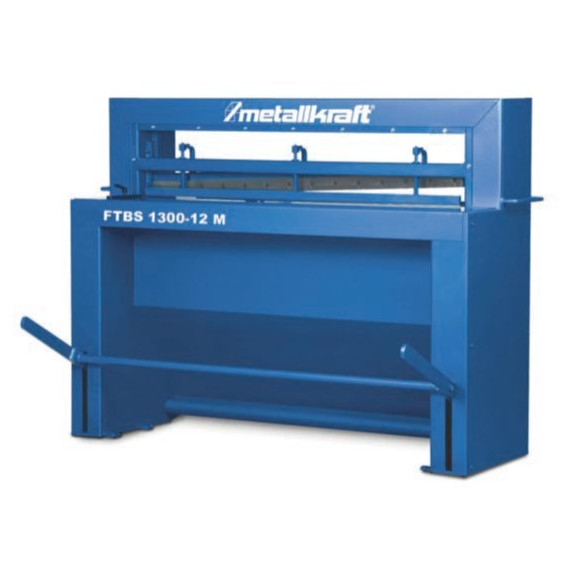

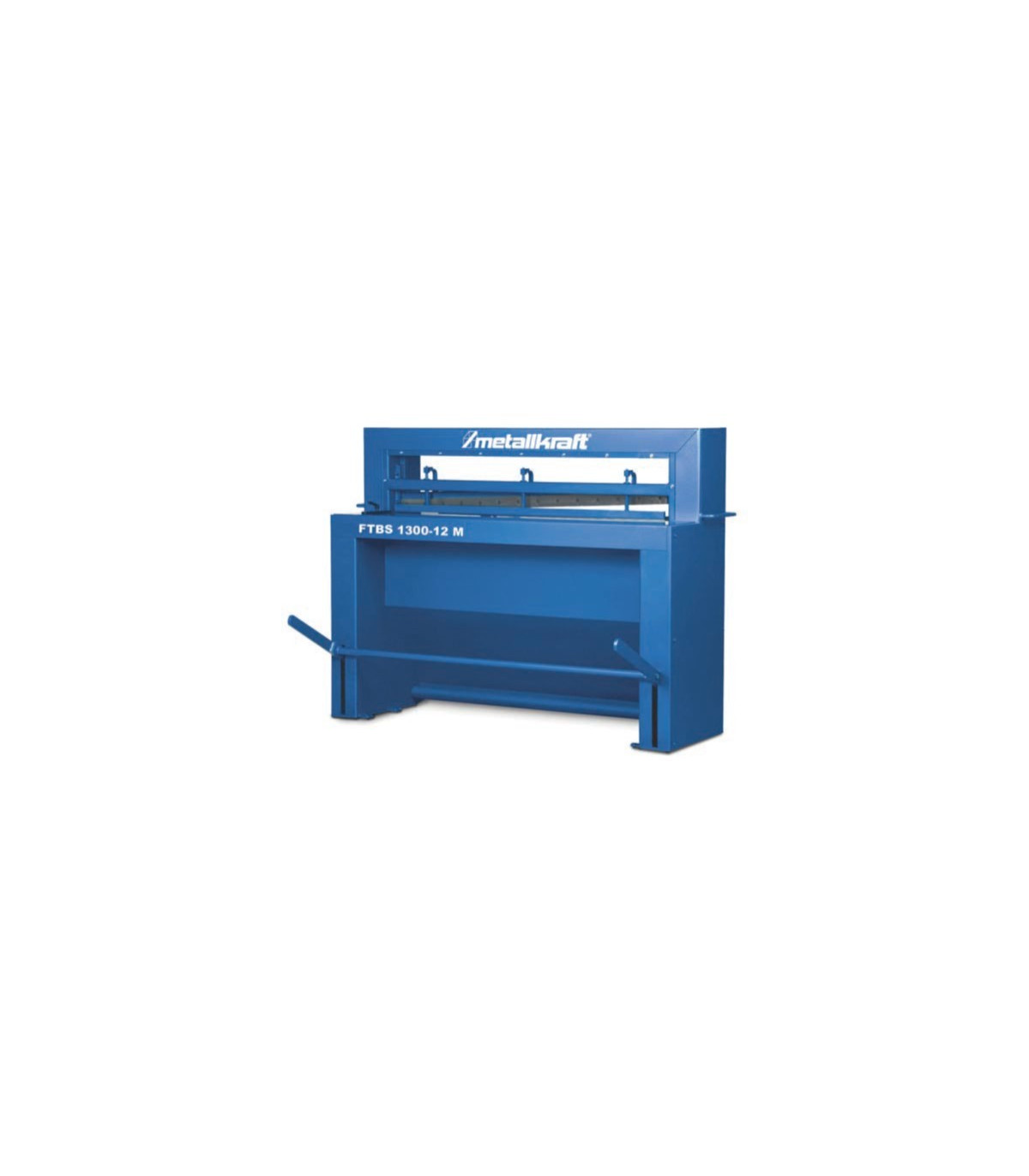

Manual shear FTBS 1300-12 M METALLKRAFT

Manual shear FTBS 1300-12 M METALLKRAFT. The FTBS 1300-12 M manual shear from METALLKRAFT stands out for its welded and robust construction, ideal for cutting steel and non-ferrous metals. Its pedal allows for operation with both hands free, while the large plexiglass window offers visibility.

It features a high-quality steel knife bar and easy blade adjustment using eight screws. Additionally, it includes an adjustable angled side stop with a millimeter scale and standard cutting line illumination, providing an optimal price-performance ratio.

FEATURES

• Stable and robust welded construction
• Suitable for cutting steel and non-ferrous metals.
• The pedal leaves both hands free for material feeding.
• Large plexiglass viewing window.
• High-quality steel knife bar
• Stage
• Easy adjustment of the cutting blade using eight screws.
• Adjustable angled side stop with millimeter scale
• Standard cutting line illumination
• Optimal price-performance ratio

TECHNICAL SPECIFICATIONS

Working width 1300 millimeters

Cutting performance with material tensile strength of 400 N/mm² 1.25 millimeters

Adjustment range of the rear stop up to 550 millimeters

Length of the side stop 200 millimeters

Cutting angle 3°

PU 1

Dimensions and weights

Approximate length. 1790 millimeters

Approximate width/depth. 510 millimeters

Approximate height. 1290 millimeters

Approximate weight. 200 kilos

COMPONENTS/PACKAGING

Unit of measure: piece

Packaging unit: 1

• High-quality cutting knife made of steel.
• Cutting line illumination
• Rear stop
• Large plexiglass viewing window.
• Adjustable angled side stop
• Millimeter scale

FOR WHAT TYPE OF WORK IT IS SUITABLE

The FTBS 1300-12 M METALLKRAFT manual shear is suitable for:

Industry

Craftsmanship
