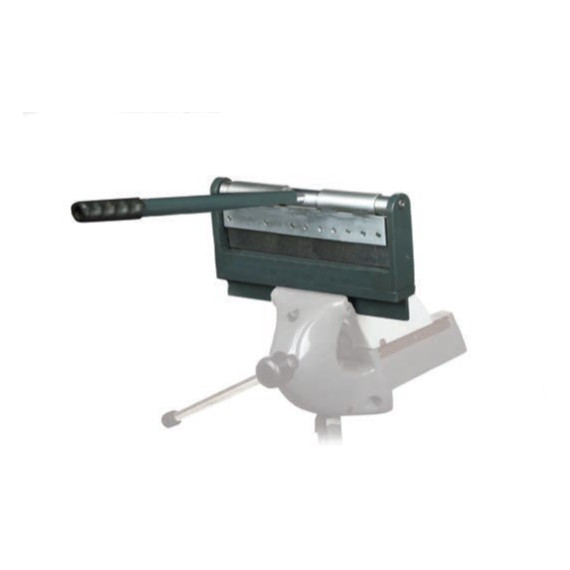

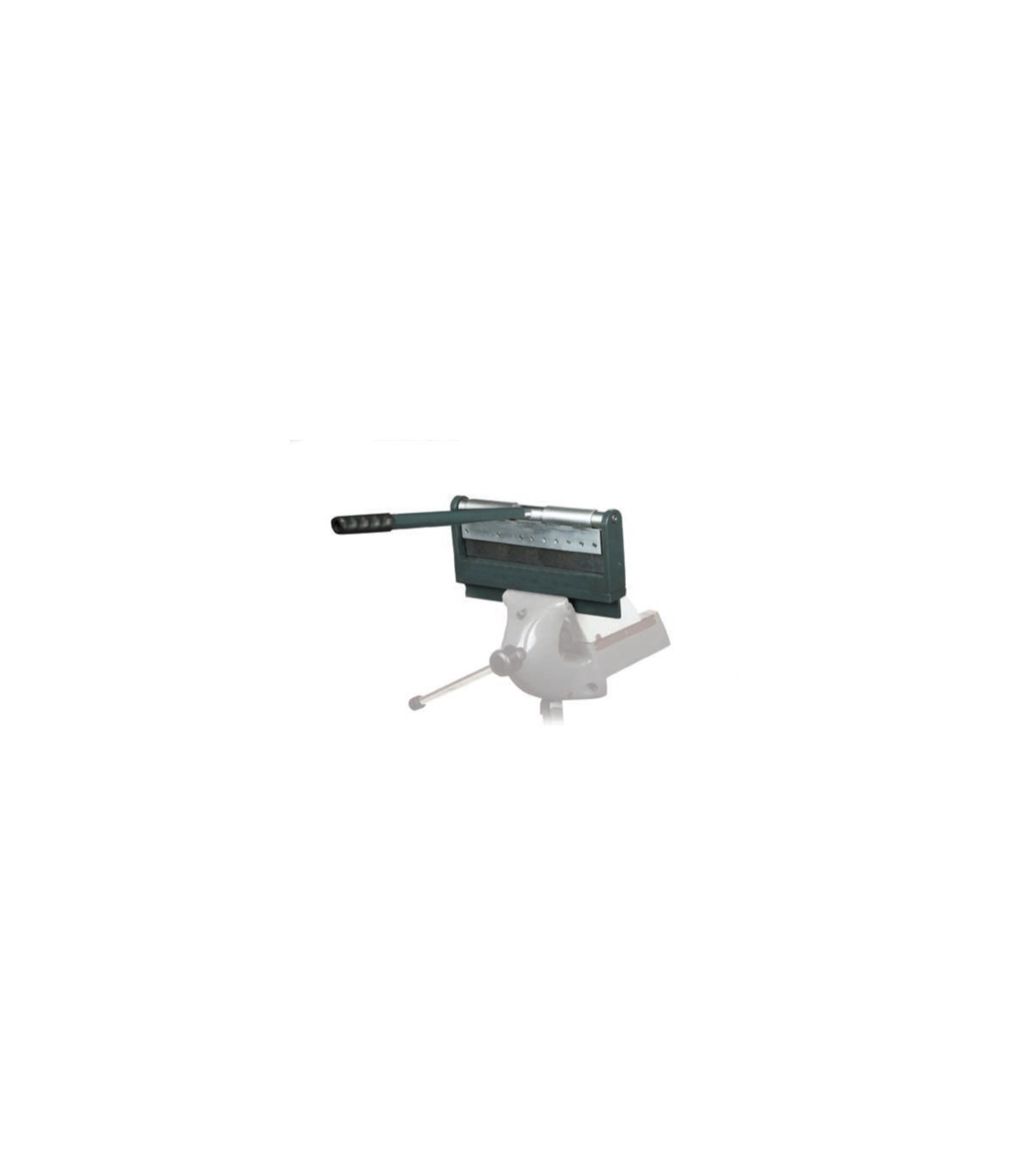

Manual sheet metal bending machine FP 30 OPTIMUM

Manual sheet metal bending machine FP 30 OPTIMUM. The manual sheet metal bending machine FP 30 OPTIMUM allows you to bend and curve metal sheets with removable segments. With a working width of 320 mm and a capacity for sheets up to 2.5 mm, it is perfect for workshops.

FEATURES

• For bending and curving metal sheets.
• Flexible and removable cheek segments
• Comfortable pivoting movement of the bending beam on the lever handle
• High-quality bent cheek
• For use in the bench vise
• Removable bending segments of 150 mm / 75 mm / 50 mm and 25 mm

TECHNICAL SPECIFICATIONS

• Maximum working width 320 millimeters
• Max. sheet thickness. 2.5 millimeters
• Maximum bending capacity for steel sheet 300 x 1 mm
• Maximum bending capacity for aluminum/copper 300 x 2 mm
• VPE 1

Dimensions and weights

• Approximate length. 340 millimeters
• Approximate width/depth. 50 millimeters
• Approximate height. 600 millimeters
• Approximate weight. 10 kilograms

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• 150 mm bending segment
• 75 mm bending segment
• 50 mm bending segment
• 25 mm bending segment

WHAT TYPE OF WORK IS IT SUITABLE FOR

The manual sheet metal bending machine FP 30 OPTIMUM is suitable for:

• Bending
• Beveling metal sheets
