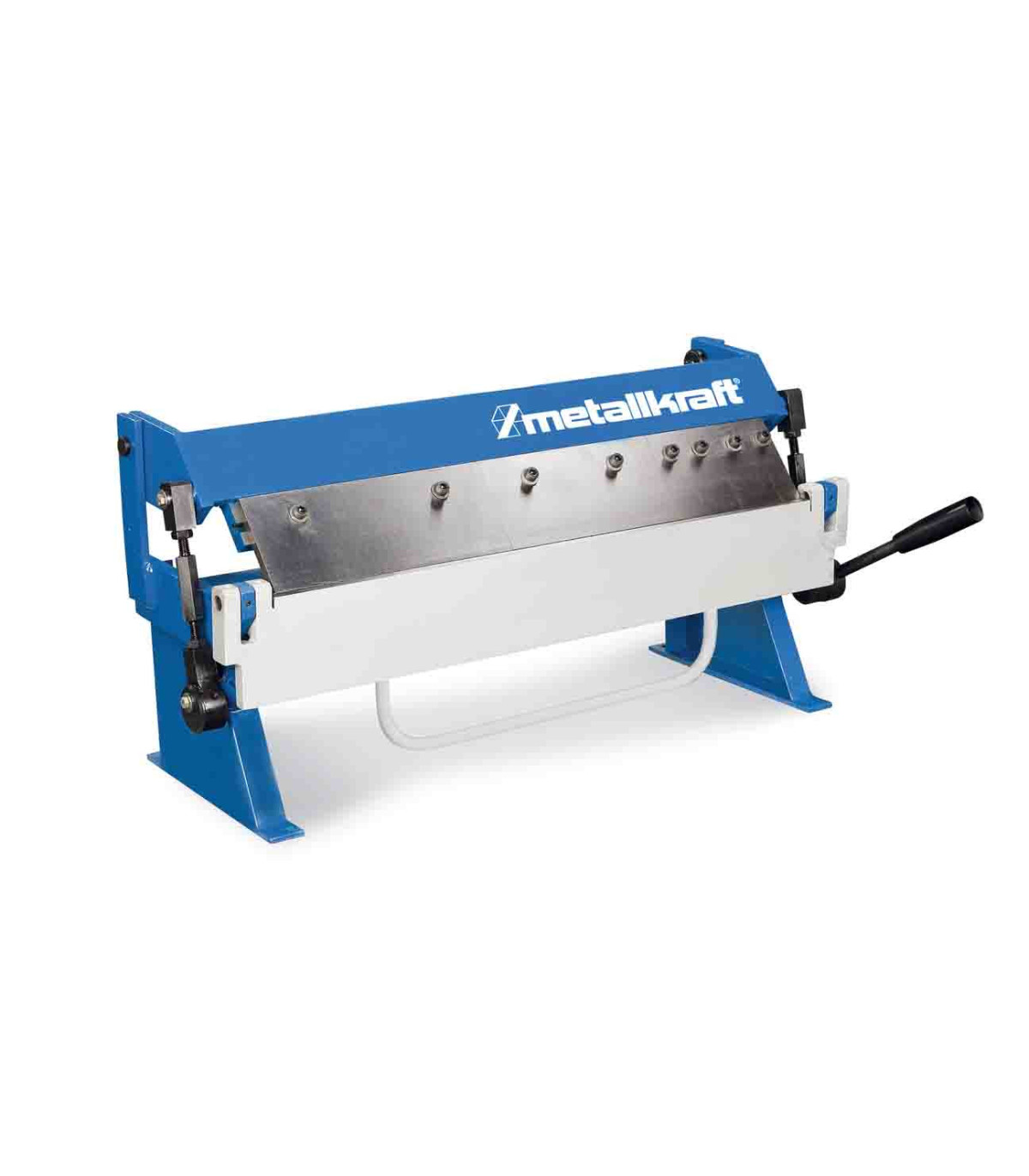

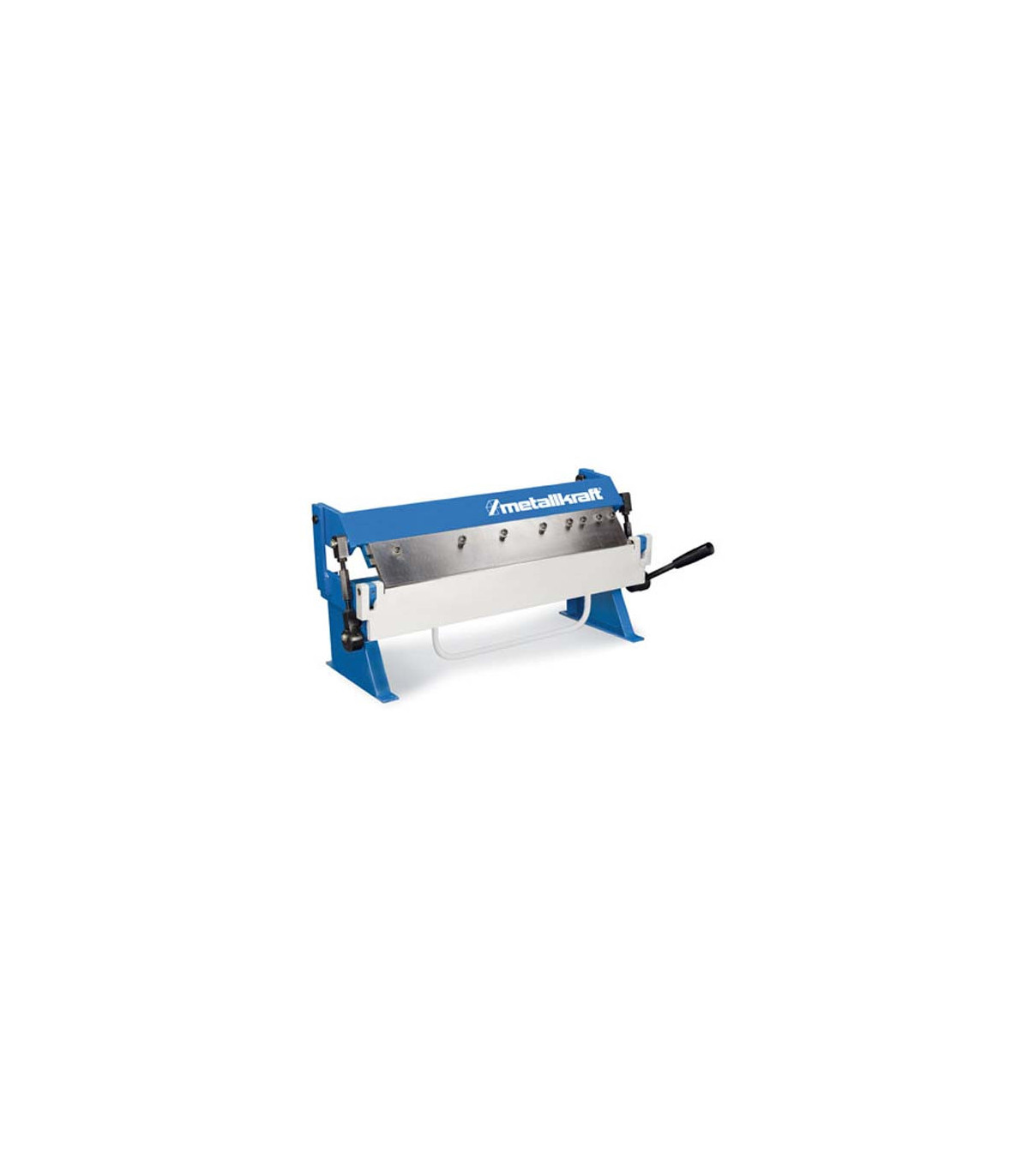

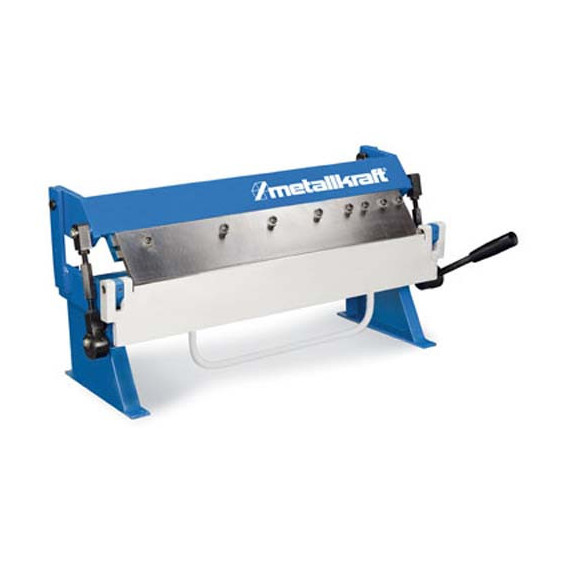

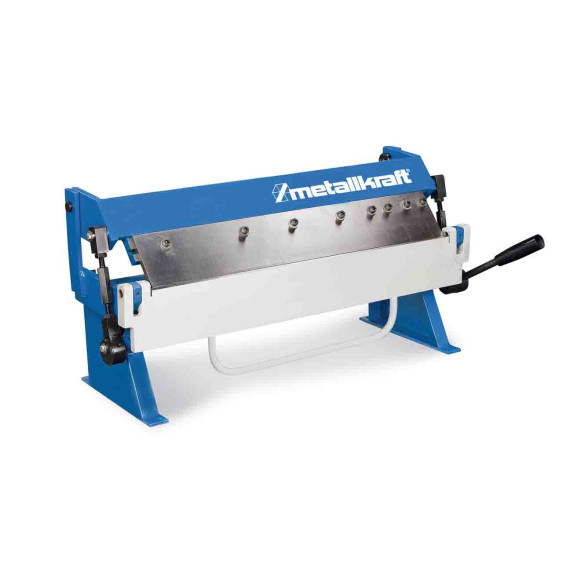

Manual sheet metal bending machine HSBM 610 HS METALLKRAFT

Manual sheet metal bending machine HSBM 610 HS METALLKRAFT. The HSBM 610 HS METALLKRAFT bending machine is perfect for beginners. Its robust design and quick adjustment ensure precise work and easy transport.

FEATURES

• Economical models for beginners for craftsmen.
• The simple design and solid construction guarantee precise work.
• Secure fixation of the workpiece using a clamping device.

HSBM 305 HS / 610 HS:

• Segmented upper cheek.
• Ideal for producing all profiles up to boxes with rounded edges.
• Quick and easy adjustment of the upper beam using an eccentric.
• Upper beam for high U profiles.
• Rotating and foldable bow handle.
• Easy to transport.

HSBM 1020-10:

• Easy-to-use adjustment of the upper beam.
• Rotating elbow with double handle.

HSBM 2200-0.7 and HSBM 3000-0.6

• Two machines in one: manual bending machine and shears.
• Ideal for roofers in installations, for example, to make chimney joints, chimney joints, and chimney cladding.
• The removable roller cutter allows for precise cutting of copper and zinc sheets.
• Angle visualization from 0 to 135°.
• Rotating bending with secure fixation of the workpiece through preloading of the upper beam.
• Optionally available for HSBM 2200-0.7: function for edging metal sheets.
• Quality made in Europe.

TECHNICAL SPECIFICATIONS

• Maximum working width 610 millimeters
• Maximum bending angle 135°
• Segmentation 25-50-75-205-255 millimeters
• VPE 1

Bending capacity

• 400 N/mm² 1.0 millimeters

Dimensions and weights

• Approximate length 850 millimeters
• Approximate width/depth 360 millimeters
• Approximate height 420 millimeters
• Approximate weight. 42 kilograms

WHAT TYPE OF WORK IS IT SUITABLE FOR

The manual sheet metal bending machine HSBM 610 HS METALLKRAFT is suitable for:

• Bending metal parts and structures.
• Metal repairs.
• Construction.
• DIY.

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015.

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation.

Compliance with standards and guidelines.

Knowledge management.

Clearly defined process flows.

Corporate responsibility.

Sustainability, development, and innovation.

Risk management.
