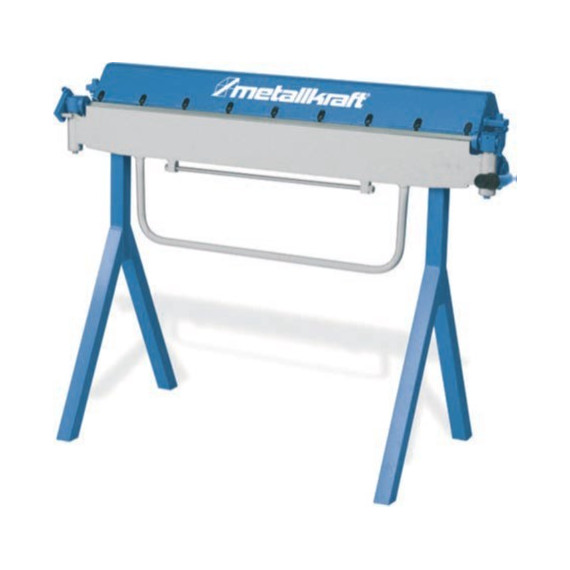

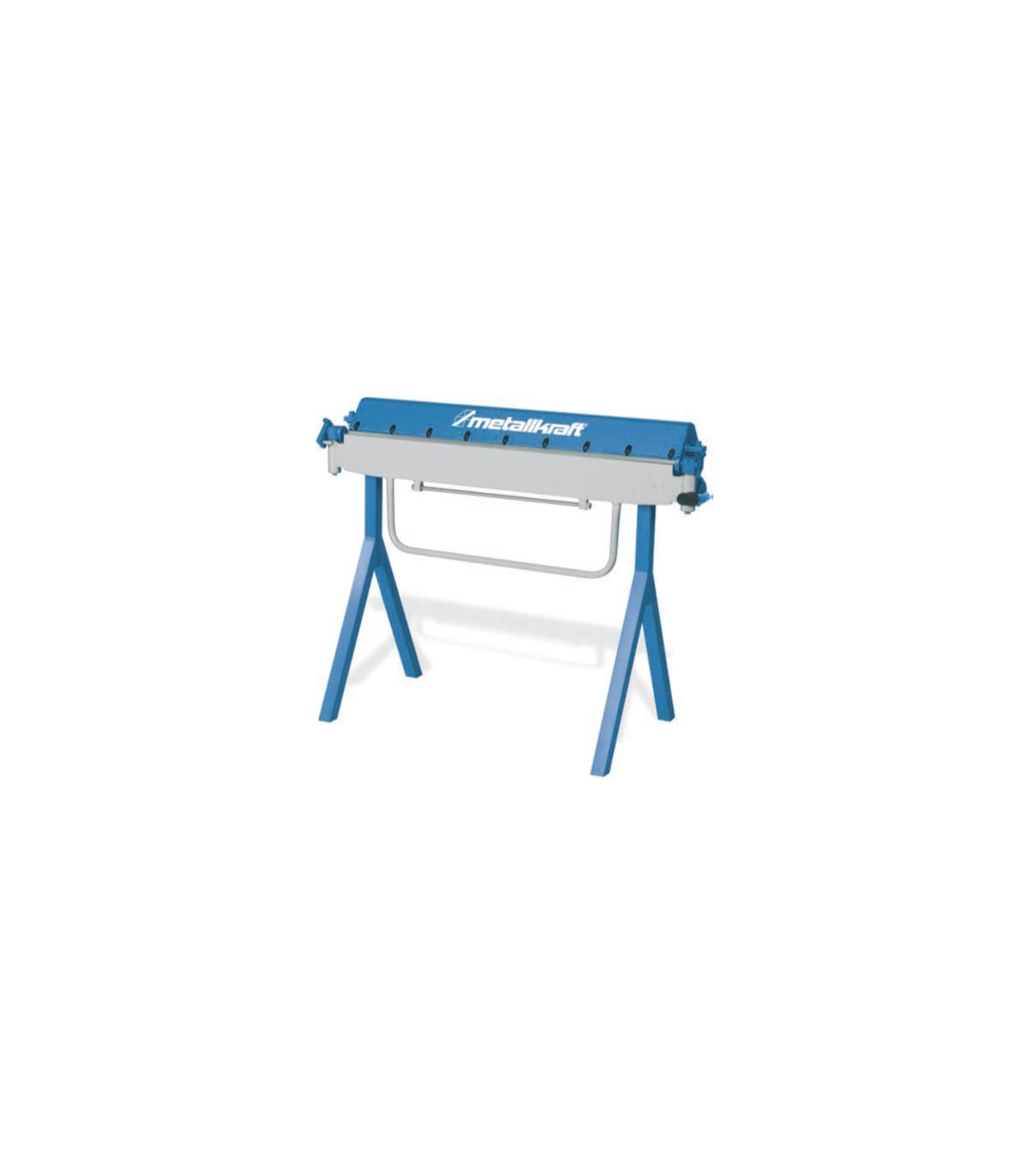

Professional sheet metal bending machine HSBM 660 N METALLKRAFT

Professional sheet metal bender HSBM 660 N METALLKRAFT. The professional bender HSBM 660 N METALLKRAFT offers manual clamping and easy fixing of the bending angle, ensuring high repeatability. With a working width of 660 mm and bending capacity for aluminum of 2 mm, it is ideal for metallurgy, construction, and DIY.

FEATURES

• The workpiece is held by manual clamping.
• Easy fixing of the established bending angle, ensuring high repeatability
• Self-lubricating plain bearings
• The basic version can be converted at any time into a high upper beam, high segment upper beam, or high segment upper beam with goat foot, using optional mounting kits.

Note on abbreviations

• N = with low upper cheek
• H = with high upper cheek
• S = with segment rail
• G = with goat foot

TECHNICAL SPECIFICATIONS

Maximum working width 660 millimeters

Maximum bending angle 135°

VPE 1

Bending capacity

Aluminum 2.0 millimeters

Dimensions and weights

Maximum width/depth 570 millimeters

Approximate length 880 millimeters

Approximate width/depth 500 millimeters

Approximate height 970 millimeters

Approximate weight. 56 kilograms

WHAT TYPE OF WORK IT IS SUITABLE FOR

The professional sheet metal bender HSBM 660 N METALLKRAFT is suitable for:

• Bending metal parts and structures
• Metal repairs
• Construction
• Industry
• Metal factories
• DIY

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
