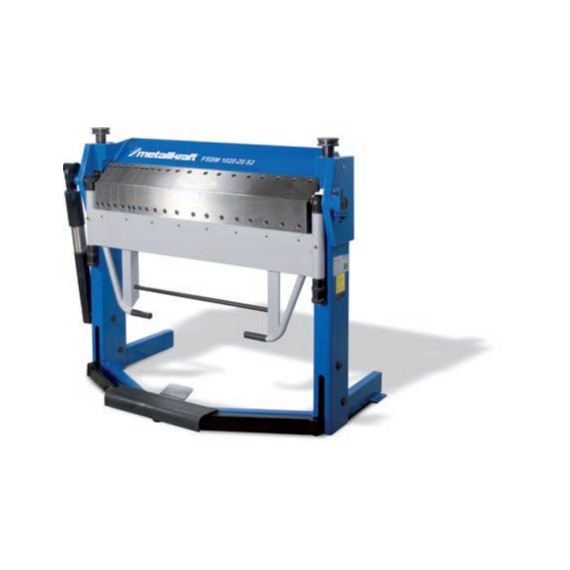

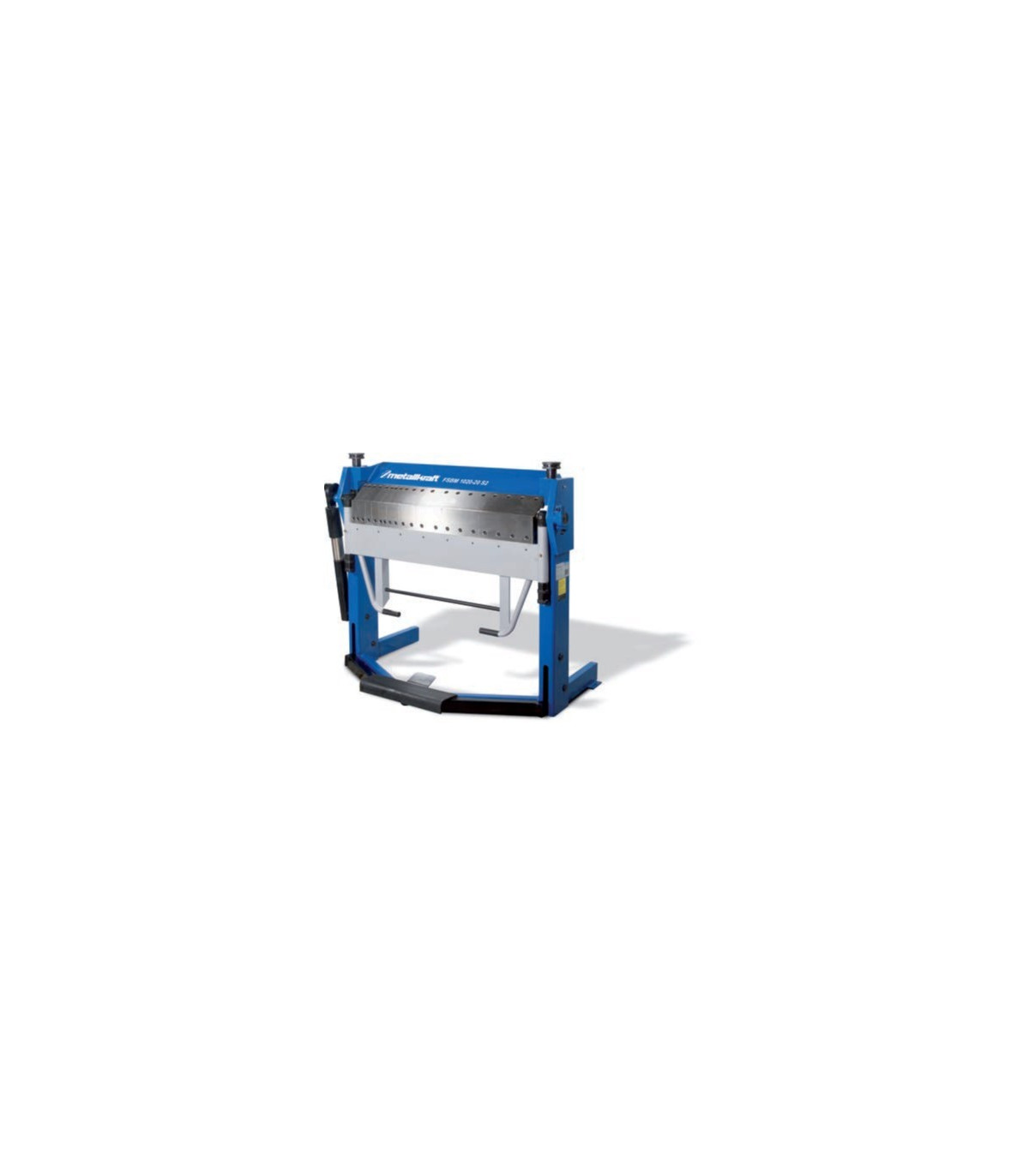

Manual sheet metal bending machine FSBM 1020-20 S2 METALLKRAFT

Manual sheet metal bending machine FSBM 1020-20 S2 METALLKRAFT. The manual sheet metal bending machine FSBM 1020-20 S2 METALLKRAFT allows bending of metal pieces with pedal support, leaving hands free. With a working width of 1020 mm and a maximum bending angle of 135°, it is ideal for repairs and DIY projects. Its powerful auxiliary cylinder and self-lubricating bearings facilitate the process. It includes thickness adjustment and a stop for bending angle, as well as segmented tools. Compact and robust, it weighs 325 kg, making it perfect for construction.

FEATURES

• Piece clamping via pedal, allowing both hands to be free for material supply.
• Different tool variants available: E, S2, HS2, and HSG
• The powerful auxiliary cylinder facilitates bending.
• Next step between the upper and lower cheeks of up to 25 mm
• Self-lubricating smooth bearings
• Clamping pressure of the upper beam via easily adjustable non-slip butterfly screws
• Material thickness adjustment via knurled screw
• Adjustable stop for bending angle
• With segmented sharpening tools, segmented bending strip, and continuous bed support

TECHNICAL SPECIFICATIONS

• Maximum working width 1020 millimeters
• Maximum bending angle 135°
• Segmentation 25-30-35-40-45-50-75-100-150-200-270 millimeters
• VPE 1

Bending capacity

• 235 N/mm² 2.0 millimeters
• Stainless steel 1.2 millimeters
• Explanation of stainless steel Tools with hardened upper part are required to bend VA
• Aluminum 2.4 millimeters

Dimensions and weights

• Approximate length 1350 millimeters
• Approximate width/depth 800 millimeters
• Approximate height 1130 millimeters
• Approximate weight. 325 kilograms

WHAT TYPE OF WORK IT IS SUITABLE FOR

The manual sheet metal bending machine FSBM 1020-20 S2 METALLKRAFT is suitable for:

• Bending metal pieces and structures
• Metal repairs
• Construction
• DIY projects
