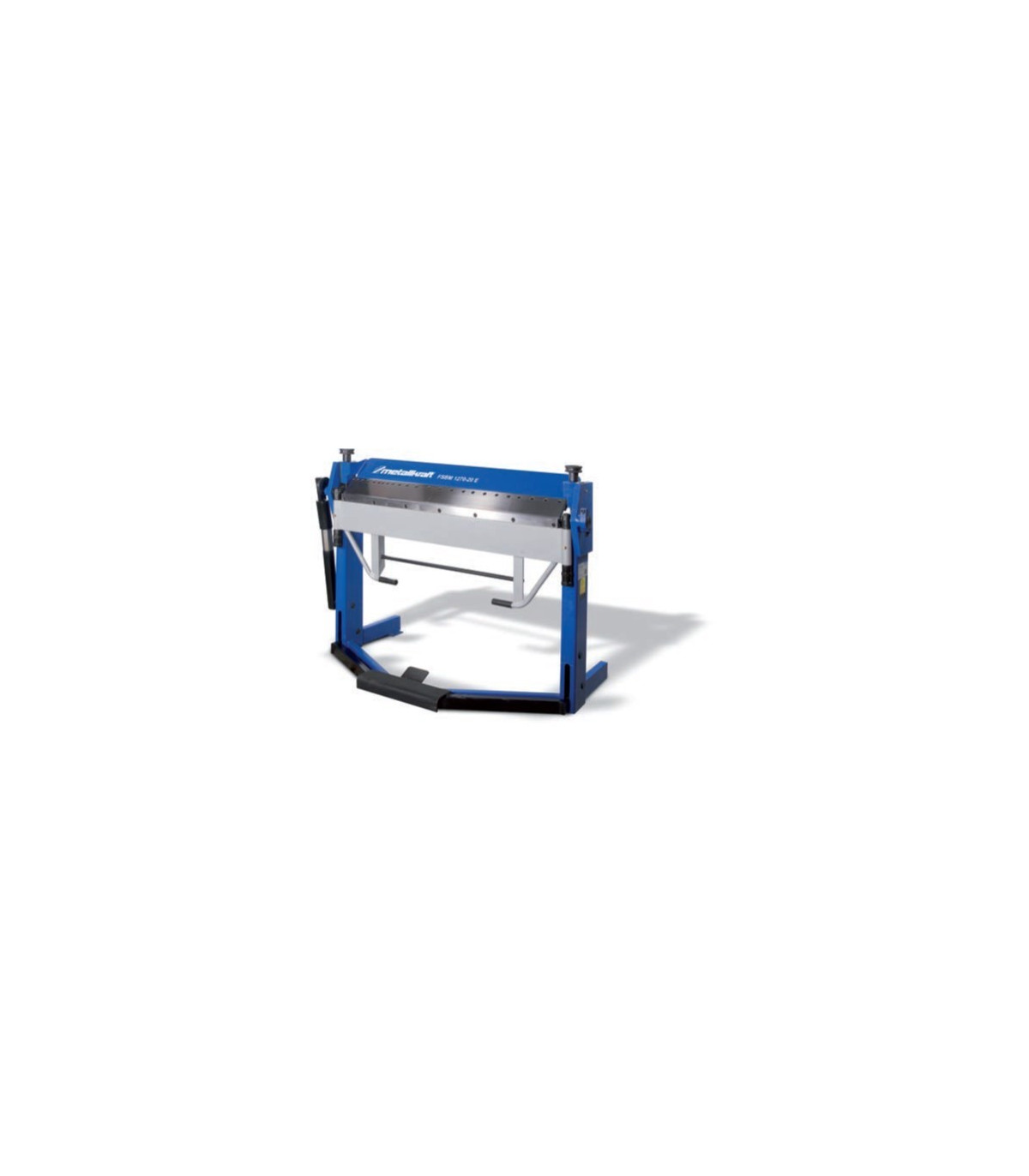

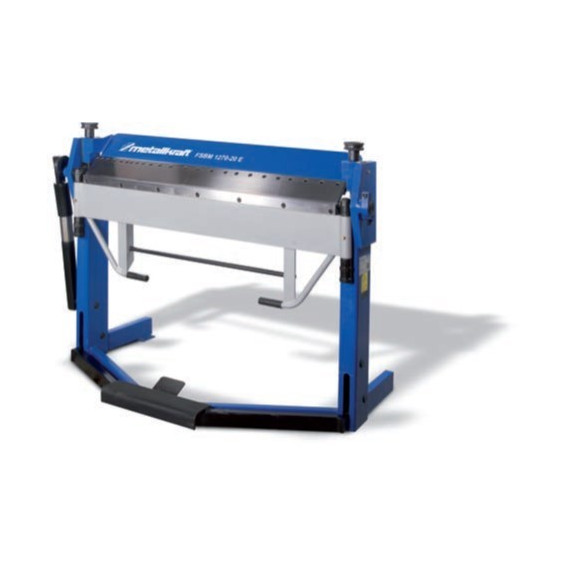

Manual sheet metal bending machine FSBM 1270-20 E METALLKRAFT

Manual sheet metal bender FSBM 1270-20 E METALLKRAFT. The manual sheet metal bender FSBM 1270-20 E METALLKRAFT allows bending metal pieces with pedal support, leaving hands free. With a working width of 1270 mm and a maximum bending angle of 135°, it is ideal for repairs, construction, and DIY projects. Its powerful auxiliary cylinder and self-lubricating bearings facilitate bending. It includes thickness adjustment and a stop for curvature angle. Capable of working with stainless steel and aluminum, it weighs 340 kg, making it perfect for industrial use.

FEATURES

• Piece clamping via pedal, allowing both hands to be free for material supply.
• Different tool variants available: E, S2, HS2, and HSG
• The powerful auxiliary cylinder facilitates bending.
• Next step between the upper and lower cheeks of up to 25 mm
• Self-lubricating smooth bearings
• Clamping pressure of the upper beam via easily adjustable non-slip butterfly screws
• Material thickness adjustment via knurled screw
• Adjustable stop for curvature angle
• Max. sheet thickness: Performance data based on material with tensile strength of 400 N/mm²
• Bending capacity for VA: factor 0.75
• Bending capacity for aluminum: factor 1.2
• Tools with hardened upper part are required to bend VA

TECHNICAL SPECIFICATIONS

• Maximum working width 1270 millimeters
• Maximum bending angle 135°
• Segmentation 25-30-35-40-45-50-75-100-150-200-250-270 millimeters
• VPE 1

Bending capacity

• 235 N/mm² 2.0 millimeters
• Stainless steel 1.2 millimeters
• Explanation of stainless steel Tools with hardened upper part are required to bend VA
• Aluminum 2.4 millimeters

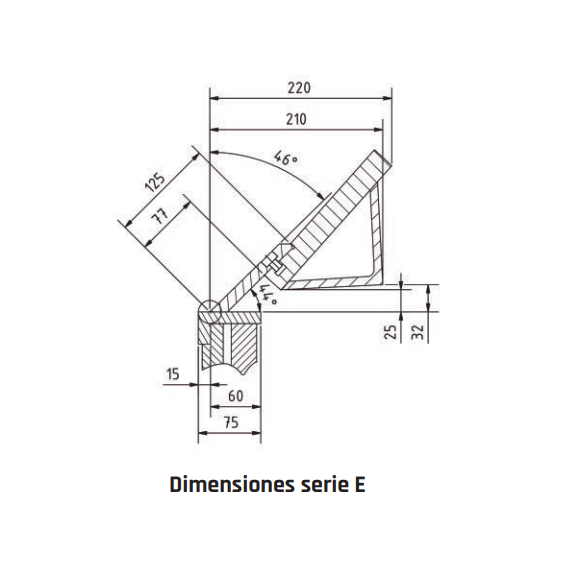

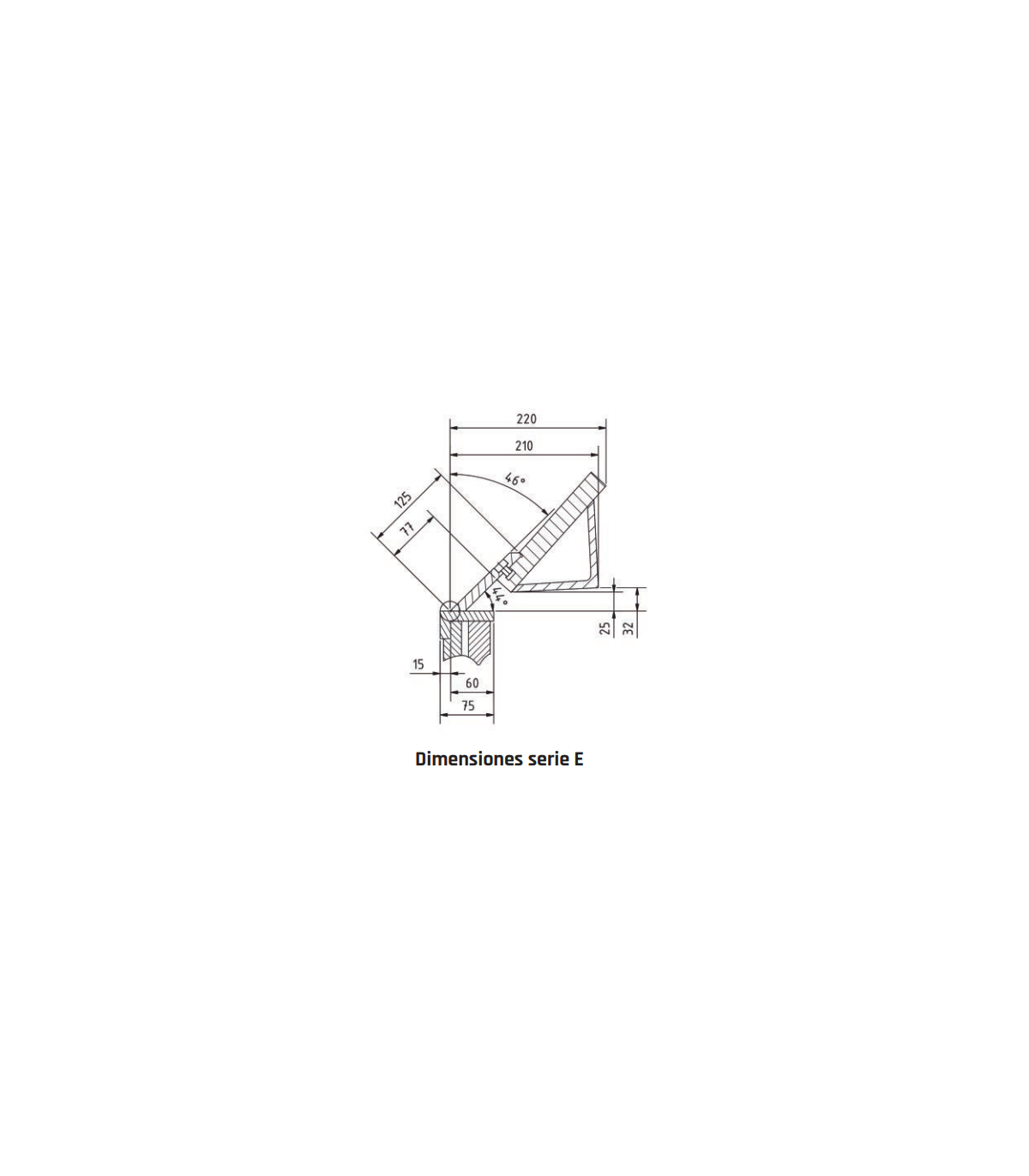

Dimensions and weights

• Approximate length 1600 millimeters
• Approximate width/depth 800 millimeters
• Approximate height 1130 millimeters
• Approximate weight. 340 kilograms

WHAT TYPE OF WORK IS IT SUITABLE FOR

The manual sheet metal bender FSBM 1270-20 E METALLKRAFT is suitable for:

• Bending metal pieces and structures
• Metal repairs
• Construction
• Industrial use
• DIY projects
