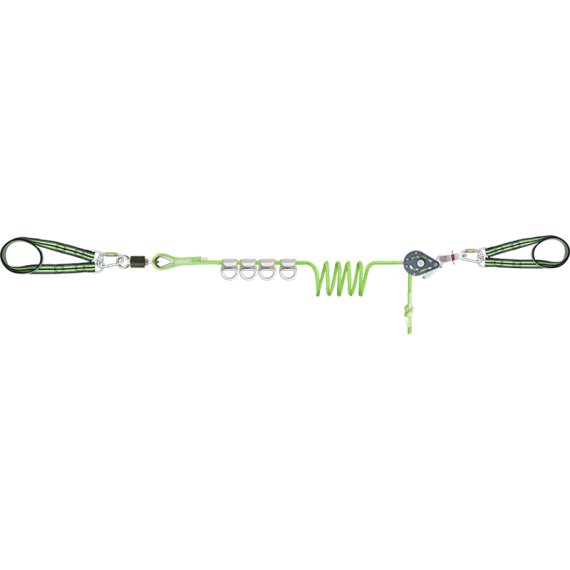

Temporary horizontal lifeline for 4 users, with 4 CROSS LINE 1 sliders KRATOS SAFETY

The CROSS LINE 1 from Kratos Safety is a temporary horizontal lifeline designed to provide a safe and efficient anchor for up to four users simultaneously. Thanks to its four sliders, workers can move along the lifeline without the need to unhook, which speeds up tasks and reduces the risk of accidents. Its adjustable tension system ensures optimal safety, and its modular design facilitates installation and adaptation to different work environments.

FEATURES

• Braided rope (16 mm diameter) equipped with a specifically designed tensioner that allows adjusting the tension of the lifeline between two supports.
• The tensioner is equipped with a tension indicator.
• It is equipped with a specifically designed brass swivel link that prevents the rope from twisting during use, and has a manufactured end on the other side to prevent the rope from accidentally coming out of the tensioner.

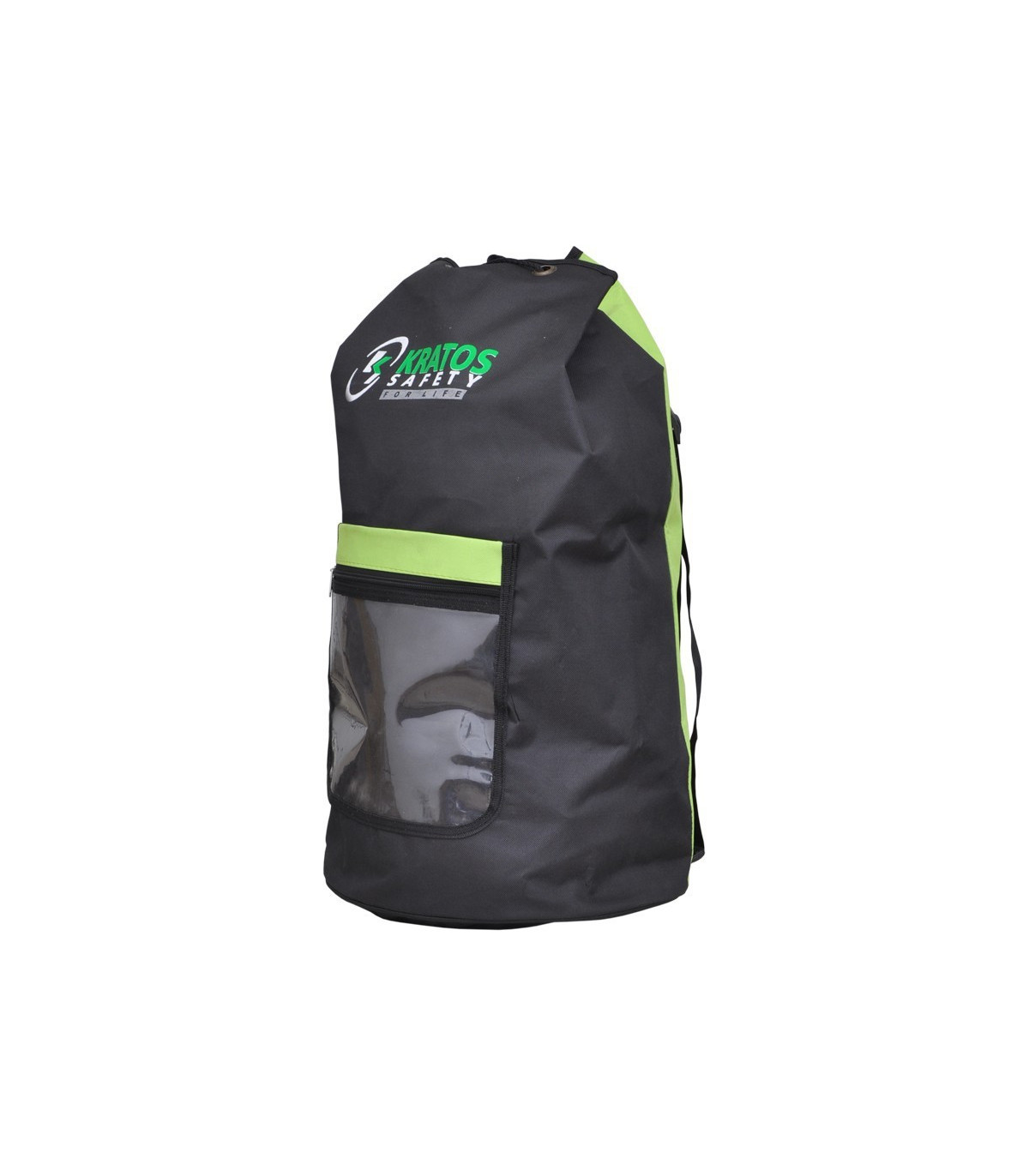

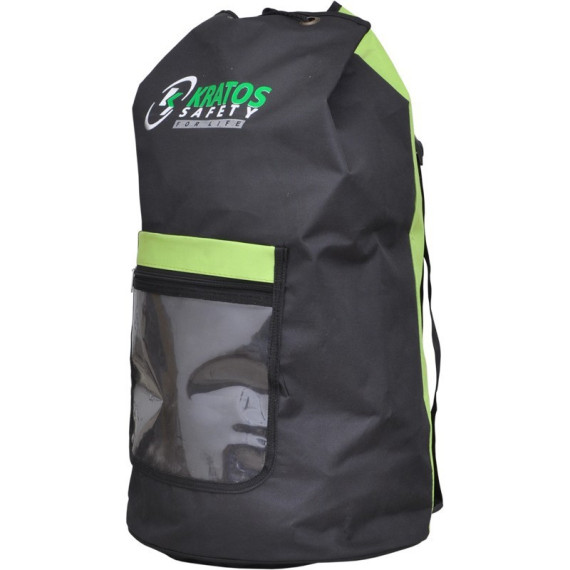

• Supplied with 2 automatic triple-action locking steel carabiners with a 21 mm opening (ref. FA 50 301 23), 2 anchoring straps (length 2 m), and a transport backpack FA 90 107 00.
• Includes 4 steel sliders for the attachment of the fall protection system for each user. They allow users to cross without having to unhook from the lifeline for greater safety.
• Weight: 12.03 kg.

Materials:

• Tensioner: Aluminum and stainless steel
• Swivel link: Stainless steel
• Connectors: Steel

APPLICATIONS

Temporary and reusable lifeline specially designed to provide a safe and adapted anchor for 1, 2, 3, or 4 users at the same time while working.

TECHNICAL DATA

• Standard(s): EN 795:2012 Type C & TS 16415:2013 Type C
• Material: Braided Rope of "American" Type Diameter 16 mm
• PPE / NON-PPE Non-PPE
• Dimensions: Max Length: 25 m
• Other Attachment Points: 4 Sliders
• Connector: Brass Swivel Link

STANDARDS

- The regulation EN 795:2012 Type C refers to anchorage devices used for fall protection in work at height. Specifically, Type C covers anchorage systems designed to be installed on fixed structures, such as roofs or walls, and that allow the connection of personal protective equipment (PPE) to prevent falls.

- TS 16415:2013 Type C: This standard complements EN 795 and provides additional requirements for the use of anchorage devices that are used in combination with fall protection systems.

USE

There is no good fall protection system without a good anchor point. Whatever the type of intervention to be carried out, whether temporary or regular, it is essential to choose the anchor point well and ensure that the receiving structure (building, metal structure, post) is strong enough.

HOW TO CHOOSE

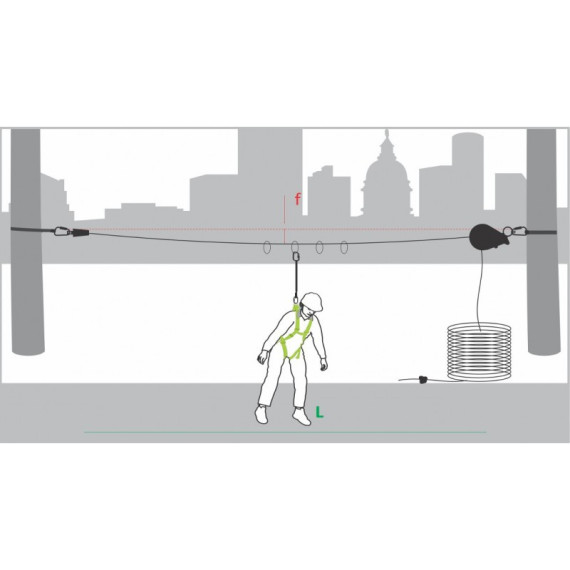

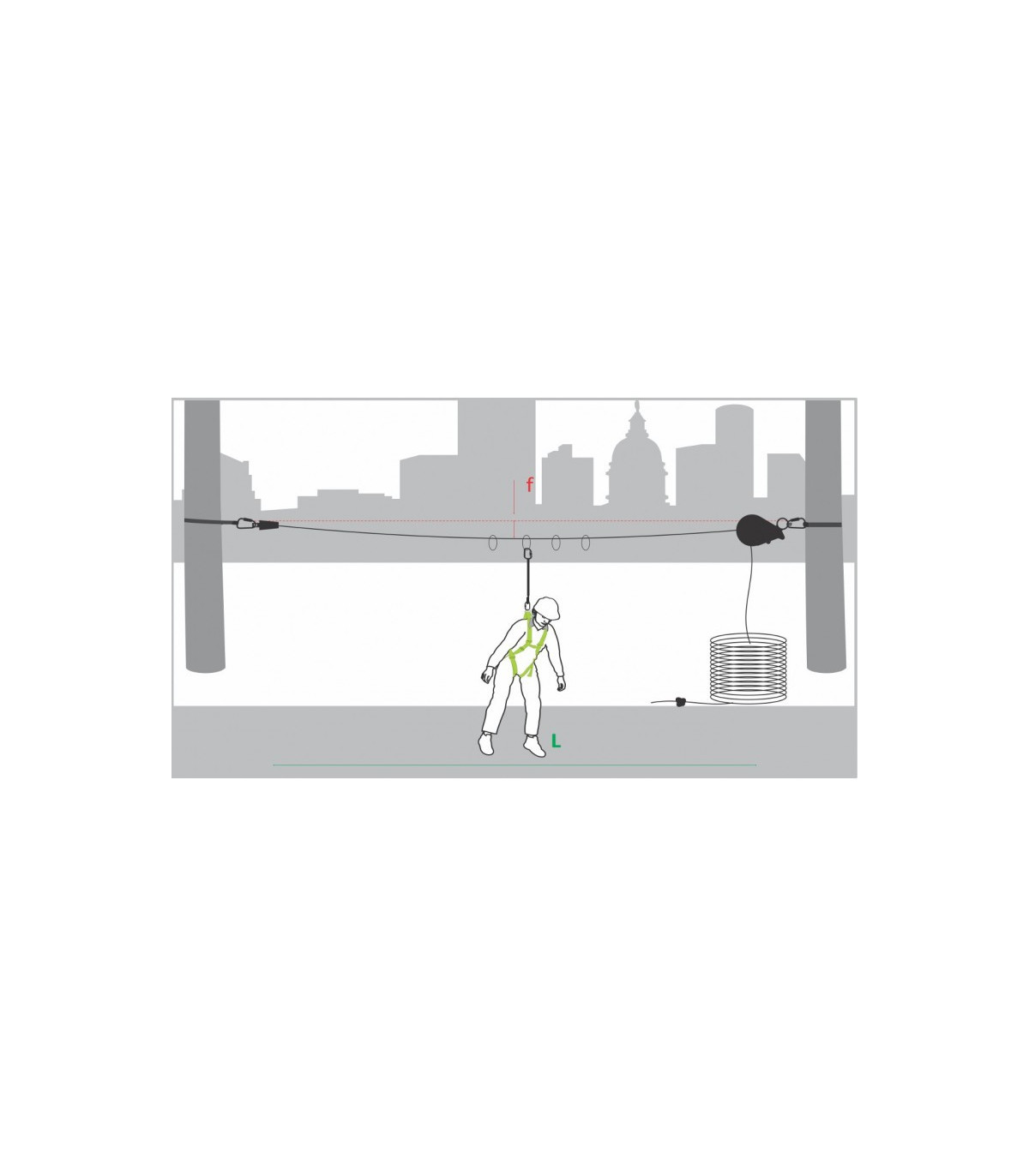

The anchor point is undoubtedly the most delicate element of a fall protection system that must be chosen to ensure optimal safety. When choosing the anchor point, it is necessary first to determine where to install the anchor point. To do this, it is necessary to consider the following aspects: static resistance of the anchor point: > 10 kN installation height: high enough in relation to the first potential obstacle in case of a fall (see fall factor diagram) situation: vertically from the workstation to avoid risks associated with the pendulum effect (see pendulum effect diagram)
