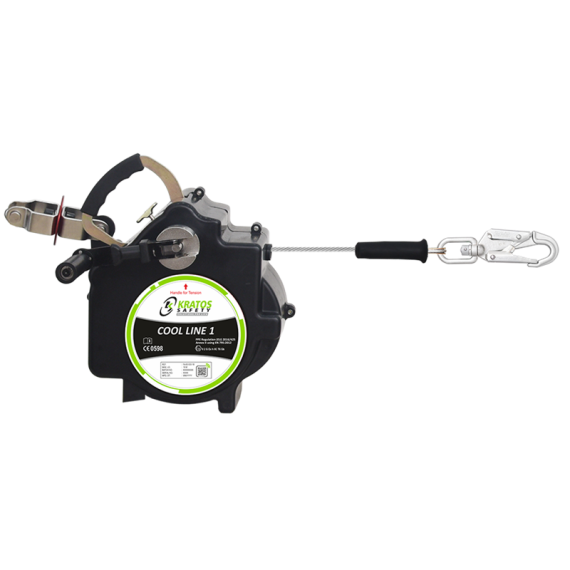

Temporary horizontal retractable cable lifeline, maximum length of 18 m COOL LINE 1 KRATOS SAFETY

The COOL LINE 1 horizontal temporary retractable lifeline from Kratos Safety is a fall protection system designed for work at height that requires restricted mobility. With a maximum length of 18 meters, this system features a high-strength galvanized steel cable and an automatic retraction mechanism. The integrated energy absorber limits impact forces in the event of a fall, complying with EN 795:2012 regulations. Its compact and lightweight design facilitates transport and installation in different work environments.

FEATURES

• Retractable lifeline, max. length of 18 m, extremely easy to install, lightweight, ready for use.
• Easy to uninstall and reinstall at a new site thanks to the integrated winch.
• High-strength polymer casings with a transport handle that integrates a tension indicator.
• An integrated energy absorption system limits the impact force on the structure.
• The cable is equipped with a connector with a swivel shackle to prevent twisting in the line.
• Can be used by 1 or 2 people at the same time.
• Can be used in ATEX Atmosphere (zone 1).
• Galvanized steel cable with a diameter of 6 mm.
• Weight: 14.39 kg.
• Material:
• Casings: polymer.
• Cable: steel.
• Connectors: steel.
• Compliance: PPE Regulation 2016/425 (EU) Annex II according to EN 795:2012, TS16415:2013 Type C.
• Static strength according to EN 795:2012: 13 kN.
• Tensile strength: 22 kN.

TECHNICAL DATA

• Standard(s): PPE Regulation 2016/425 (EU) Annex II According to EN 795:2012
• PPE / NON-PPE PPE
• Protection: Protection For ATEX Risk Zone
• Connector: 1 Steel Snap Hook With Swivel And Fall Indicator, Automatic Locking Opening 21mm - 1 Steel Screw-Locking Karabiner Opening 17mm

STANDARDS

- The regulation EN 795:2012 Type C refers to anchorage devices used for fall protection in work at height. Specifically, Type C covers anchorage systems designed to be installed on fixed structures, such as roofs or walls, that allow the connection of personal protective equipment (PPE) to prevent falls.

- TS 16415:2013 Type C: This standard complements EN 795 and provides additional requirements for the use of anchorage devices that are used in combination with fall protection systems.

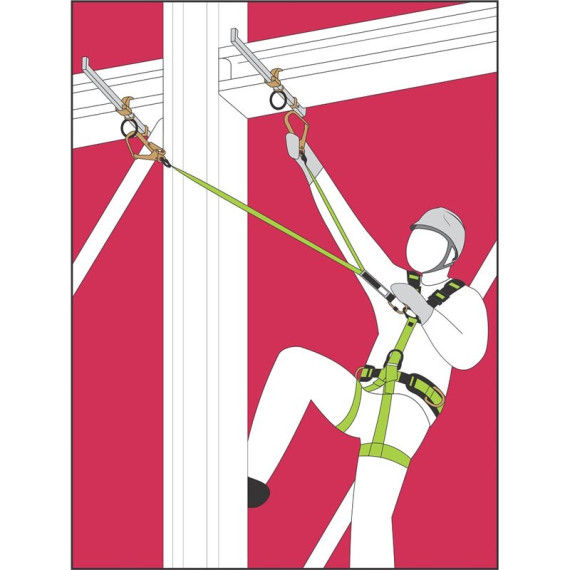

APPLICATIONS

• Work on poles
• Work on rocky walls
• Work on lifts
• Window cleaning
• Rope access technician
• Rescuer
• Roofer-sealing technician
• Antenna technician, telecommunications
