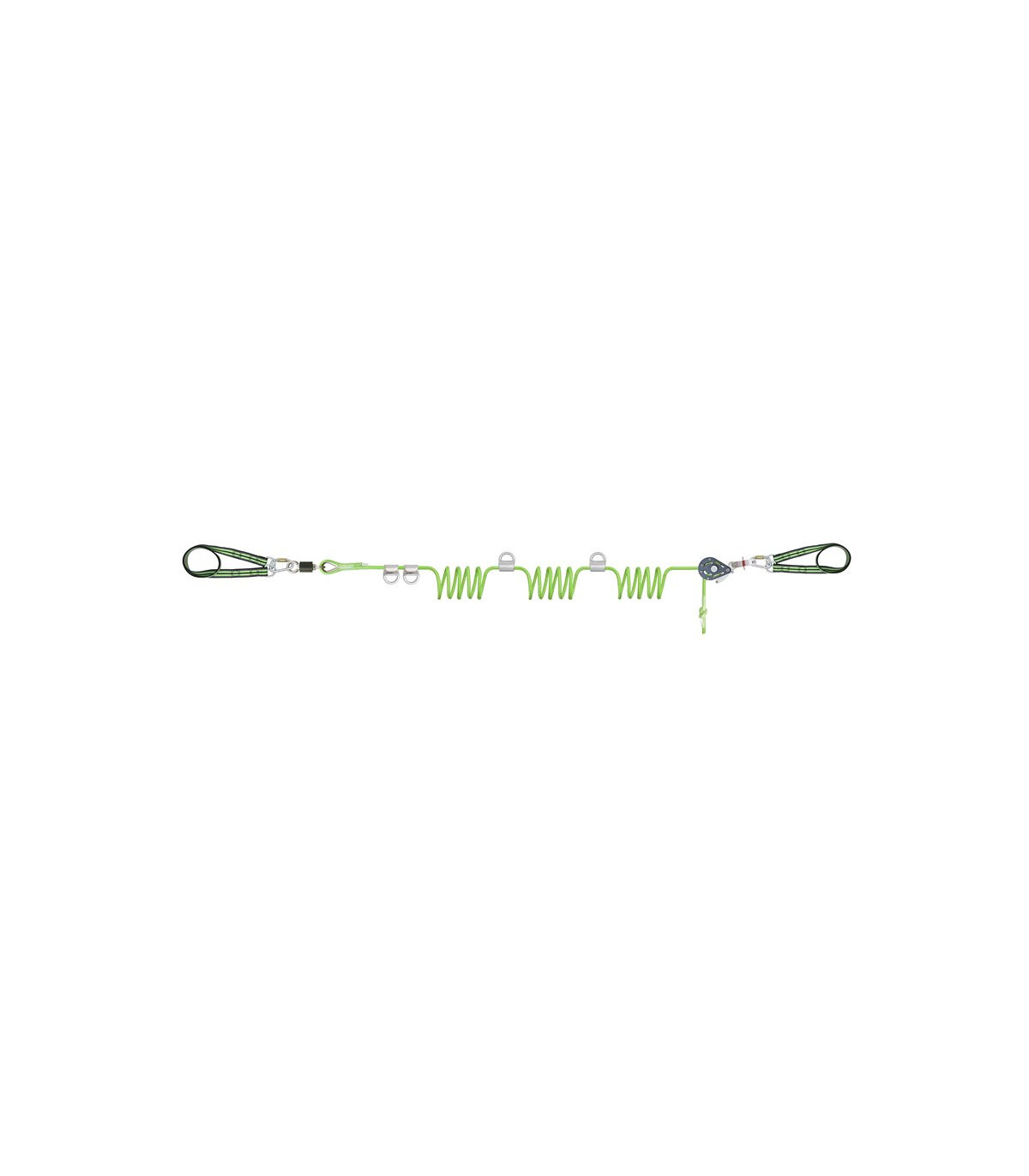

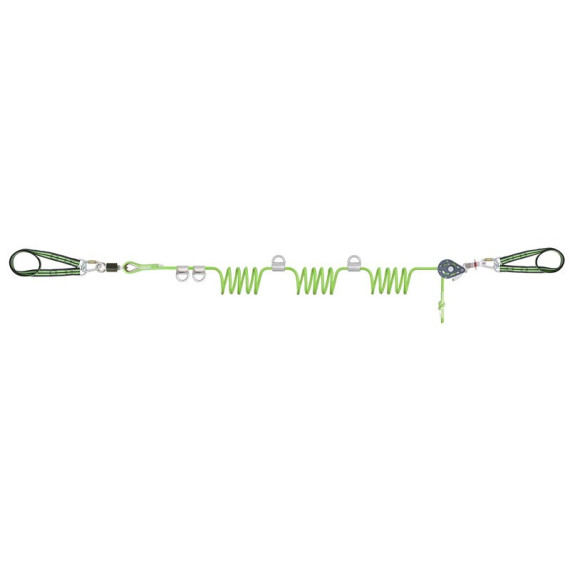

Temporary horizontal lifeline for 4 users, with 4 CROSS LINE 2 sliders KRATOS SAFETY

The CROSS LINE 2 temporary horizontal lifeline from Kratos Safety is a collective protection system designed to secure up to four workers simultaneously. It consists of a high-strength galvanized steel cable and four independent sliders that allow for smooth mobility along the line. The system incorporates energy absorbers integrated into each slider to limit impact forces in the event of a fall, complying with the EN 795:2012 standards. Its modular design facilitates installation and adaptation to different work configurations.

FEATURES

• Braided rope (16 mm diameter) equipped with a specifically designed tensioner that allows adjustment of the lifeline tension between two supports.
• The tensioner is equipped with a tension indicator.
• It is equipped with a specifically designed stainless steel swivel link that prevents rope twisting during use, and has a manufactured end on the other side to prevent the rope from accidentally coming out of the tensioner.

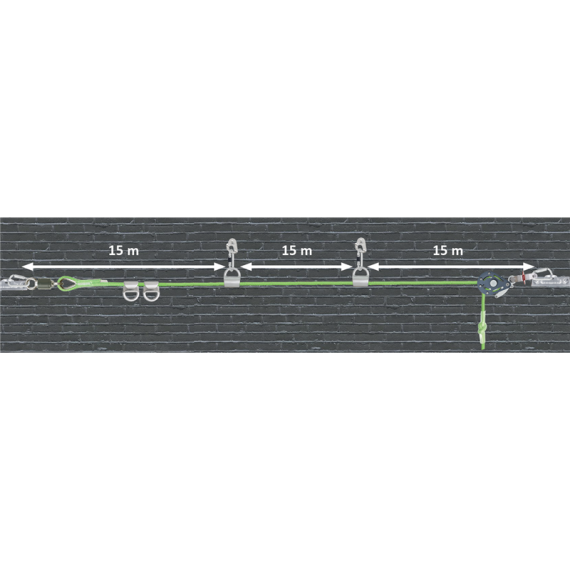

• Includes 4 steel sliders for connecting the fall protection system for each user. They allow users to cross without having to disconnect from the lifeline, for greater safety. In the case of an installation longer than 30 m, 1 to 2 sliders must be used as intermediate pieces.
• Supplied with 2 automatic triple-action locking steel carabiners with a 21 mm opening (ref. FA 50 301 23), 2 anchoring straps (length 2 m), and a transport backpack FA 90 107 00.
• Compliance: Regulation (EU) 2016/425 Annex II using EN 795:2012, TS 16415:2013 Type C.

APPLICATIONS

Temporary and reusable lifeline specially designed to provide a safe and adapted anchorage for 1, 2, 3, or 4 users at a time (depending on the installed length) while they work.

TECHNICAL DATA

• Material:
• Tensioner: Aluminum and stainless steel
• Swivel link: Stainless steel
• Connectors: Steel
• Weight: 14.11 kg.
• Compliance: Regulation (EU) 2016/425 Annex II using EN 795:2012, TS 16415:2013 Type C.

STANDARDS

- The regulation EN 795:2012 Type C refers to anchorage devices used for fall protection in work at height. Specifically, Type C covers anchorage systems designed to be installed on fixed structures, such as roofs or walls, and that allow the connection of personal protective equipment (PPE) to prevent falls.

- TS 16415:2013 Type C: This standard complements EN 795 and provides additional requirements for the use of anchorage devices that are used in combination with fall protection systems.
