Adjustable for universal milling machine

Universal classics with very versatile articulated arms and immediate placement. It protects the operator from direct contact with the rotation axis and the vertical projection of chips and coolant.

· Protects the operator from direct contact with the rotation axis and the vertical projection of chips and coolant.
· Anchored at the top of the base with a screen support with a double opening system: 1 = horizontal opening of the screen around its rotation axis (point 3) - 2 = total tilt of the shelter out of reach of the work (topic 4)
· Complete double safety micro switch.
· Notes: Specify the mounting side by adding the suffix: D = Right - I = Left.
· Complementary accessories: PMG 60/185-PBA 01/190-PBA 01/325-PBA 02/325.

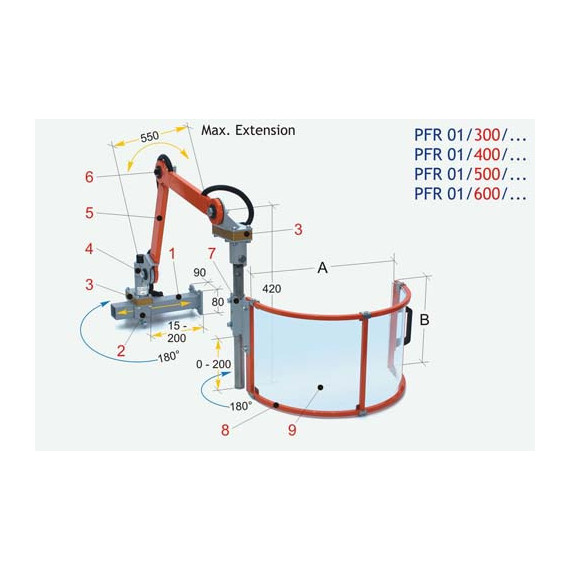

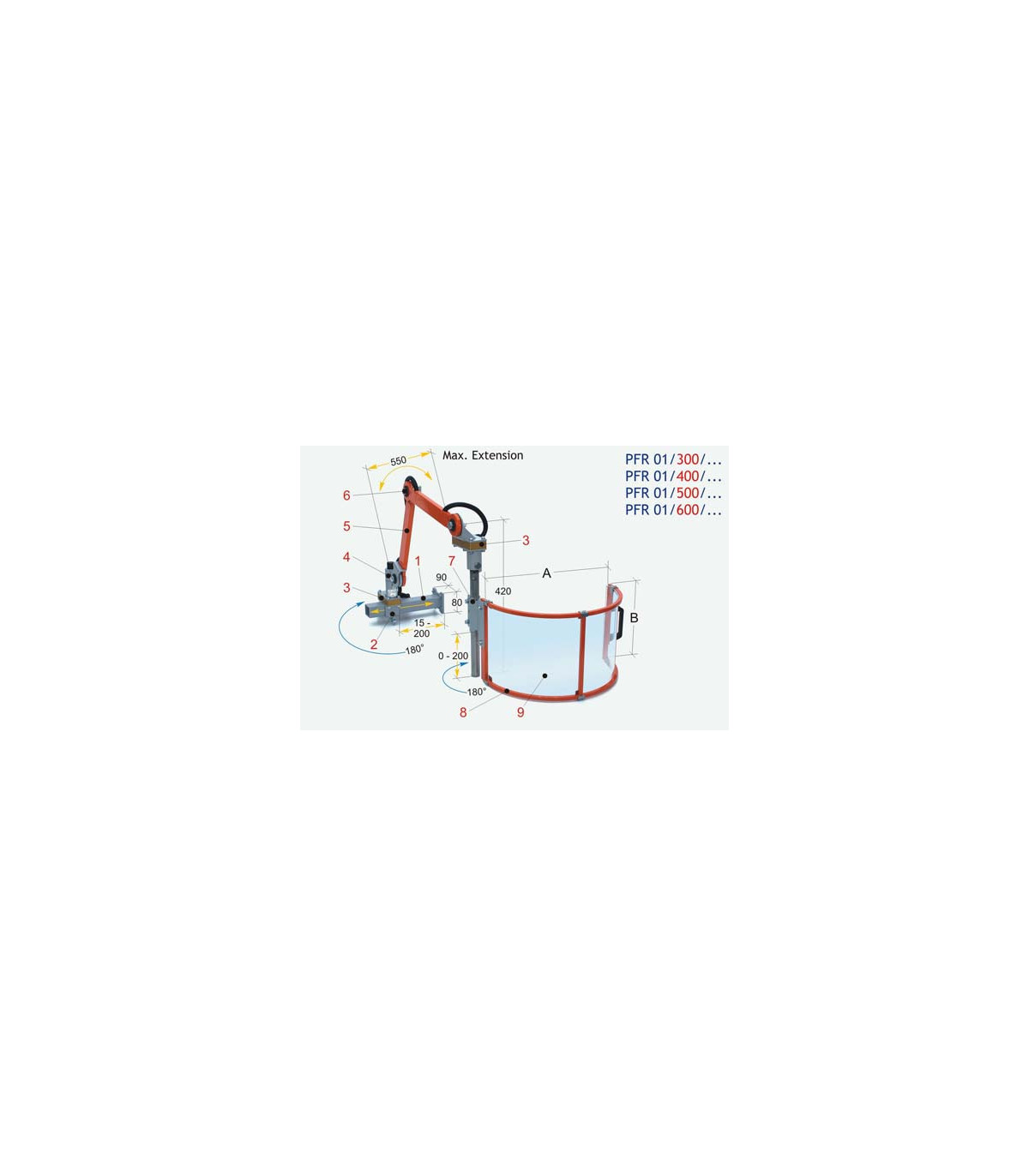

1 Leveling anchor bracket in tubular steel.
2 Adjustable depth safety protection support.
3 Main safety switch box. 180° rotation. N. 2 NC contacts.
4 Horizontal adjustment clamp.
5 Articulated arms in tubular steel.
6 Friction joint with friction disc.
7 Clamp for screen connection in pressed steel.
8 Screen structure in tubular steel.
9 Thermoformed screen in impact-resistant and oil-resistant plastic.
