Radial drill guard

Element equipped with vertical screen adjustment with a telescopic arm system. Suitable for use on large drills and radial drills.

· Protects the operator from direct contact with the parts in front of the spindle rotation and the projection of chips and coolant. Anchored on the left side of the machine.
· The screen is adjustable in height semi-octagonal, with two different systems: on the screen, the mounting bar can be adjusted through the micro-foot (point 4). The screen is directly controlled by the bar (point 5).
· Compatibility with a screen terminal can be placed inside (point 7) or outside (point 8), allowing a wide range of horizontal adjustment.
· Complete with safety micro switch.

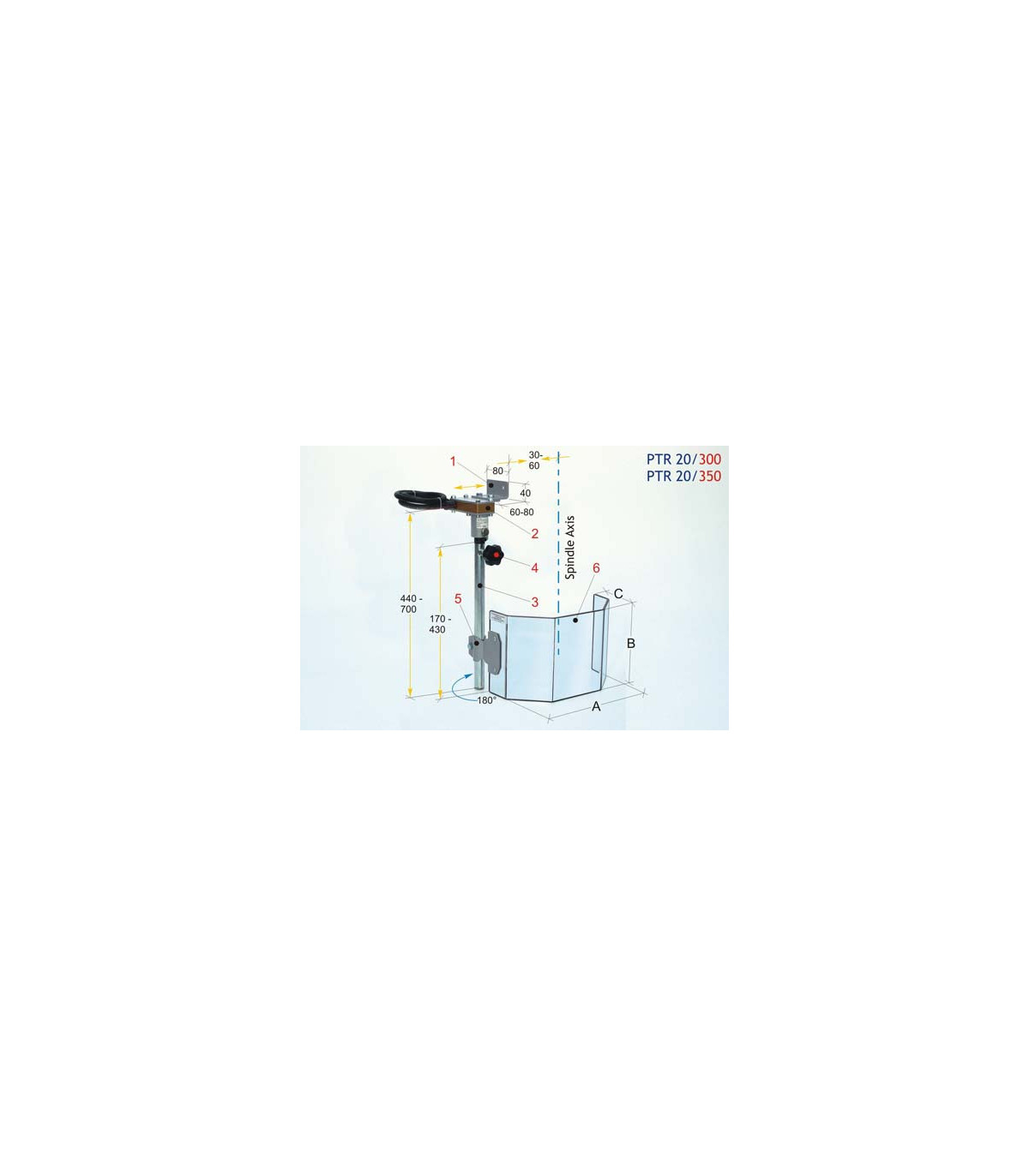

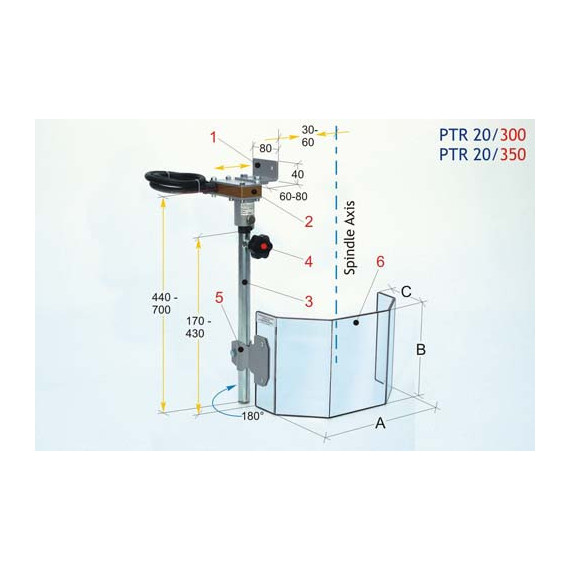

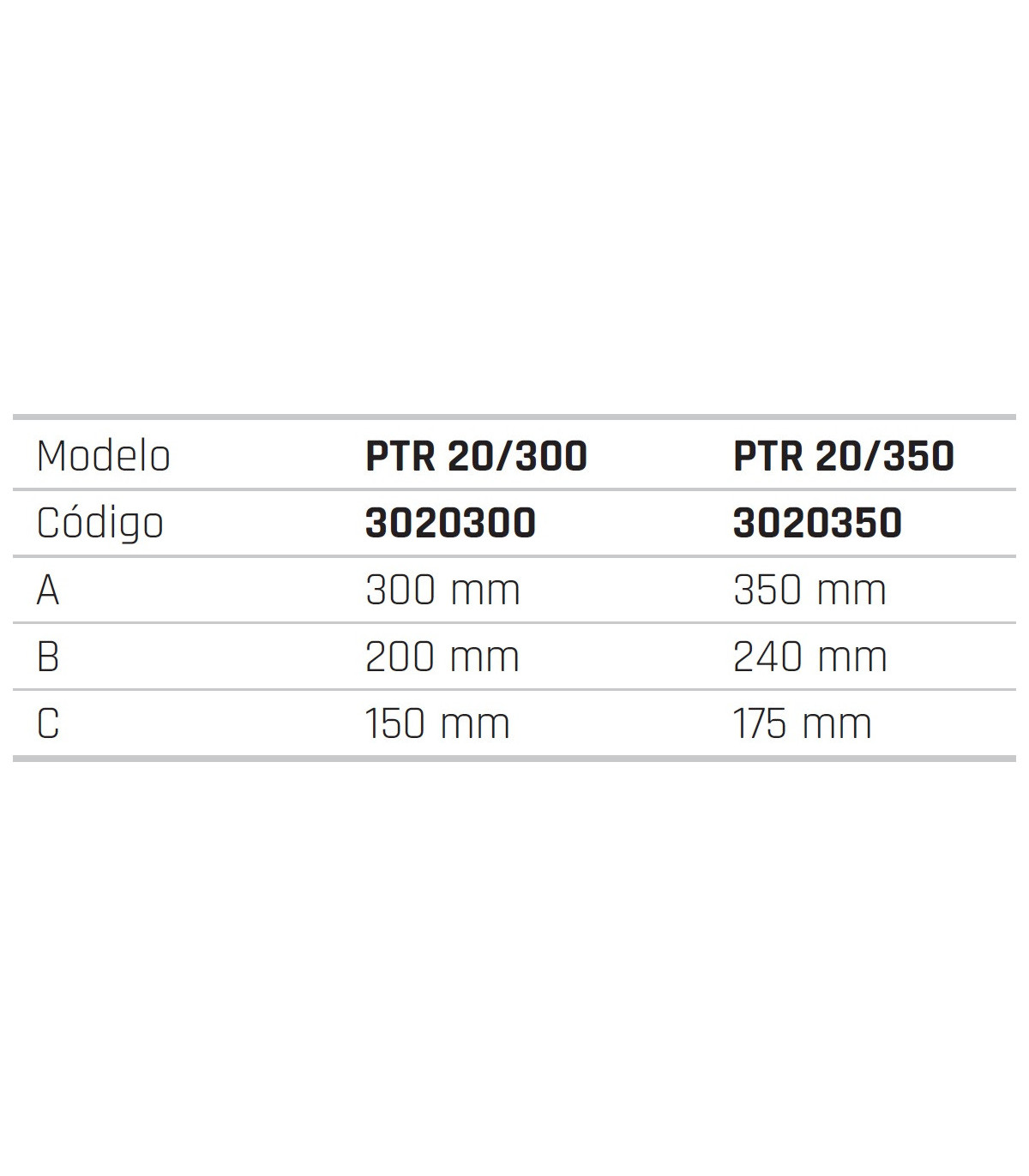

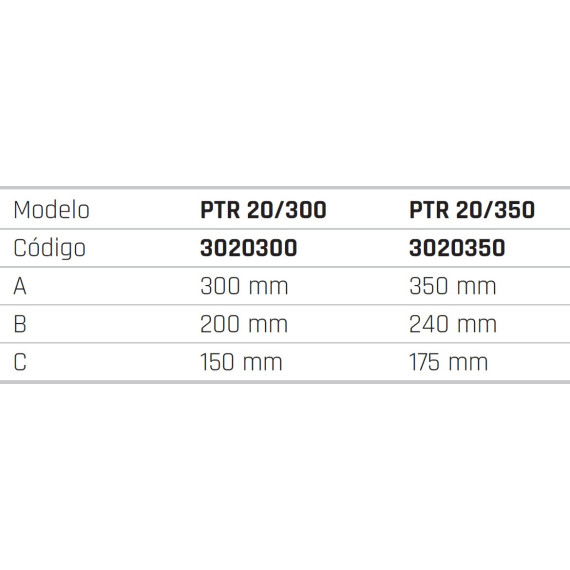

1 Steel pressed anchoring bracket.
2 Main safety switch box. 180° rotation. No. 2 NC contacts.
3 Telescopic vertical arm screen support in tubular steel.
4 Release button for the screen arm from the internal hub.
5 Clamp with screen release screw from the telescopic arm.
6 Semi-octagonal screen in thick polycarbonate.
