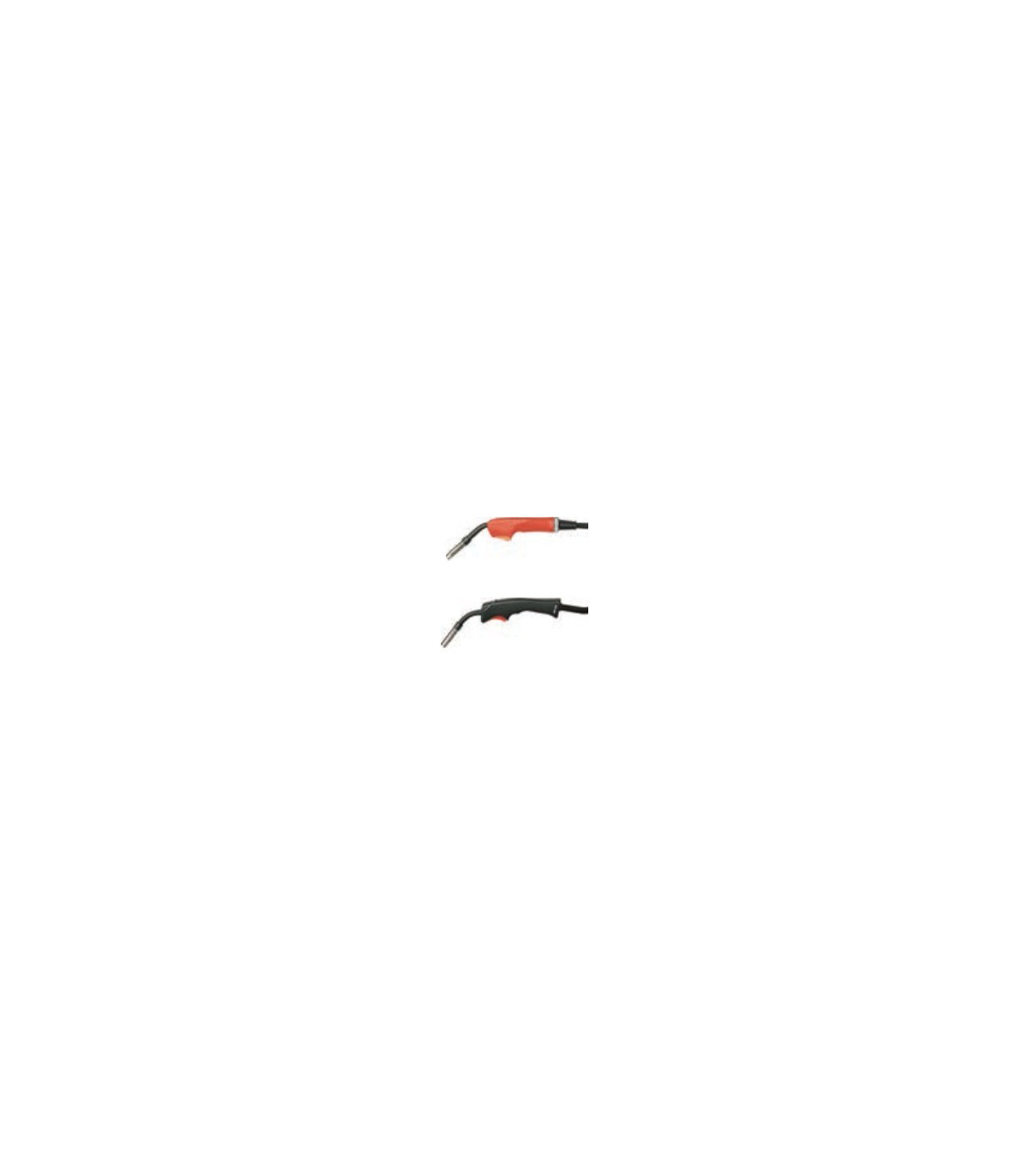

Torch with 3m cable for TELMIG MT15 TELWIN

Torch with 3m cable for TELMIG MT15 TELWIN. MT15 torch for MIG-MAG welding with continuous wire and 3-meter cable with EURO connector. Air-cooled, it can work with a maximum current of 150A MIX / 180A CO2 @60%. Supplied with 0.8 mm M6 contact tip.

FEATURES

MIG MT15 torch with 3m cable (EURO connection).

Air cooling.

Max current: 150A MIX / 180A CO2 @60%.

TECHNICAL DATA

Cable length: 3m

Cable section: 16 mm²

Maximum current: 150A mix / 180A co2 @60% A

Connection: Euro Connector

Remote control: No

Standard: EN 60974-7

Weight: 1.560 kg

NORMS

- EN 60974-7: The main objective of EN 60974-7 is to ensure that these components are safe, efficient, and compatible with each other, minimizing the risk of electrical or mechanical failures during use. The standard establishes specific criteria for construction, design, testing, and necessary documentation, ensuring that the equipment can operate under safe and effective conditions.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Torch with 3m cable for TELMIG MT15 TELWIN is suitable for:

• Mastermig 220/2
• Technomig 215
• Technomig 180 EURO
• Technomig 210
• Telmig 195
• Telmig 251 Premium 161/200E
